Door Courtesy Switch Circuit: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. READ VALUE USING TECHSTREAM
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Main Body / Data List.
    5. Read the display on the Techstream.
      MAIN BODY

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      RR Door Courtesy SW Rear door courtesy light switch RH signal/ON or OFF ON: Rear door LH or RH open
      OFF: Rear door LH and RH closed      		 -
      RL Door Courtesy SW Rear door courtesy light switch LH signal/ON or OFF ON: Rear door LH or RH open
      OFF: Rear door LH and RH closed      		 -
      Back Door Courtesy SW Back door courtesy switch signal/ON or OFF ON: Back door open
      OFF: Back door closed      		 -
      FR Door Courtesy Front door courtesy light switch RH signal/ON or OFF ON: Front door RH open
      OFF: Front door RH closed      		 -
      FL Door Courtesy Front door courtesy light switch LH signal/ON or OFF ON: Front door LH open
      OFF: Front door LH closed      		 -

      OK

      Normal conditions listed above are displayed.

      Result

      Result Proceed to
      OK A
      Front door courtesy light switch LH or RH does not operate B
      Rear door courtesy light switch LH or RH does not operate C
      Back door courtesy switch does not operate D

    B → See step   2

    C → See step   5

    D → See step   7

    A → See step   12

  2. INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH OR RH)
    1. Remove the front door courtesy light switch assembly. Refer to COMPONENTS .

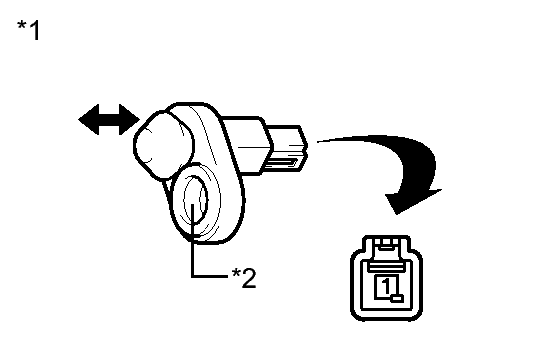

      Fig 1: Checking Front Door Courtesy Light Switch Assembly (For Driver Side) Operation
      GTY226998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      1 - Switch body Pushed 10 kΩ or higher
      1 - Switch body Not pushed Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Component without harness connected
      (Front Door Courtesy Light Switch Assembly)
      *2 Switch Body

    NG → See step   9

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - SWITCH)
    1. for Front LH
      1. Disconnect the 2D instrument panel junction block assembly connector.
      2. Disconnect the R6 front door courtesy light switch assembly LH connector.
      3. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        2D-35 - R6-1 Always Below 1 Ω
        2D-35 - Body ground Always 10 kΩ or higher
    2. for Front RH
      1. Disconnect the 2D instrument panel junction block assembly connector.
      2. Disconnect the S5 front door courtesy light switch assembly RH connector.
      3. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        2D-36 - S5-1 Always Below 1 Ω
        2D-36 - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
    1. for Front LH

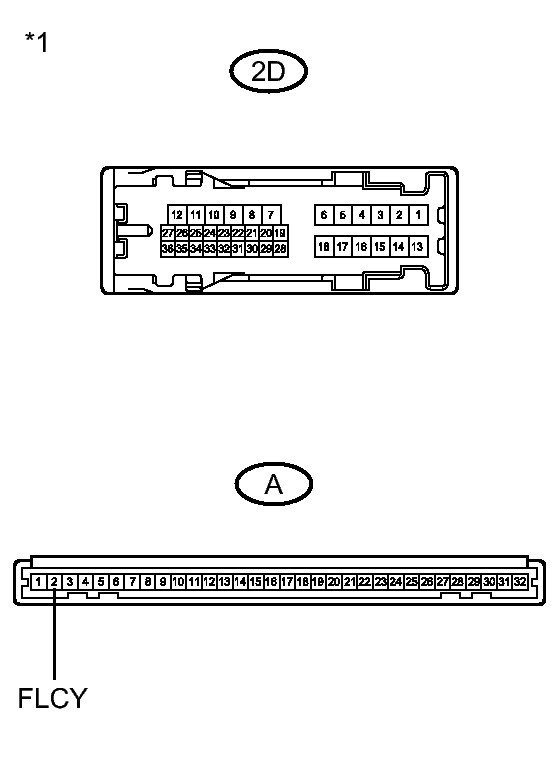

      Fig 2: Identifying Instrument Panel Junction Block Assembly (For Front LH)
      GTY210838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the instrument panel junction block assembly.
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        2D-35 - A-2 (FLCY) Always Below 1 Ω
        2D-35 - Body ground Always 10 kΩ or higher
        TEXT IN ILLUSTRATION

        *1 Component without harness connected
        (Instrument Panel Junction Block Assembly)
    2. for Front RH

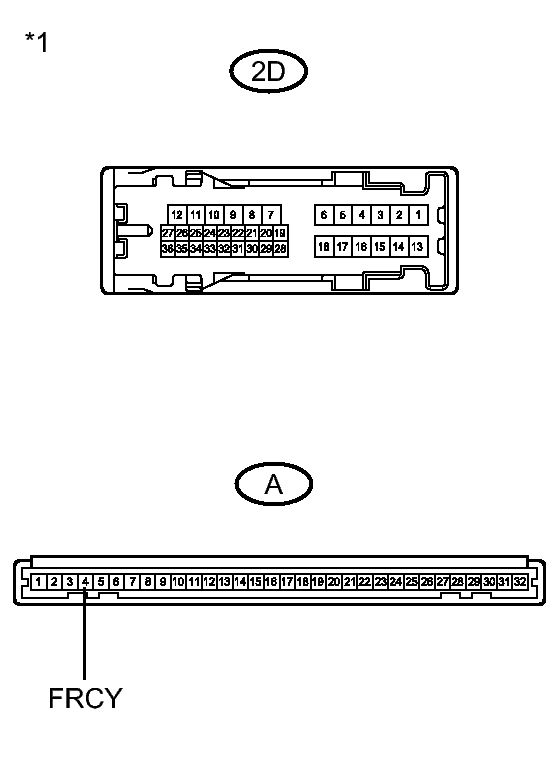

      Fig 3: Identifying Instrument Panel Junction Block Assembly (For Front RH)
      GTY231488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the instrument panel junction block assembly.
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        2D-36 - A-4 (FRCY) Always Below 1 Ω
        2D-36 - Body ground Always 10 kΩ or higher
        TEXT IN ILLUSTRATION

        *1 Component without harness connected
        (Instrument Panel Junction Block Assembly)

    NG → REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

    OK → See step   13

  5. INSPECT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH OR RH)
    1. Remove the rear door courtesy light switch assembly. Refer to COMPONENTS .
      Fig 4: Checking Front Door Courtesy Light Switch Assembly (For Driver Side) Operation
      GTY226998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      1 - Switch body Pushed 10 kΩ or higher
      1 - Switch body Not pushed Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Component without harness connected
      (Rear Door Courtesy Light Switch Assembly)
      *2 Switch Body

    NG → See step   10

    OK: Go to next step

  6. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - REAR COURTESY LIGHT SWITCH)
    1. for Rear LH
      1. Disconnect the L7 main body ECU (multiplex network body ECU) connector.
      2. Disconnect the R13 rear door courtesy light switch assembly LH connector.
      3. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        L7-6 (LRCY) - R13-1 Always Below 1 Ω
        L7-6 (LRCY) - Body ground Always 10 kΩ or higher
    2. for Rear RH
      1. Disconnect the L7 main body ECU (multiplex network body ECU) connector.
      2. Disconnect the S10 rear door courtesy light switch assembly RH connector.
      3. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        L7-6 (LRCY) - S10-1 Always Below 1 Ω
        L7-6 (LRCY) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   13

  7. INSPECT BACK DOOR LOCK ASSEMBLY
    1. Remove the back door lock assembly. Refer to COMPONENTS .

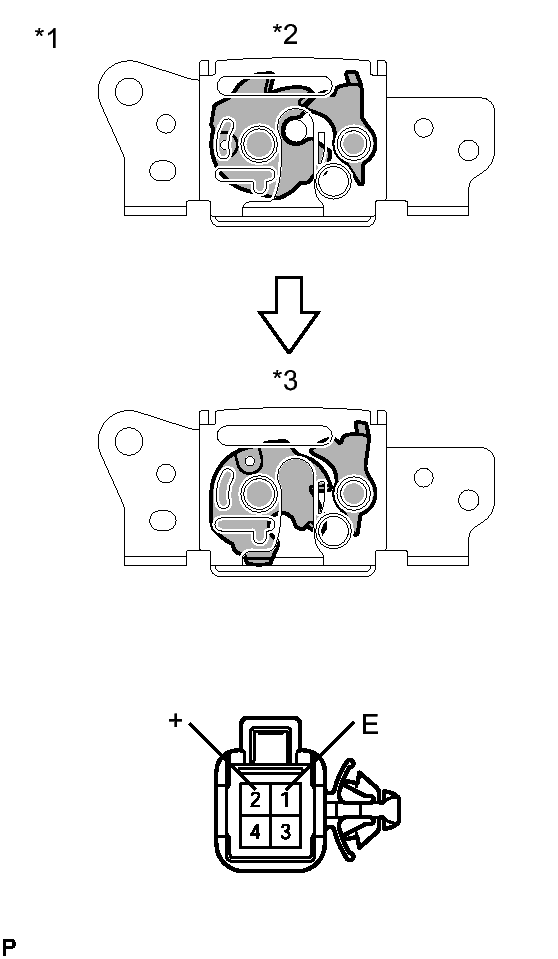

      Fig 5: Inspecting Back Door Lock Assembly
      GTY216748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      1 (E) - 2 (+) Locked 10 kΩ or higher
      1 (E) - 2 (+) Unlocked Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Component without harness connected
      (Back Door Lock Assembly)
      *2 Lock
      *3 Unlock

    NG → See step   11

    OK: Go to next step

  8. CHECK HARNESS AND CONNECTOR (BACK DOOR LOCK - MAIN BODY ECU)
    1. Disconnect the L7 main body ECU (multiplex network body ECU) connector.
    2. Disconnect the R18 back door lock assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L7-19 (BCTY) - R18-2 (+) Always Below 1 Ω
      L7-19 (BCTY) - Body ground Always 10 kΩ or higher
      R18-1 (E) - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   13

  9. REPLACE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY. Refer to  COMPONENTS
  10. REPLACE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY. Refer to  COMPONENTS
  11. REPLACE BACK DOOR LOCK ASSEMBLY. Refer to  COMPONENTS
  12. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE
  13. REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  COMPONENTS
