System Diagram
WARNING:
This page is about a different variant/trim than selected.
ILLUMINATED ENTRY SYSTEM

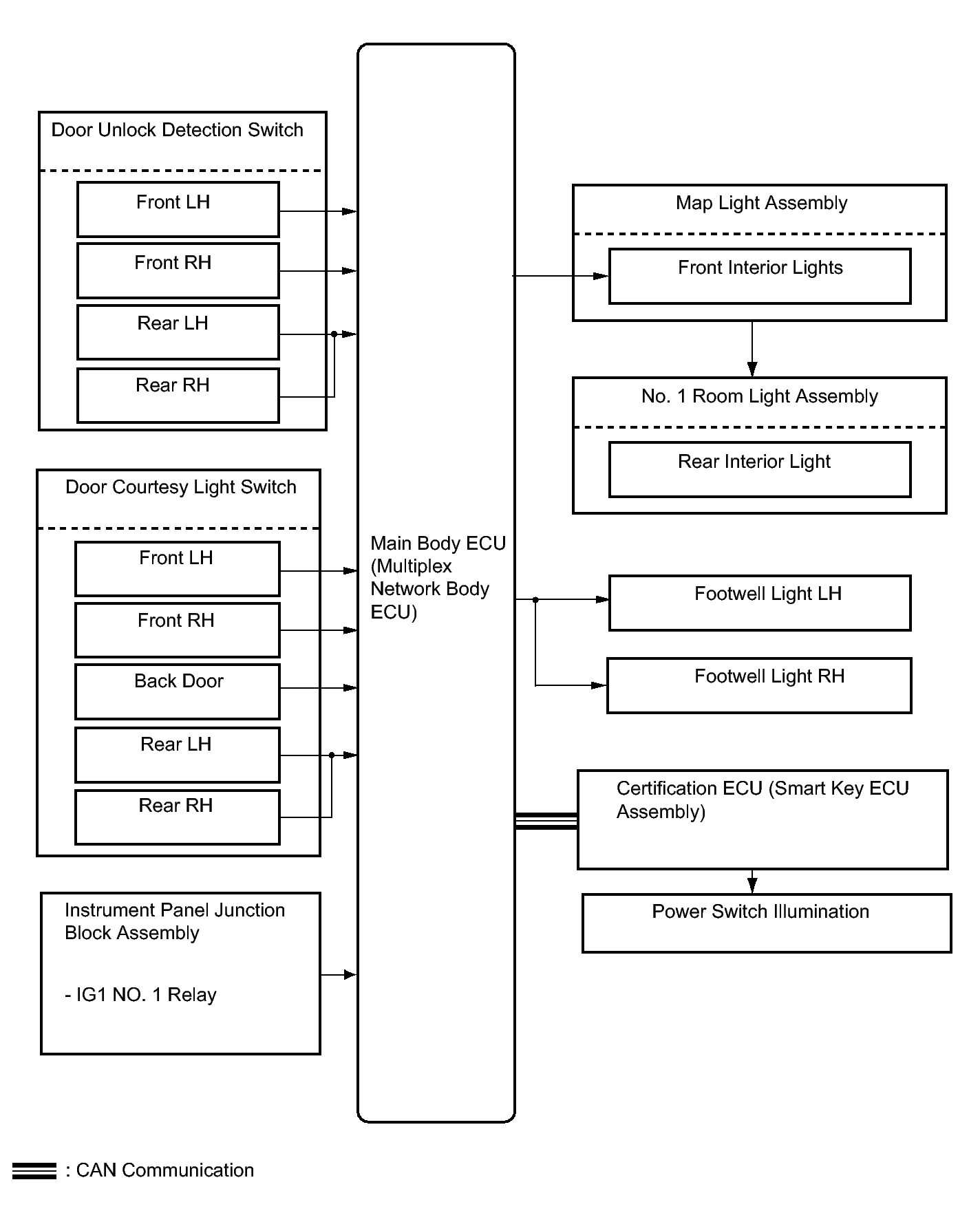

Fig 1: View Of Illuminated Entry System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
