Rear Airbag Sensor: Components: Illustration

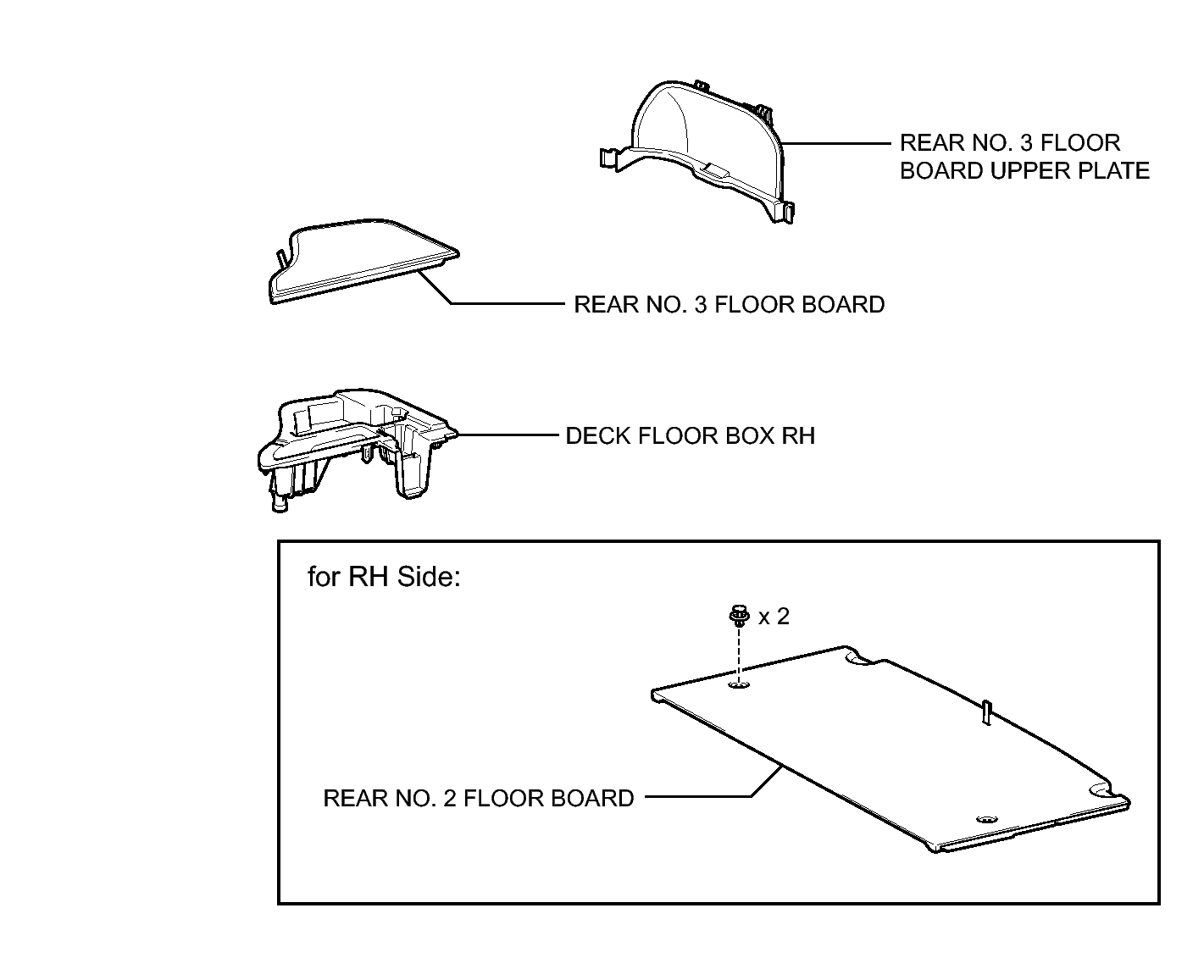

Fig 1: Identifying Rear Airbag Sensor Replacement Components (1 Of 4)
GTY333679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

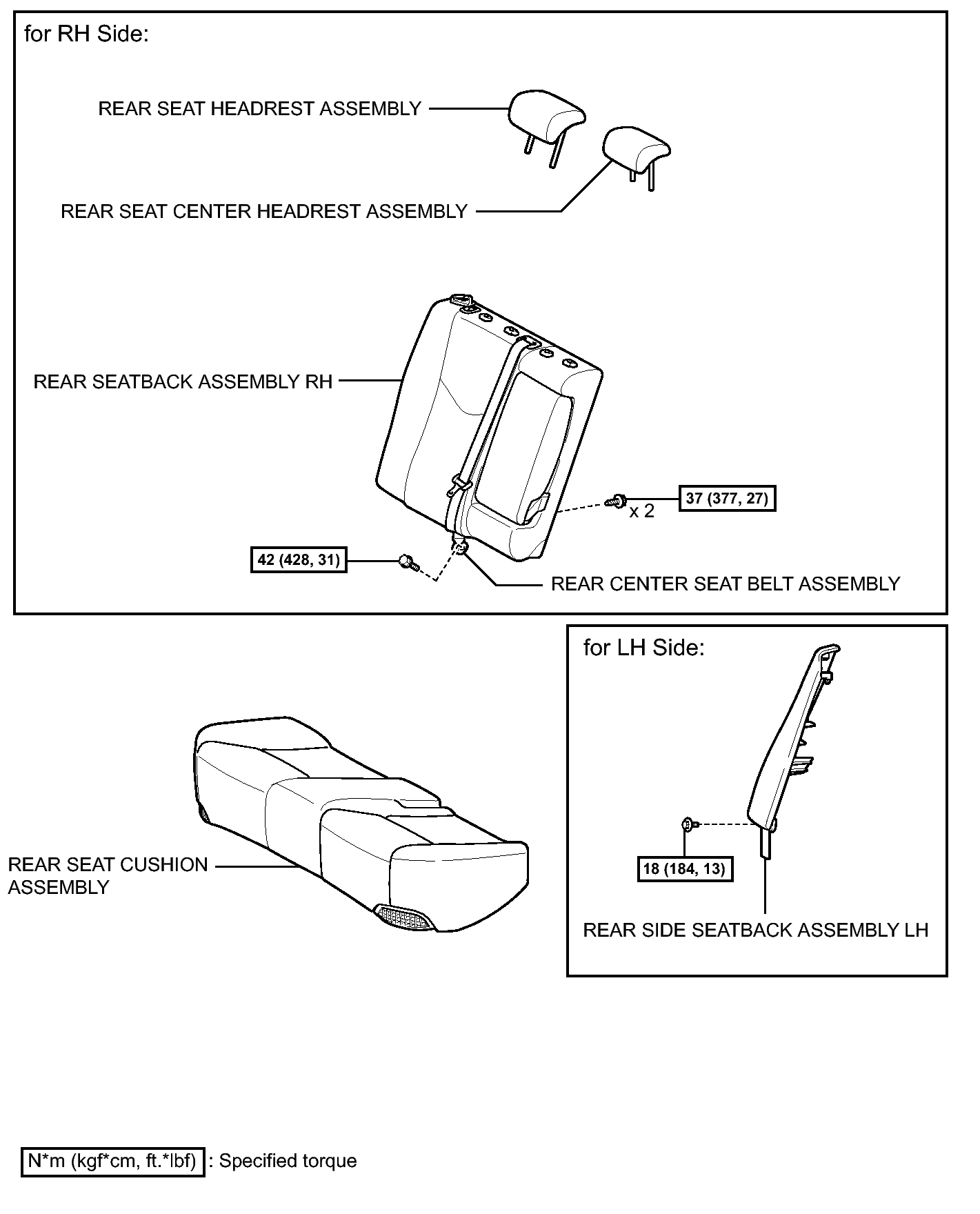

Fig 1: Identifying Rear Airbag Sensor Replacement Components With Torque Specifications (2 Of 4)
GTY338242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

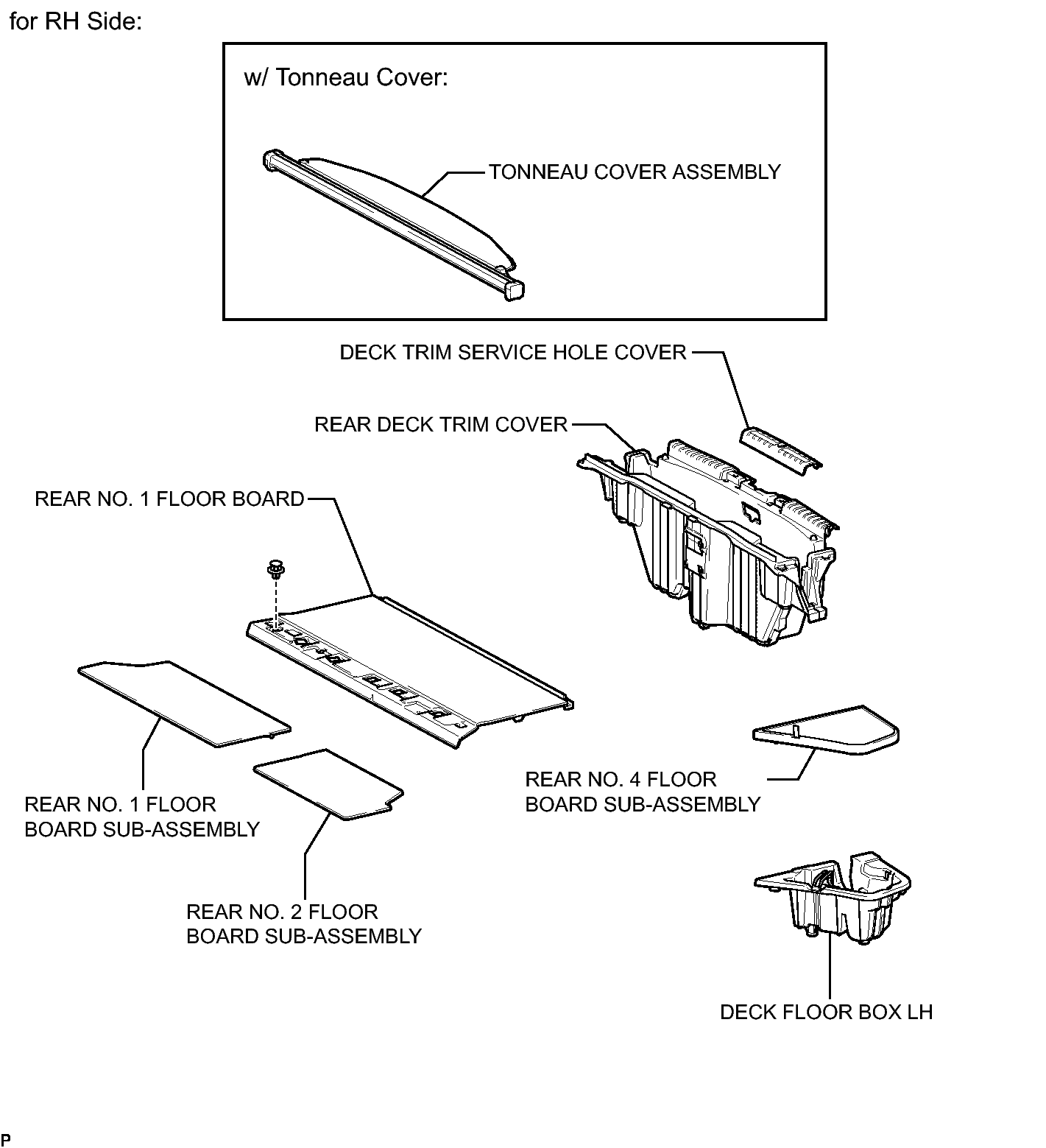

Fig 1: Identifying Rear Airbag Sensor Replacement Components (3 Of 4)
GTY335361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

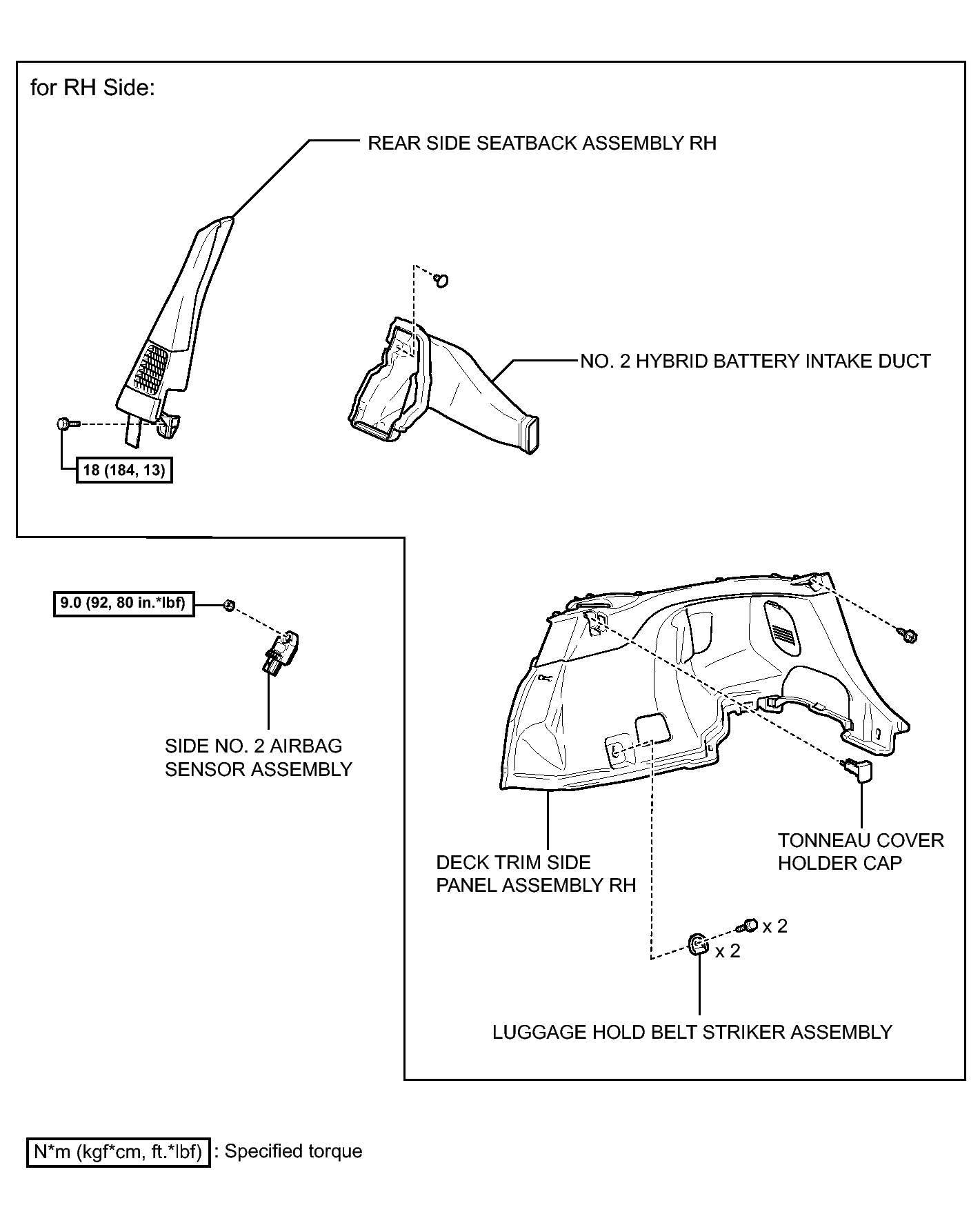

Fig 1: Identifying Rear Airbag Sensor Replacement Components With Torque Specifications (4 Of 4)
GTY328139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
