Side Airbag Sensor: Installation: Installation
HINT:
- Use the same procedure for the RH side and LH side.
- The procedure listed below is for the LH side.
- INSTALL SIDE AIRBAG SENSOR ASSEMBLY
- Check that the power switch is off.
- Check that the cable is disconnected from the negative (-) auxiliary battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- Insert the pin (stopper) into the body hole and install the side airbag sensor assembly to the vehicle body with the bolt.
Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
NOTE:- If the side airbag sensor assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
- When installing the side airbag sensor assembly, be careful that the SRS wiring does not interfere with or is not pinched between other parts.
- Make sure that the pin (stopper) is securely inserted into the body hole.
- Tighten the bolt while holding the side airbag sensor assembly because the side airbag sensor assembly pin (stopper) is easily damaged.
- Connect the connector to the side airbag sensor assembly.NOTE:
When connecting the airbag connector, take care not to damage the airbag wire harness.

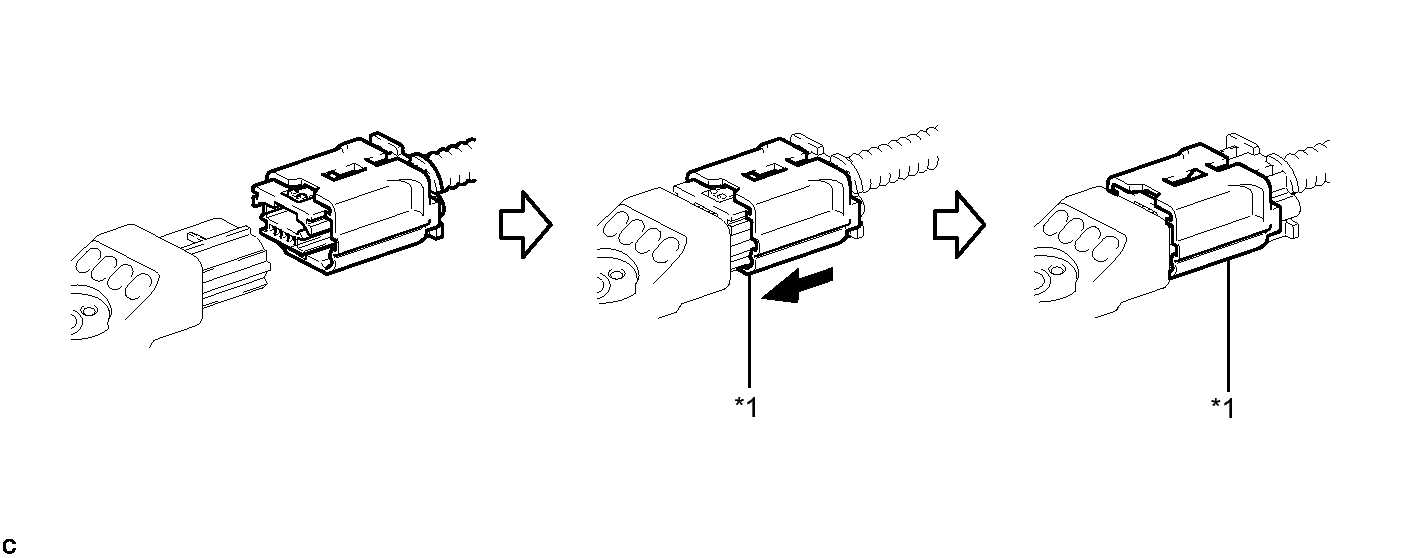

- Connect the connector as shown in the illustration (when locking, make sure that the outer connector locking sleeve returns to its original position and a click sound can be heard).TEXT IN ILLUSTRATION
*1 Outer Connector Locking Sleeve - - HINT:
When connected, the outer connector locking sleeve will slide. Be sure not to hold the outer connector locking sleeve while connecting, as it may result in an insecure fit.
- Connect the connector as shown in the illustration (when locking, make sure that the outer connector locking sleeve returns to its original position and a click sound can be heard).
- Check that there is no looseness in the installation parts of the side airbag sensor assembly.
- INSTALL CENTER PILLAR LOWER GARNISH . Refer to INSTALLATION - Step 34
- CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
- INSTALL REAR DOOR SCUFF PLATE . Refer to INSTALLATION - Step 38
- CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
- INSTALL FRONT DOOR SCUFF PLATE . Refer to INSTALLATION - Step 42
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- INSTALL REAR NO. 3 FLOOR BOARD UPPER PLATE . Refer to INSTALLATION - Step 3
- INSTALL DECK FLOOR BOX RH . Refer to INSTALLATION - Step 4
- INSTALL REAR NO. 3 FLOOR BOARD . Refer to INSTALLATION - Step 55
- PERFORM DIAGNOSTIC SYSTEM CHECK
Refer to DTC CHECK / CLEAR
- INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
