Steering Pad Switch: Removal: Removal

REMOVE HORN BUTTON ASSEMBLY
Refer to REMOVAL
REMOVE STEERING PAD SWITCH ASSEMBLY
1. Disconnect the steering pad switch assembly connector from the spiral cable sub-assembly.
2. Remove the 2 screws.

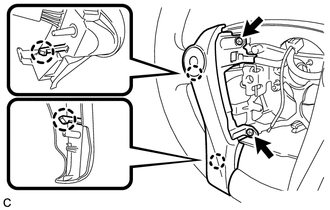

  Fig 1: Identifying Steering Pad Switch Assembly & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the 2 claws to remove the steering pad switch assembly (RH side) from the steering wheel sub-assembly.
4. Remove the 2 screws.

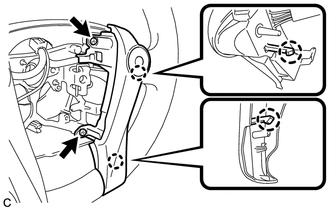

  Fig 2: Identifying Steering Pad Switch Assembly & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Disengage the 2 claws to remove the steering pad switch assembly (LH side) from the steering wheel sub-assembly.
REMOVE STEERING PAD SWITCH LH
1. Remove the clamp.

  Fig 3: Identifying Clamp & Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector to remove the steering pad switch LH from the steering pad switch RH.
