Steering Wheel: Installation: Installation

INSTALL LOWER STEERING WHEEL BOSS COVER
1. Engage the 2 pins and 4 claws to install the lower steering wheel boss cover to the steering wheel sub-assembly.
INSTALL CRUISE CONTROL SWITCH WIRE
INSTALL CRUISE CONTROL MAIN SWITCH . Refer to INSTALLATION - Step 1
INSTALL STEERING PAD SWITCH ASSEMBLY See step 2
INSTALL STEERING SHAKE DAMPER
1. Install the steering shake damper to the steering wheel sub-assembly with the 2 screws.
  Torque: 2.4 N*m (24 kgf*cm, 21 in.*lbf)
ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY . Refer to INSTALLATION - Step 5
INSTALL STEERING WHEEL ASSEMBLY
1. Install the steering wheel assembly aligning the matchmarks on the steering wheel assembly and steering main shaft.

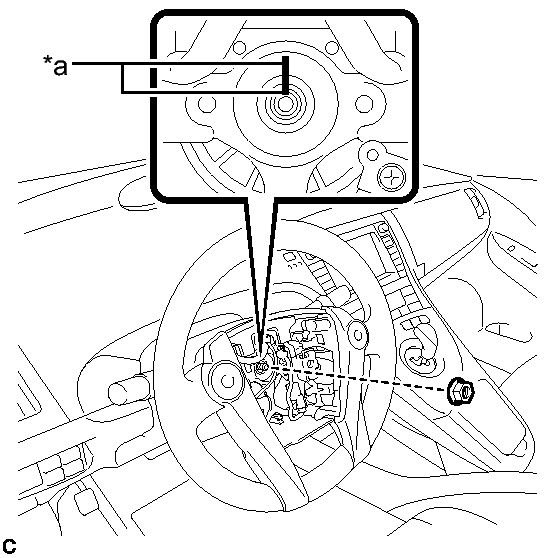

  Fig 1: Identifying Matchmarks & Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *a Matchmark
2. Install the steering wheel assembly set nut.
  Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
3. Connect each connector to the spiral cable sub-assembly.
INSTALL HORN BUTTON ASSEMBLY
Refer to INSTALLATION
