Rear View Monitor System (Except Plug-In) (Diagnostics & Symptom Tests)
>>
Rear View Monitor System
>>
System Diagram
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

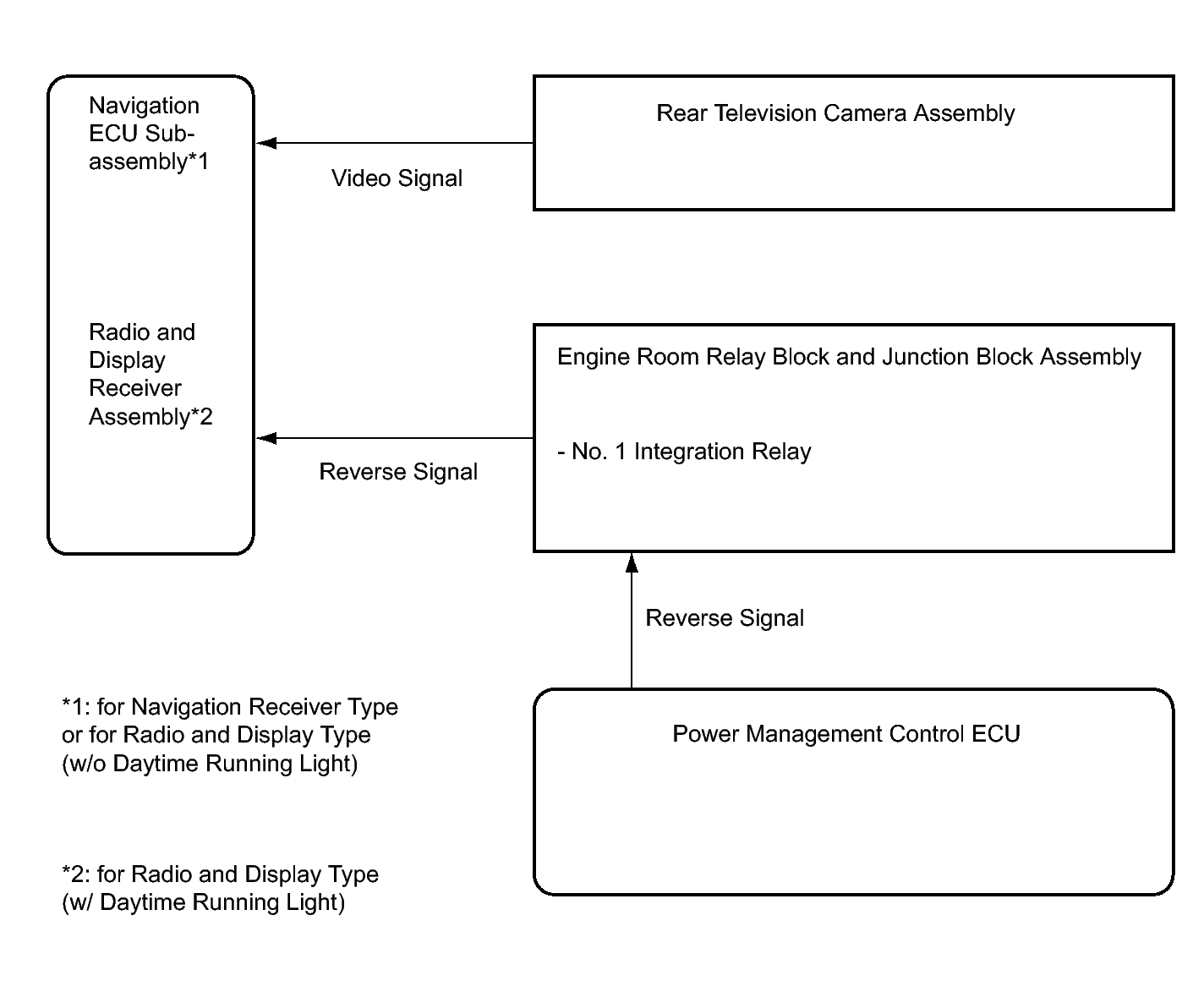

Fig 1: Rear View Monitor System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
