System Diagram

WARNING: This page is about a different variant/trim than selected.
  1. V1 BUS

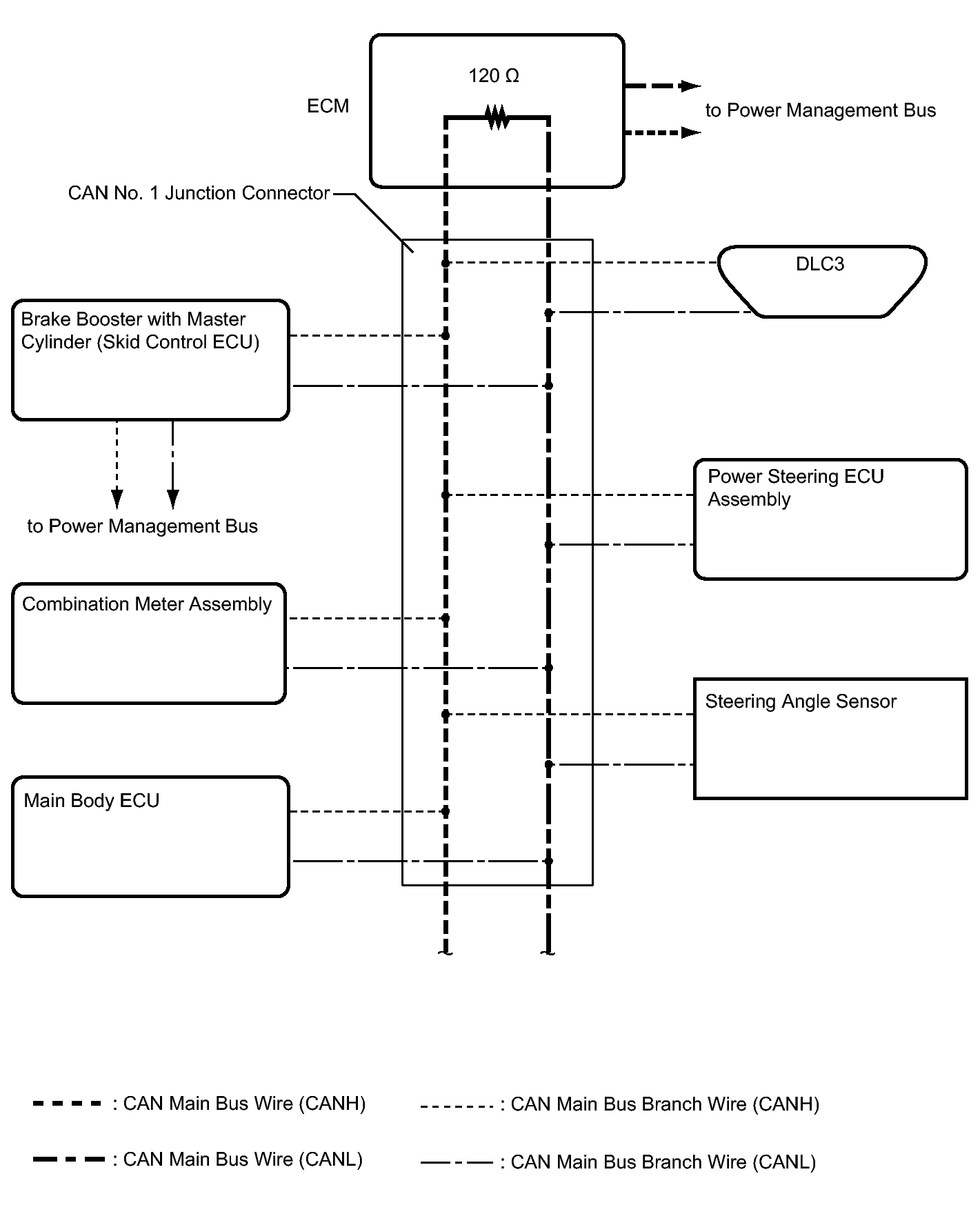

    Fig 1: Identifying V1 BUS CAN Communication System Diagram (1 Of 2)
    GTY334150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

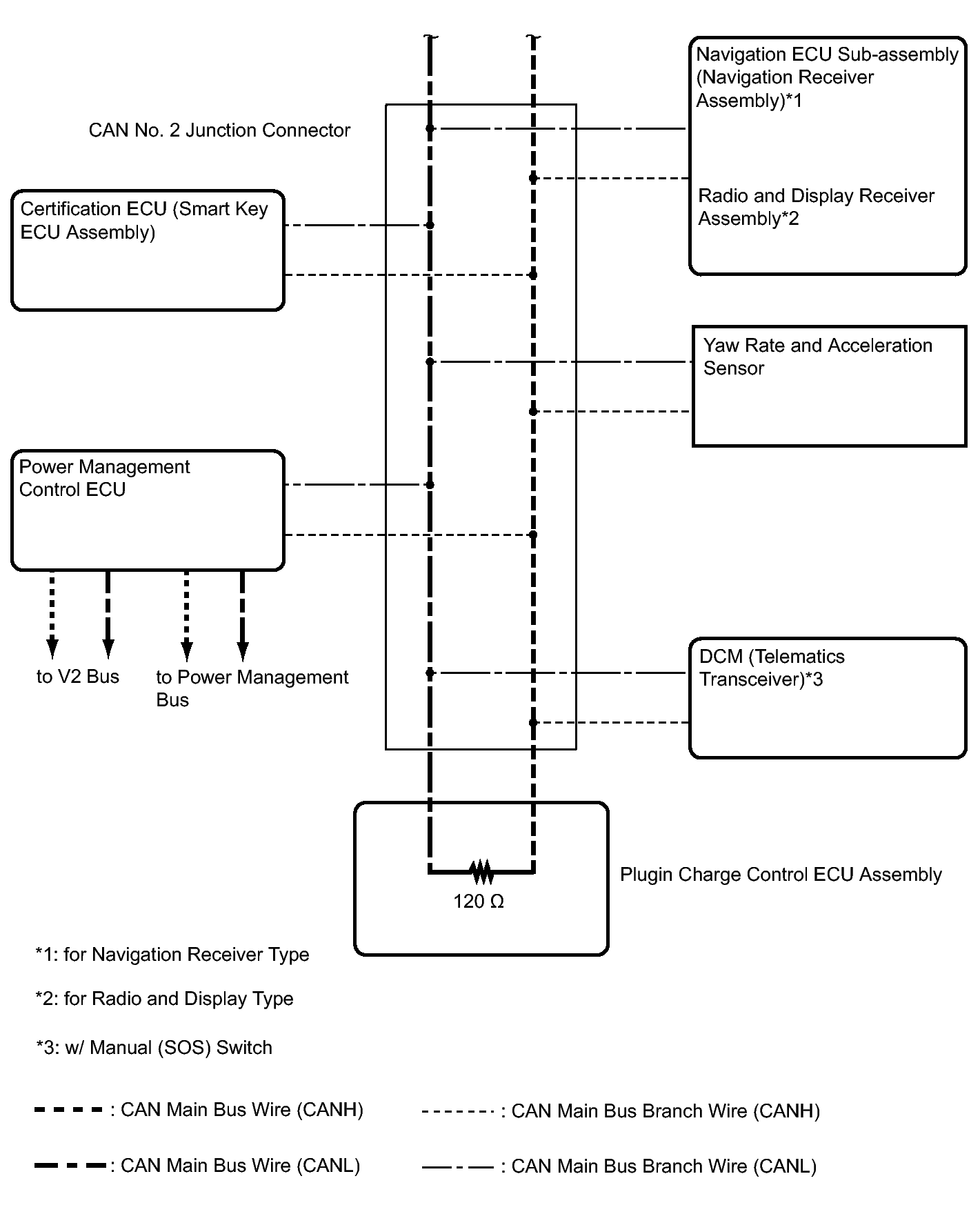

    Fig 2: Identifying V1 BUS CAN Communication System Diagram (2 Of 2)
    GTY342985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. V2 BUS

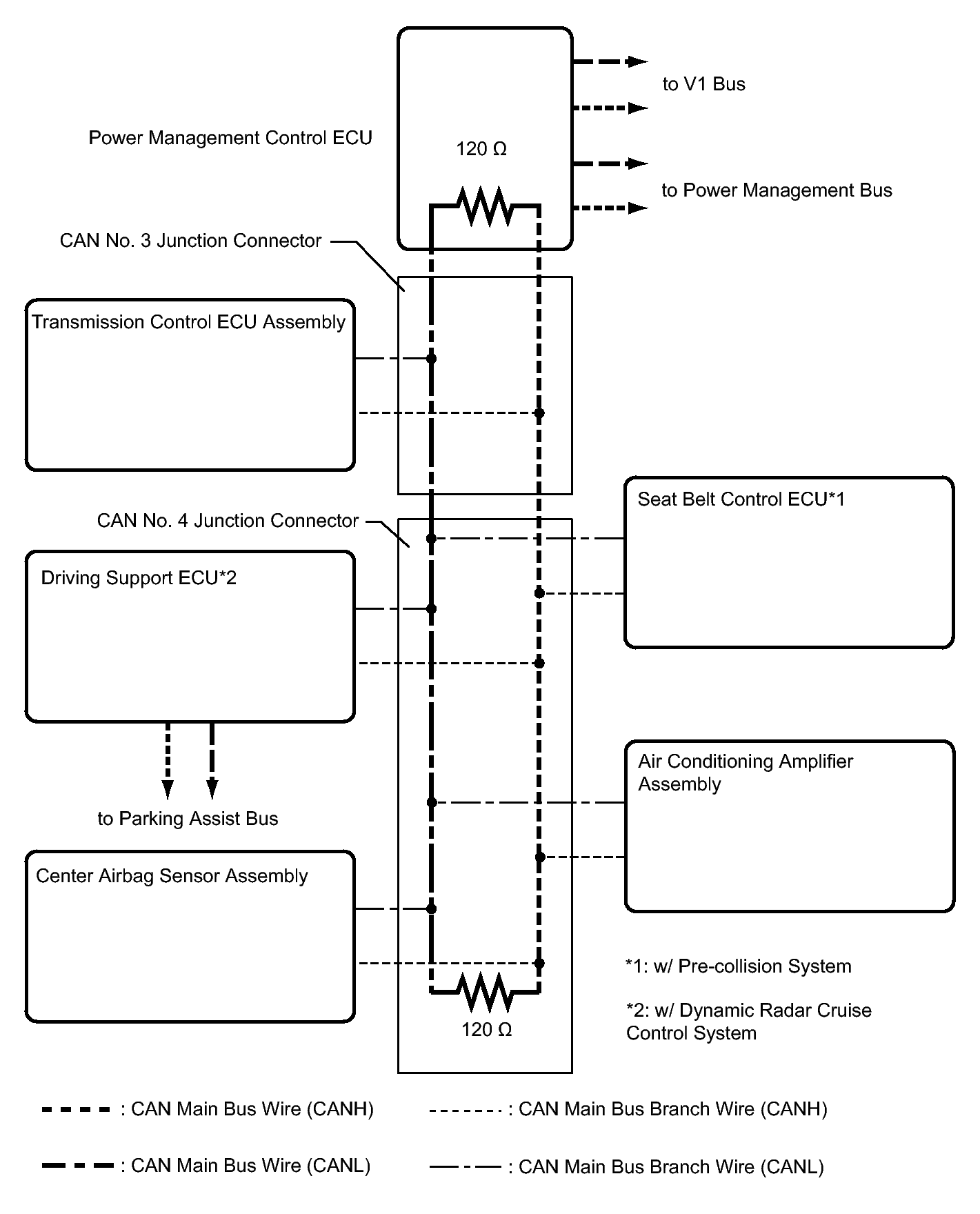

    Fig 3: Identifying V2 BUS CAN Communication System Diagram
    GTY324017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. POWER MANAGEMENT BUS

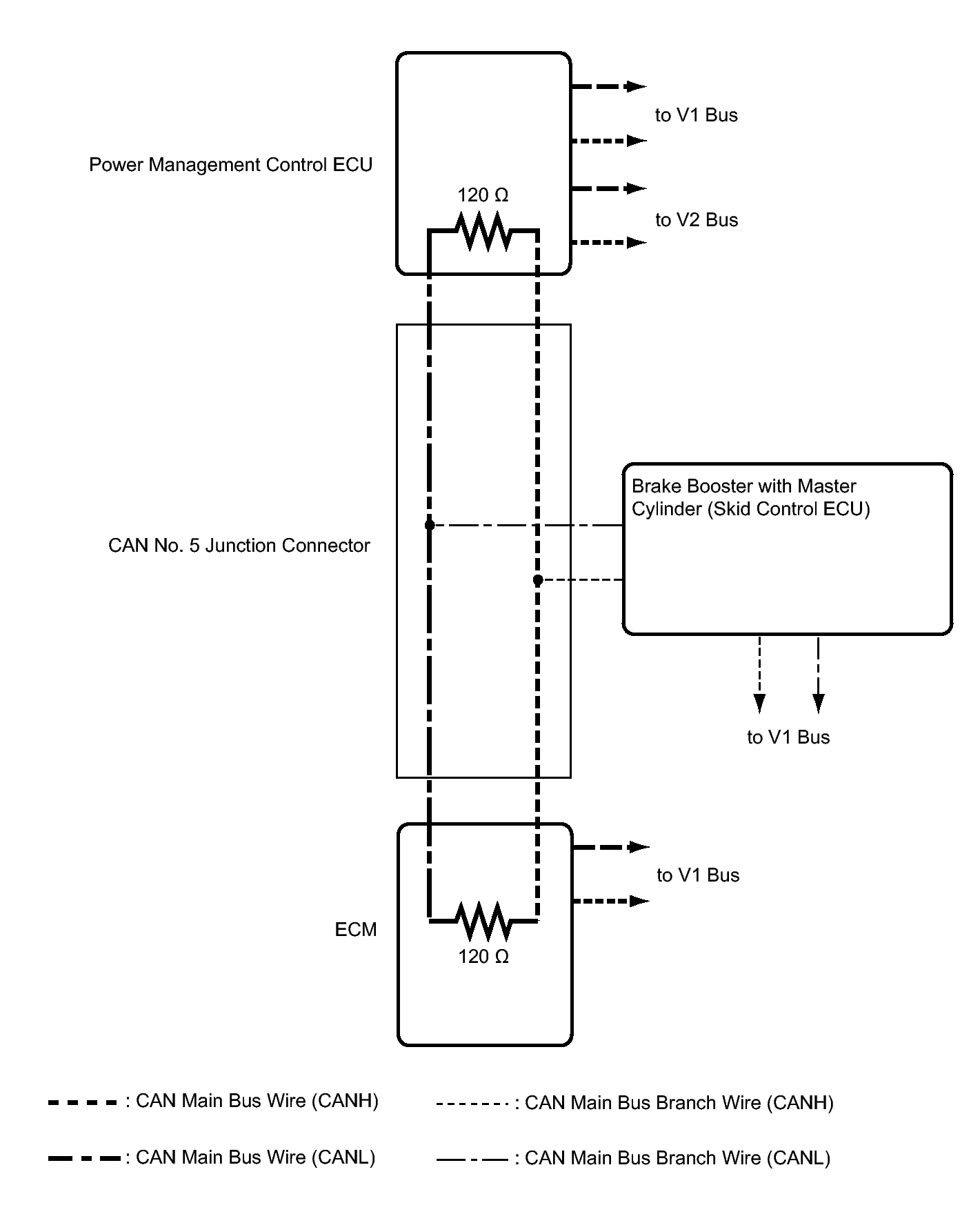

    Fig 4: Identifying Power Management BUS CAN Communication System Diagram
    GTY341549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. PARKING ASSIST BUS (w/ Dynamic Radar Cruise Control System)

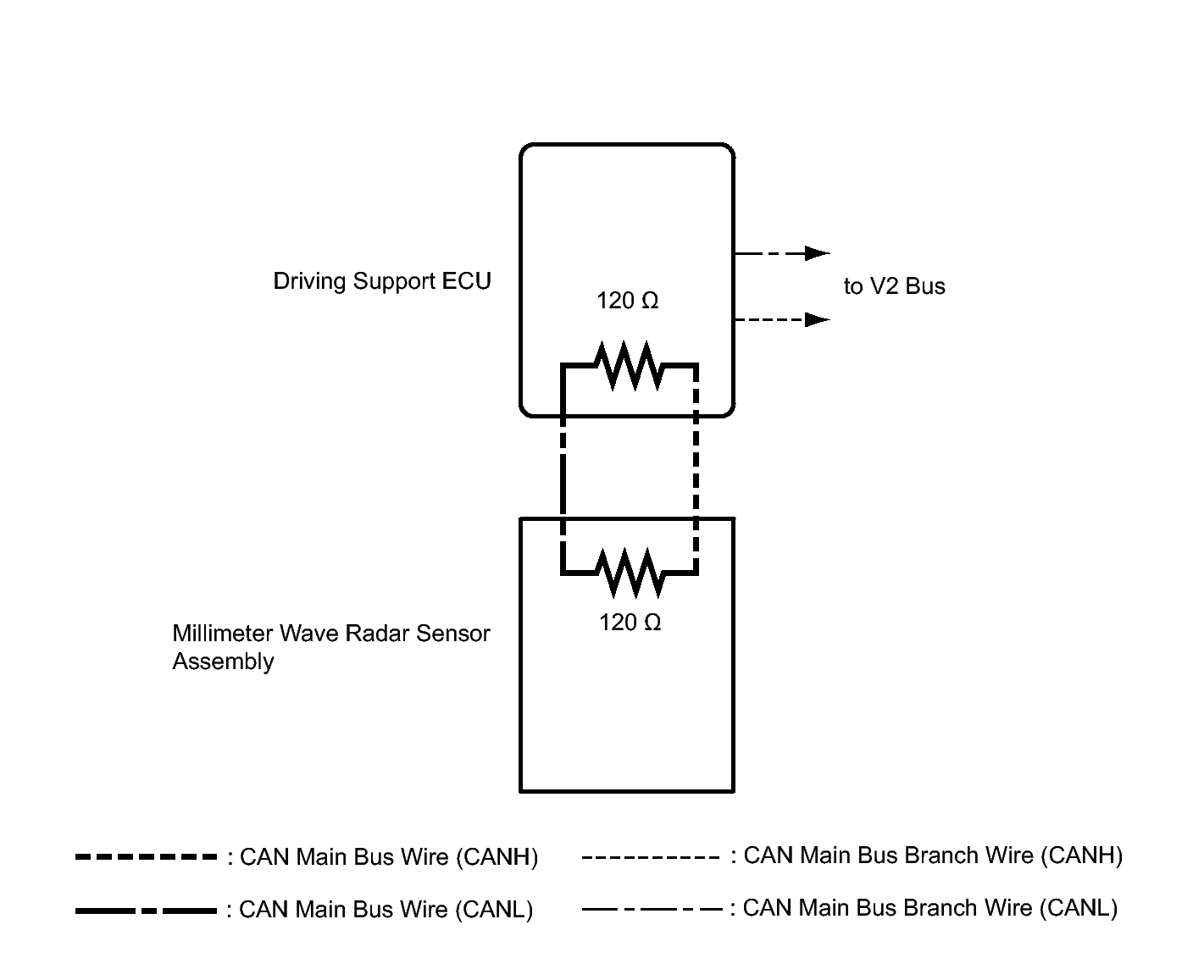

    Fig 5: Identifying PARKING ASSIST BUS (w/ Dynamic Radar Cruise Control System) CAN Communication System Diagram
    GTY343601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
