Power Source Circuit: Wiring Diagram

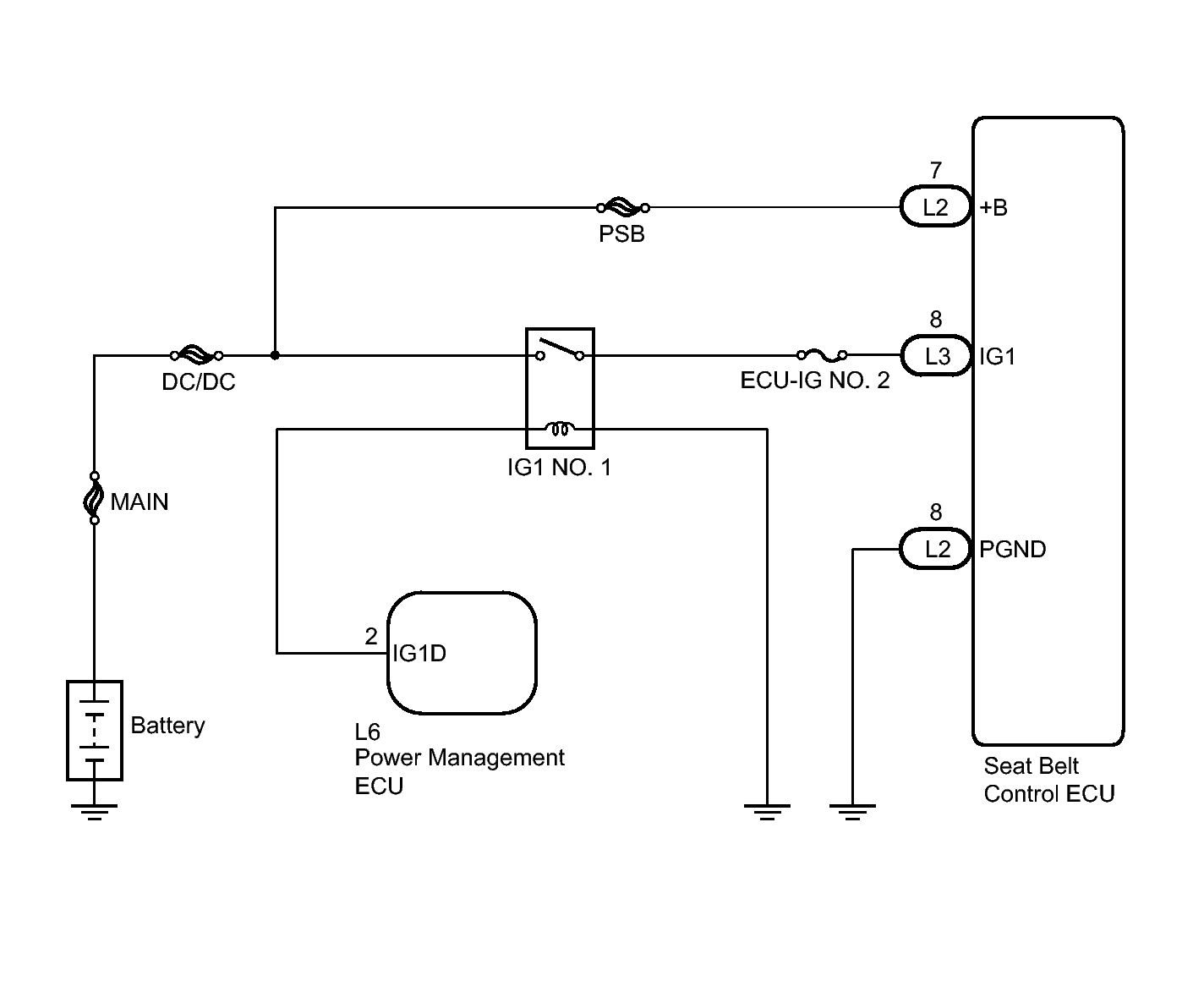

Fig 1: Identifying Seat Belt Control ECU Wiring Diagram
GTY293029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
