Security Indicator Light Assembly: Inspection: Inspection
WARNING: This page is about a different variant/trim than selected.
- INSPECT SECURITY INDICATOR LIGHT
- Apply battery voltage from the wire harness back side between the specified terminals of the indicator, and check the lighting condition of the security indicator.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

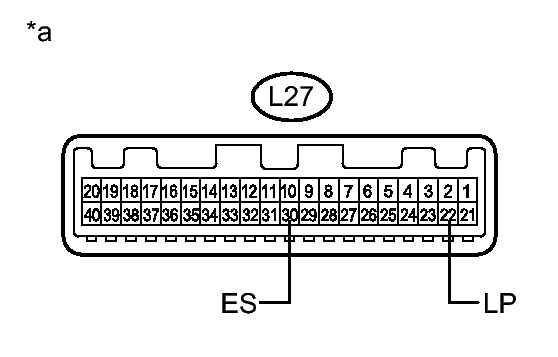

STANDARDMeasurement Condition Specified Condition Battery positive (+) → Terminals L27-22 (LP)
Battery negative (-) → Terminals L27-30 (ES)Security indicator comes on TEXT IN ILLUSTRATION*a Component with harness connected
(Combination Meter Assembly)If the result is not as specified, replace the No. 3 meter circuit plate.
- Apply battery voltage from the wire harness back side between the specified terminals of the indicator, and check the lighting condition of the security indicator.
