DTC B2785: Communication Malfunction between ECUs Connected by LIN: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

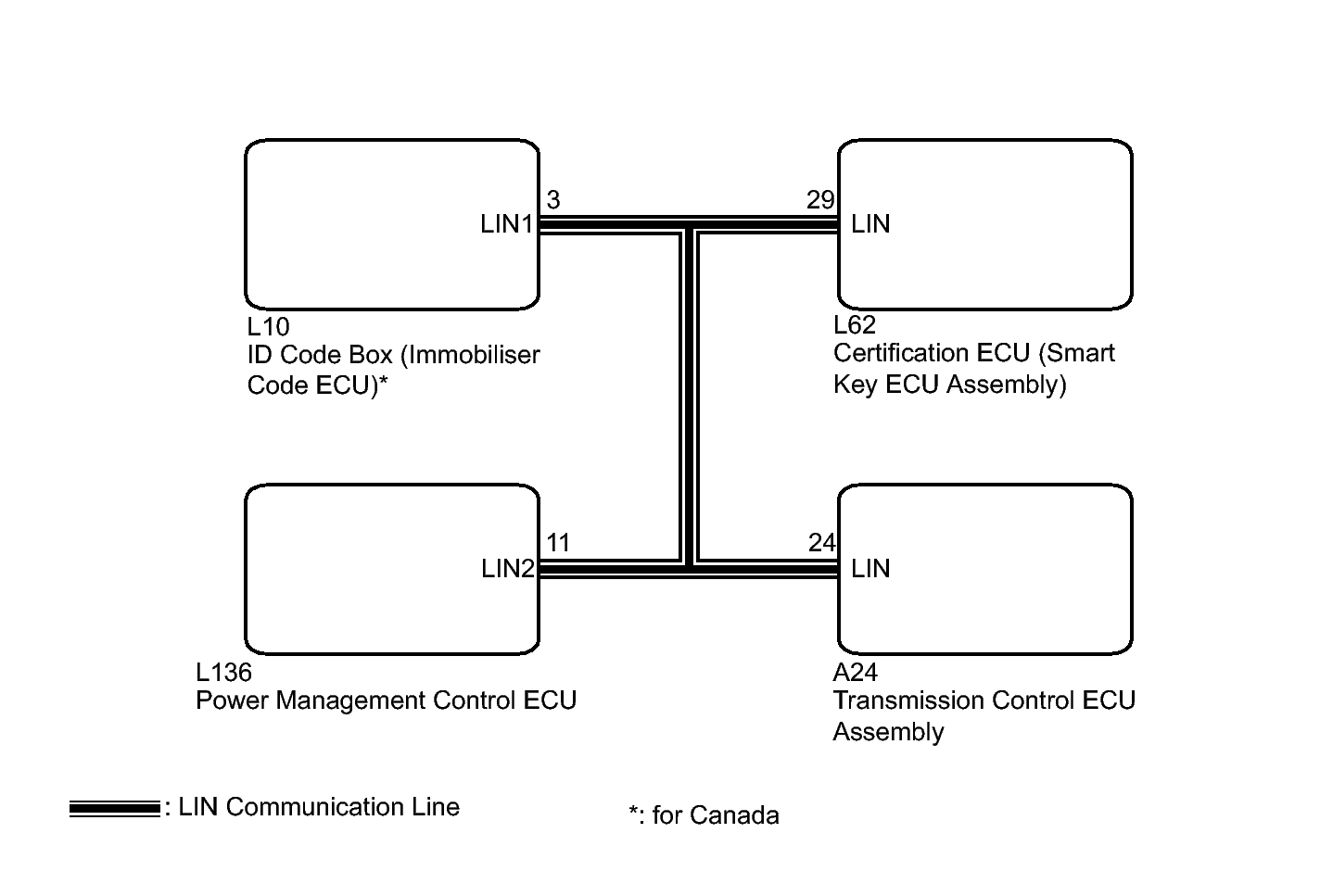

Fig 1: Identifying ECU LIN Communication Circuit Diagram

GTY325438

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
