Diagnosis System

WARNING: This page is about a different variant/trim than selected.
  1. CHECK DLC3
    1. Check the DLC3. Refer to GENERAL INFORMATION .
  2. CHECK WARNING LIGHT
    1. If a problem occurs in the power steering system, the EPS warning light on the combination meter assembly comes on to inform the driver of the problem.

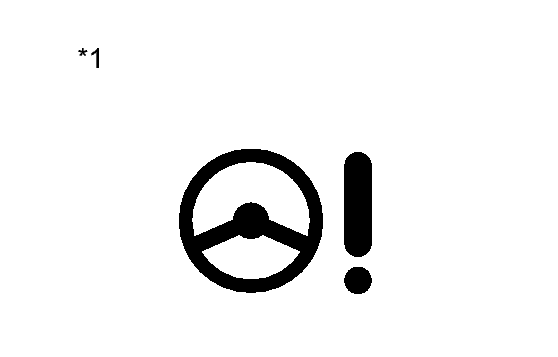

      Fig 1: Identifying P/S Warning Light
      GTY323512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 EPS Warning Light
