PCV Valve: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL VENTILATION VALVE SUB-ASSEMBLY
1. Apply adhesive to 2 or 3 threads of the ventilation valve sub-assembly.
  Adhesive

  Toyota genuine adhesive 1324, three bond 1324 or equivalent
2. Using a ball joint lock nut wrench (22 mm), install the ventilation valve sub-assembly.

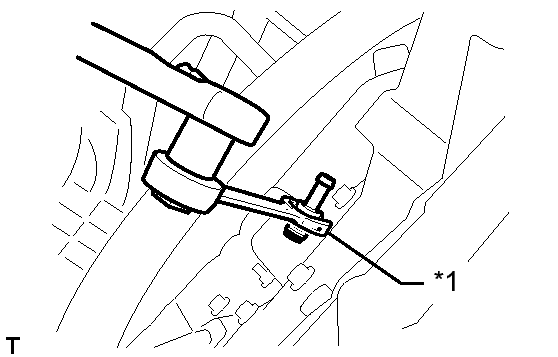

  Fig 1: Identifying Ball Joint Lock Nut Wrench (22 mm)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Ball Joint Lock Nut Wrench (22 mm)

  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

  NOTE:
  Use the formula to calculate special torque values for situations where a ball joint lock nut wrench is combined with a torque wrench. Refer to PRECAUTION .
3. Install the ventilation hose to the ventilation valve sub-assembly.

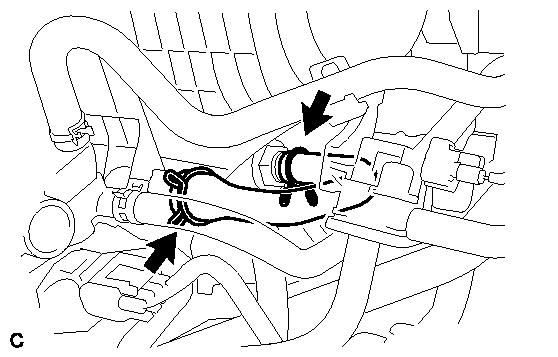

  Fig 2: Identifying Ventilation Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ENGINE UNDER COVER
INSTALL AIR CLEANER CASE . Refer to INSTALLATION - Step 3
INSTALL INLET AIR CLEANER ASSEMBLY . Refer to INSTALLATION - Step 70
INSTALL AIR CLEANER CAP SUB-ASSEMBLY . Refer to INSTALLATION - Step 5
INSTALL NO. 2 CYLINDER HEAD COVER . Refer to INSTALLATION - Step 99
