Solar Sensor: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL SOLAR SENSOR (AUTOMATIC LIGHT CONTROL SENSOR)
1. Engage the 2 claws to install the solar sensor (automatic light control sensor) as shown in the illustration.

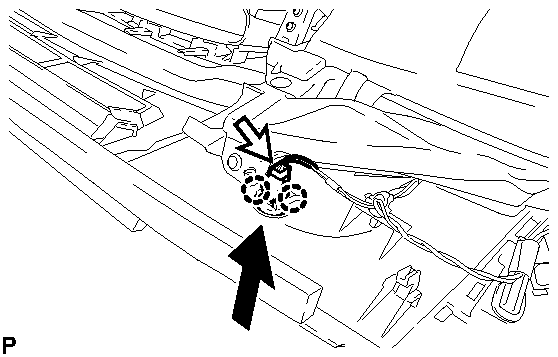

  Fig 1: Identifying Solar Sensor & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
INSTALL UPPER INSTRUMENT PANEL ASSEMBLY
Refer to INSTALLATION
