Headlight Cleaner Control Relay: Removal: Removal

Refer to REMOVAL

1. Disengage the clip and separate the washer jar cap of the washer jar assembly.

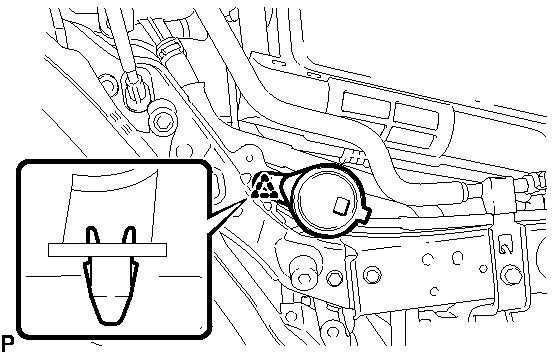

   Fig 1: Identifying Clip

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 2 connectors.

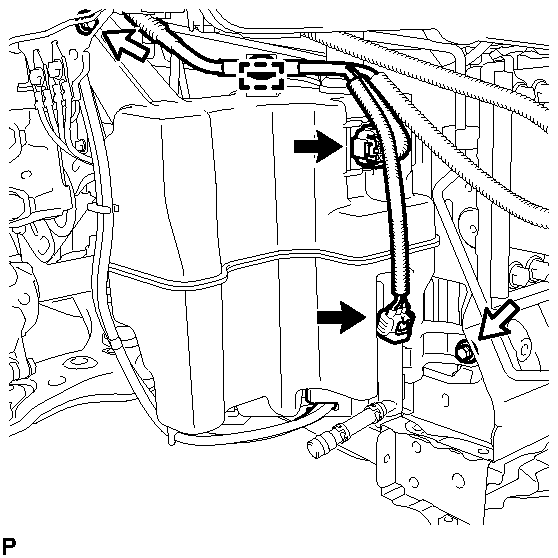

   Fig 2: Locating Washer Jar Connectors, Clamp & Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the clamp.
4. Remove the 2 bolts.
5. Disengage the hose clamp.

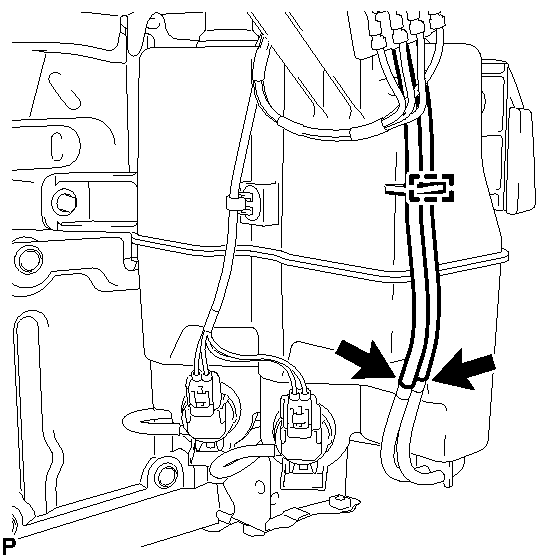

   Fig 3: Identifying Washer Hoses

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Disconnect the 2 washer hoses, and drain the washer fluid.

   HINT:

   Use a container to collect the washer fluid.

7. Disconnect the 2 connectors.

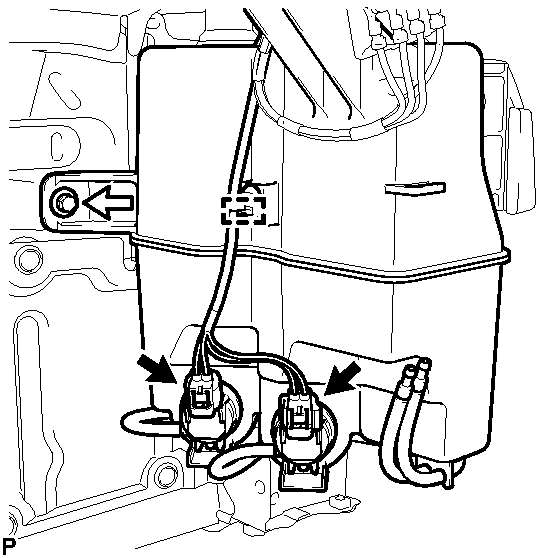

   Fig 4: Locating Washer Jar Connectors & Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Disengage the clamp.
9. Remove the bolt and the washer jar assembly.
10. Disengage the claw and remove the headlight cleaner control relay as shown in the illustration.

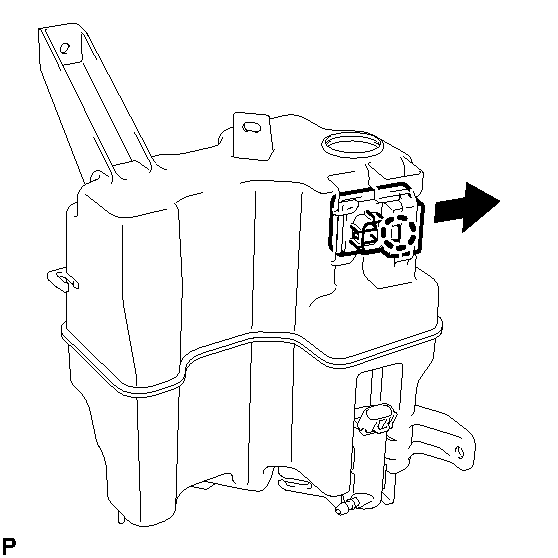

    Fig 5: Removing Headlight Cleaner Control Relay

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
