INSTALL MAP LIGHT BULB
1. Install the 2 map light bulbs to the 2 map light sockets.
2. Turn the 2 map light sockets with the 2 map light bulbs in the direction indicated by the arrows in the illustration and install them as a unit.

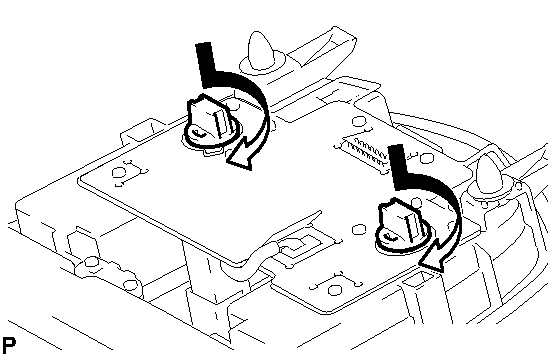

  Fig 1: Installing Map Light Bulbs & Map Light Bulbs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MAP LIGHT ASSEMBLY
1. Connect the connector.
2. Engage the 2 guides and 4 clips to install the map light assembly.

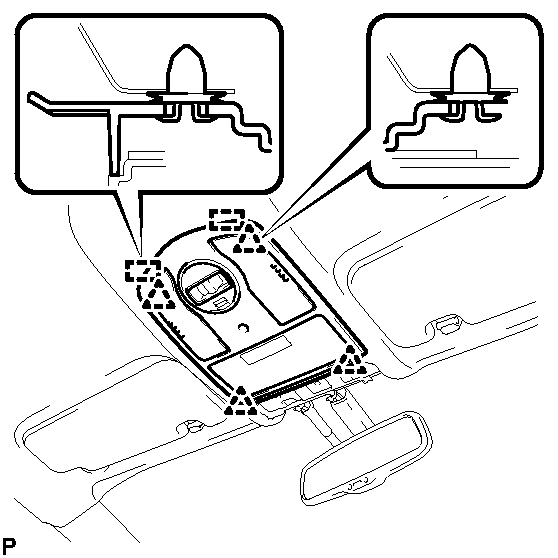

  Fig 2: Identifying Guides, Clips & Map Light Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF TOP MOULDING . Refer to INSTALLATION - Step 11
