Seat Position Sensor: Installation: Installation

1. Install the seat position sensor to the seat slide position sensor protector with the pin as shown in the illustration.

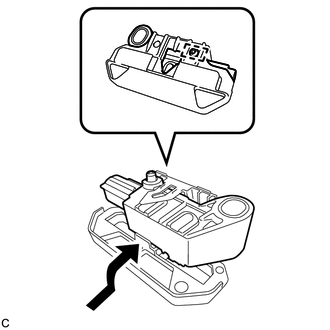

   Fig 1: Identifying Seat Position Sensor And Seat Slide Position Sensor Protector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a 1.3 mm (0.0512 in.) feeler gauge, temporarily install the seat position sensor with the "TORX" screw.

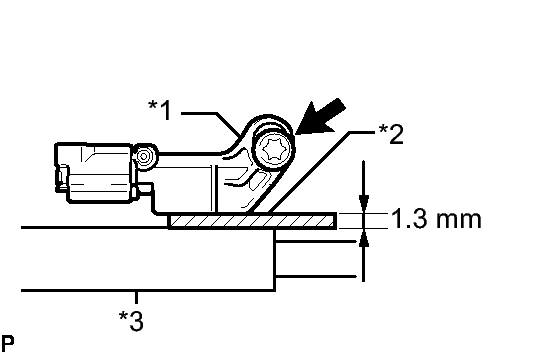

   Fig 2: Identifying Distance Between Seat Rail And Seat Position Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Seat Position Sensor
   *2	Feeler Gauge
   *3	Seat Rail

   NOTE:

   • If the seat position sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the seat position sensor with a new one.
   • When installing the seat position sensor, be careful that the SRS wiring does not interfere with or is pinched between other parts.
3. Using a T30 "TORX" socket wrench, tighten the "TORX" screw.

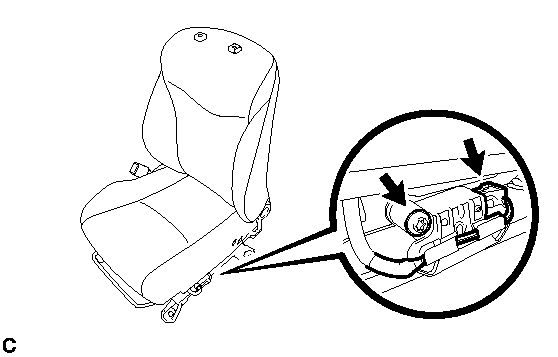

   Fig 3: Locating Seat Position Sensor Connector And Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

4. Make sure that the clearance between the seat position sensor and seat rail is 1.3 mm (0.0512 in.).
5. Install the wire harness to the seat slide position sensor protector.
6. Connect the connector.
7. Check that there is no looseness in the installation parts of the seat position sensor.

1. Install the seat position sensor to the seat slide position sensor protector with the pin as shown in the illustration.
   Fig 4: Identifying Seat Position Sensor And Seat Slide Position Sensor Protector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a 1.3 mm (0.0512 in.) feeler gauge, temporarily install the seat position sensor with the "TORX" screw and nut.
   Fig 5: Identifying Distance Between Seat Rail And Seat Position Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Seat Position Sensor
   *2	Feeler Gauge
   *3	Seat Rail

   NOTE:

   • If the seat position sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the seat position sensor with a new one.
   • When installing the seat position sensor, be careful that the SRS wiring does not interfere with or is pinched between other parts.
3. Using a T30 "TORX" socket wrench, tighten the "TORX" screw and nut.

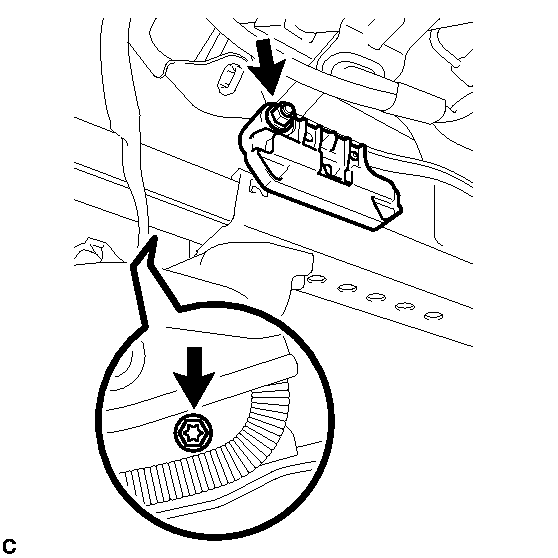

   Fig 6: Identifying Seat Position Sensor Screw And Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

4. Make sure that the clearance between the seat position sensor and seat rail is 1.3 mm (0.0512 in.).
5. Install the wire harness to the 2 hooks.

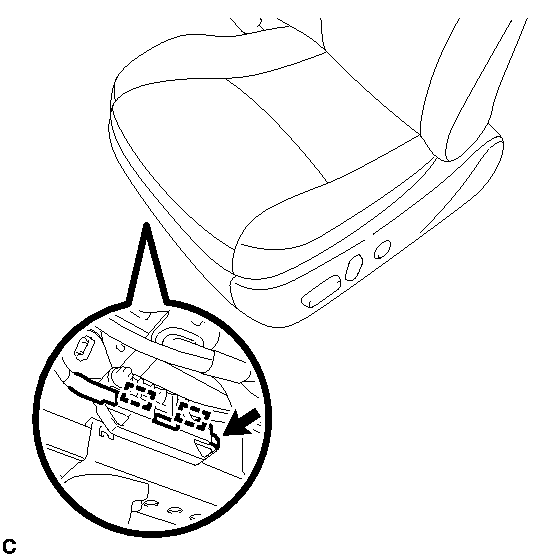

   Fig 7: Identifying Seat Position Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the connector.
7. Check that there is no looseness in the installation parts of the seat position sensor.

for Manual Seat: Refer to INSTALLATION

for Power Seat: Refer to INSTALLATION
