Rear Power Window Switch: Installation: Installation

HINT:

• Use the same procedure for the RH side and LH side.
• The procedure listed below is for the LH side.

1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
   1. Engage the 2 claws to install the rear power window regulator switch assembly.

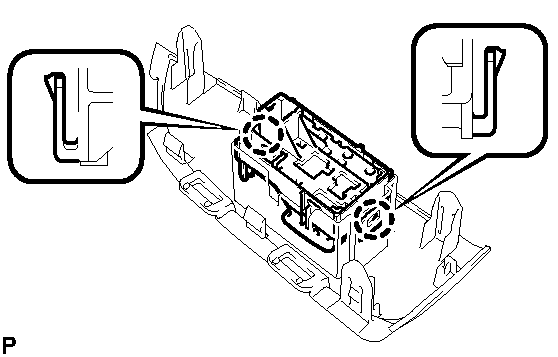

      Fig 1: Identifying Rear Power Window Regulator Switch Assembly & Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL  . Refer to REASSEMBLY - Step 36
3. INSTALL DOOR ASSIST GRIP COVER  . Refer to REASSEMBLY - Step 37
