Fuel Sender Gauge Assembly: Installation: Installation

INSTALL FUEL SENDER GAUGE ASSEMBLY
1. Install the fuel sender gauge assembly by sliding it downward.

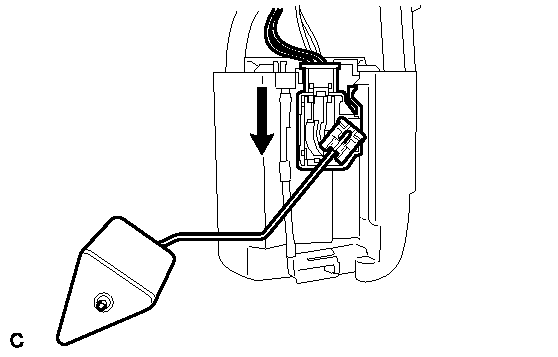

  Fig 1: Identifying Fuel Sender Gauge Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector of the fuel sender gauge assembly.

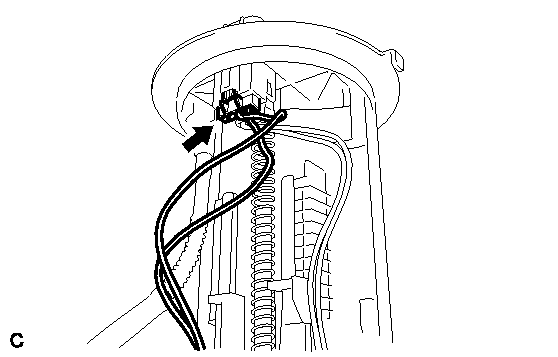

  Fig 2: Identifying Fuel Sender Gauge Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 harness protectors.

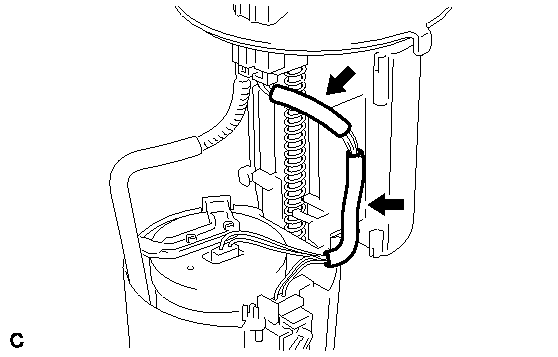

  Fig 3: Identifying Harness Protectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not damage the wire harness.
4. Connect the 3 harness clamps.

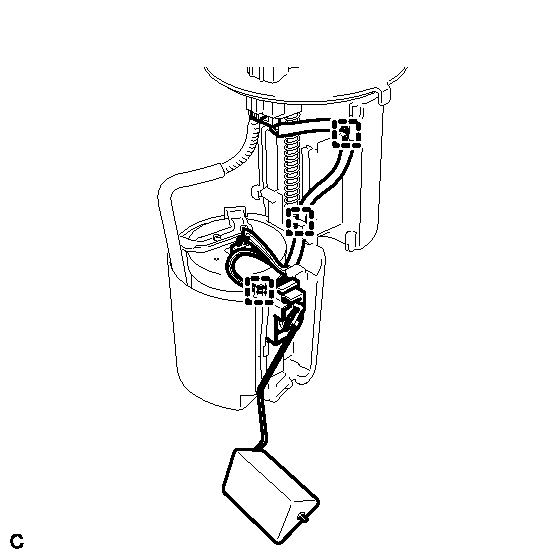

  Fig 4: Identifying Fuel Sender Gauge Assembly Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE
1. Install the fuel suction tube assembly with pump and gauge. Refer to INSTALLATION .
