Engine Unit: Components: Illustration

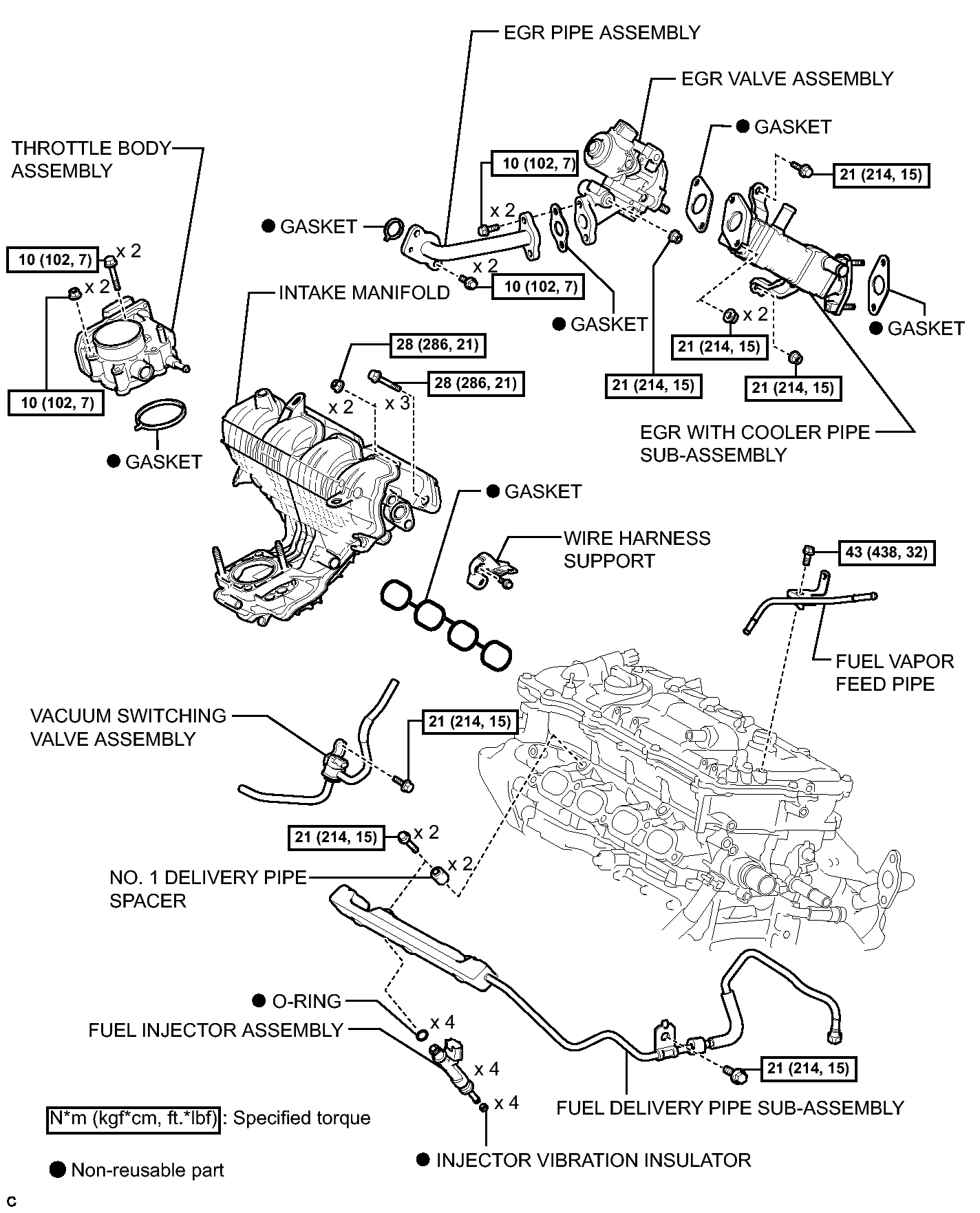

Fig 1: Engine Unit Exploded View With Torque Specifications (1 Of 8)
GTY233594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

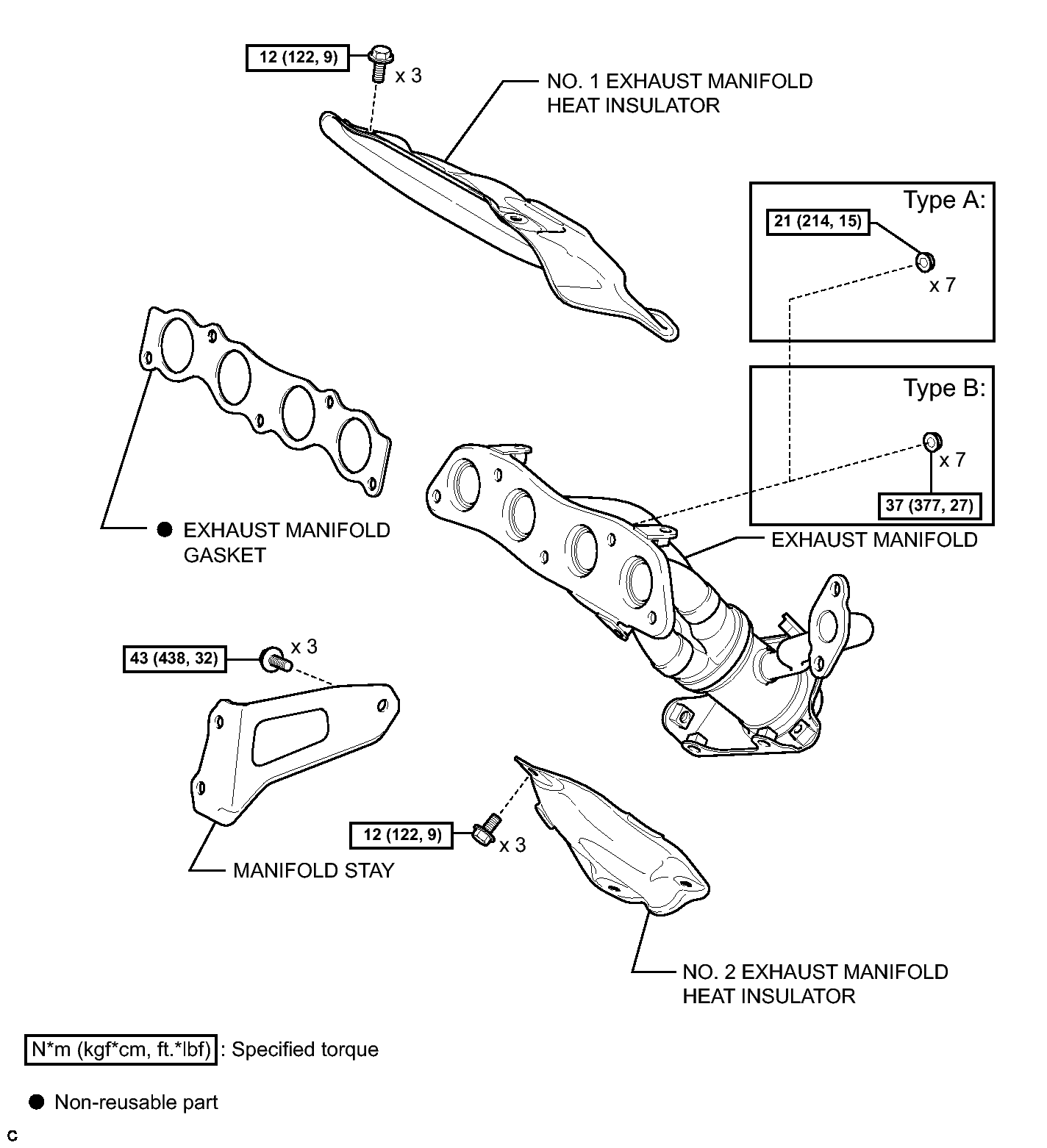

Fig 2: Engine Unit Exploded View With Torque Specifications (2 Of 8)
GTY291412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

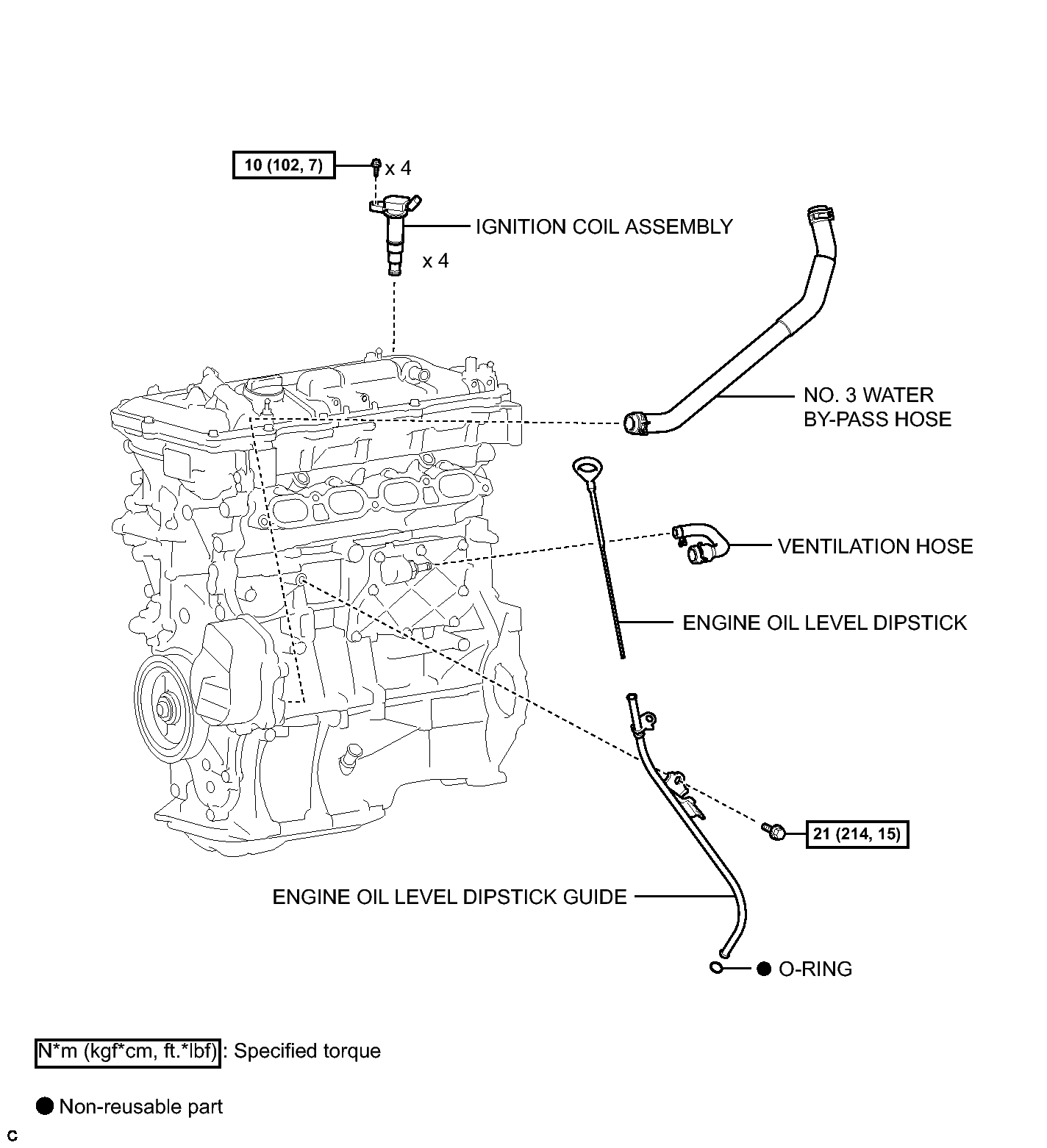

Fig 3: Engine Unit Exploded View With Torque Specifications (3 Of 8)
GTY343160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

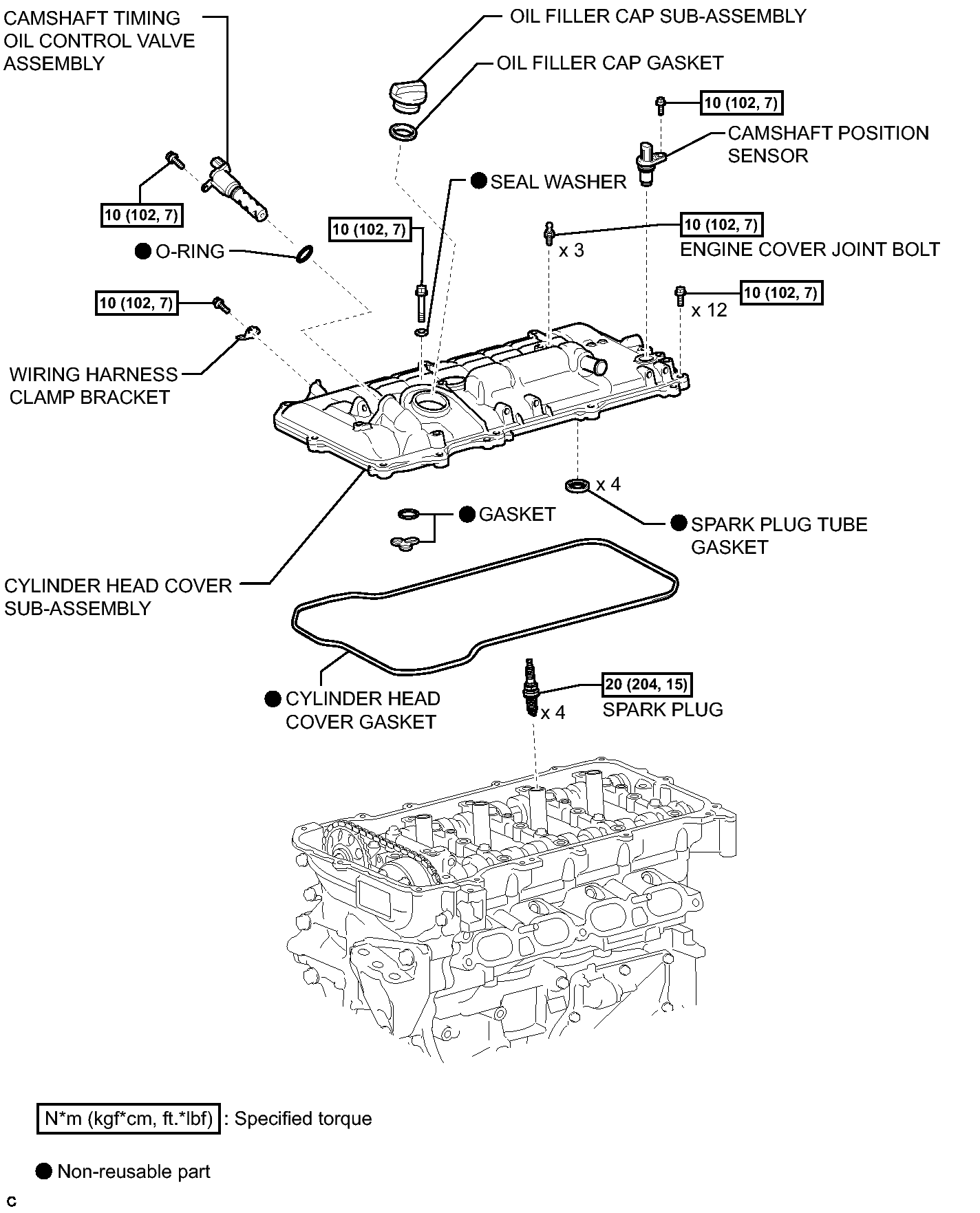

Fig 4: Engine Unit Exploded View With Torque Specifications (4 Of 8)
GTY213975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

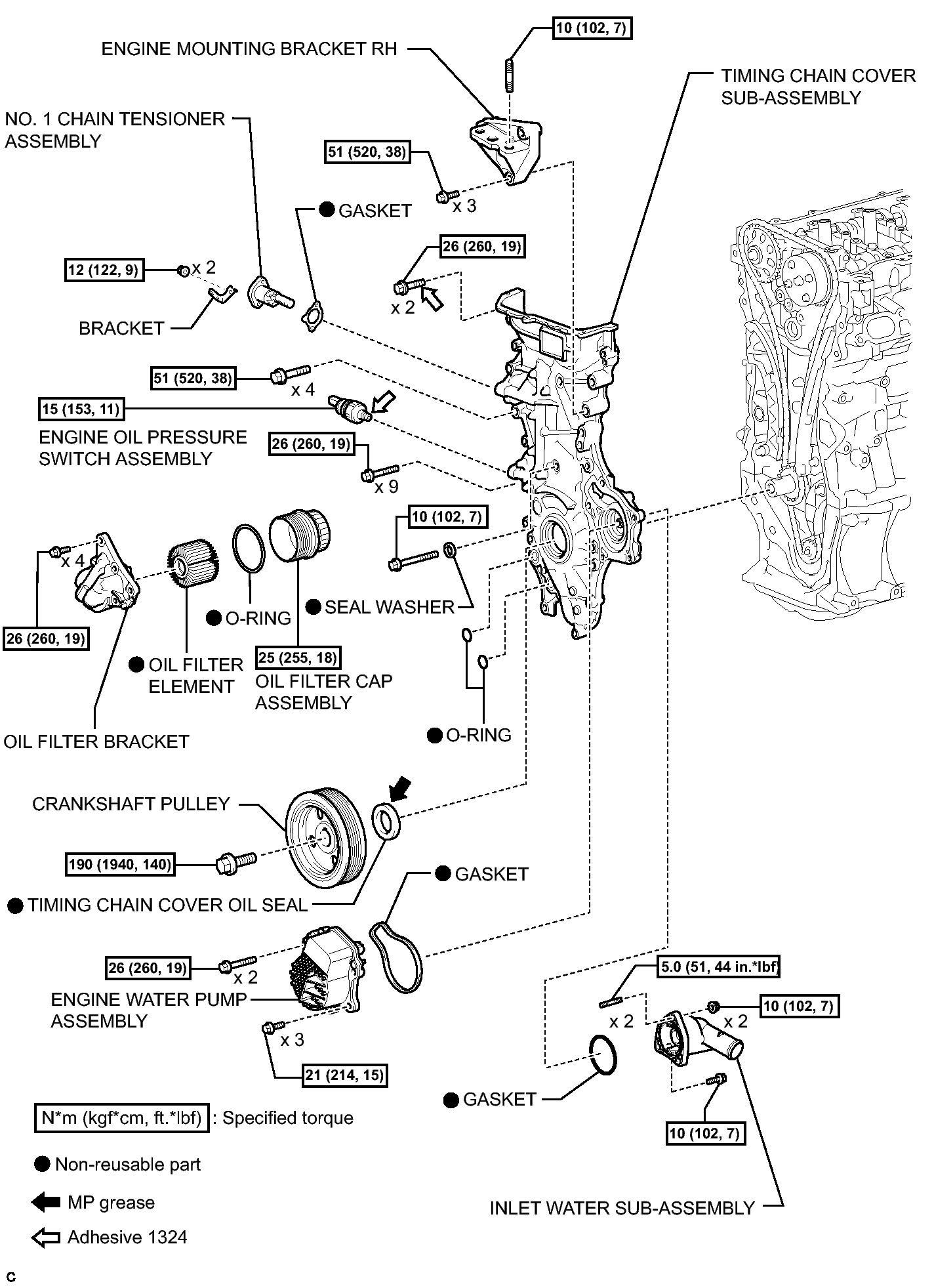

Fig 5: Engine Unit Exploded View With Torque Specifications (5 Of 8)
GTY293789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

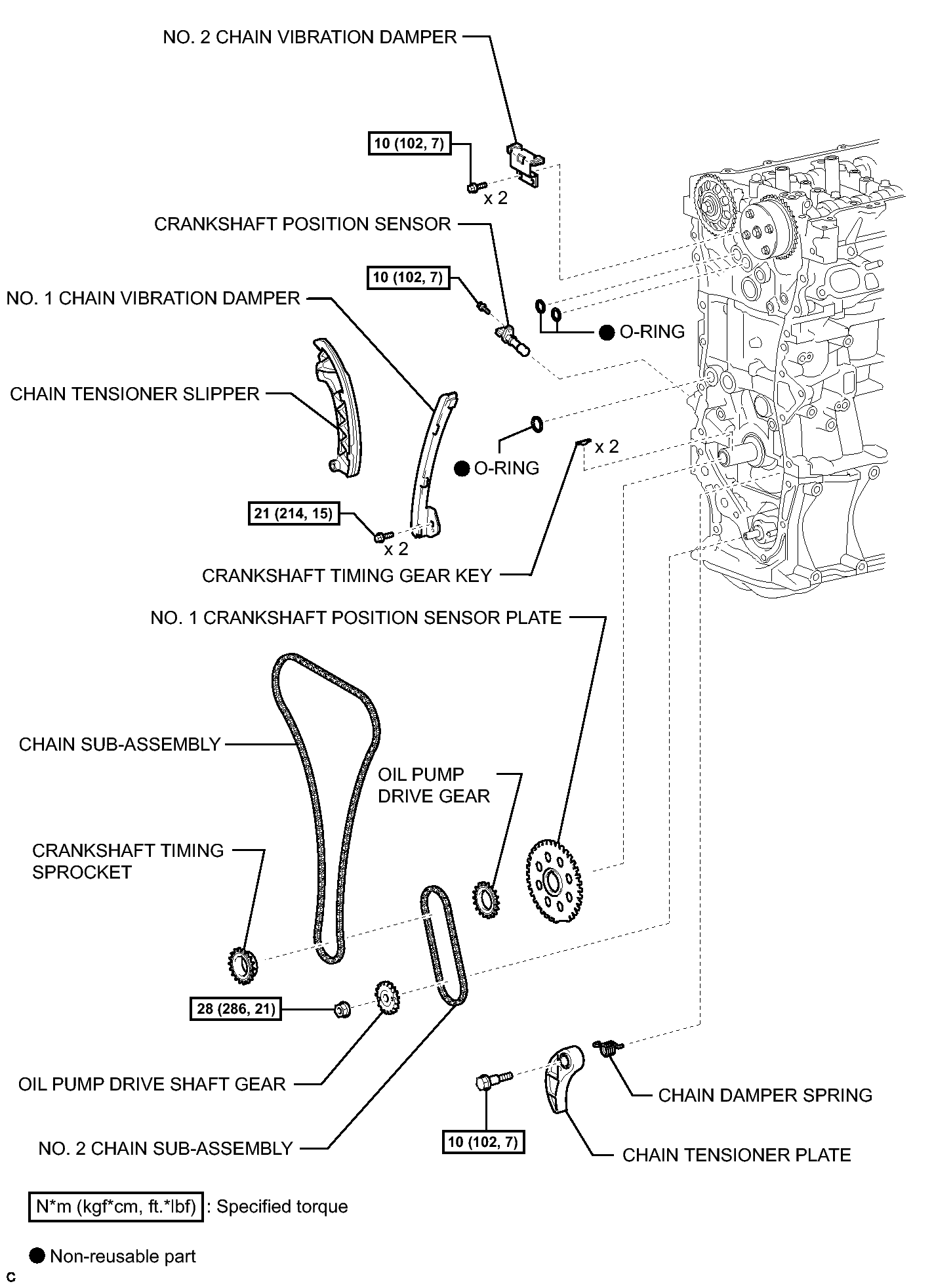

Fig 6: Engine Unit Exploded View With Torque Specifications (6 Of 8)
GTY227964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

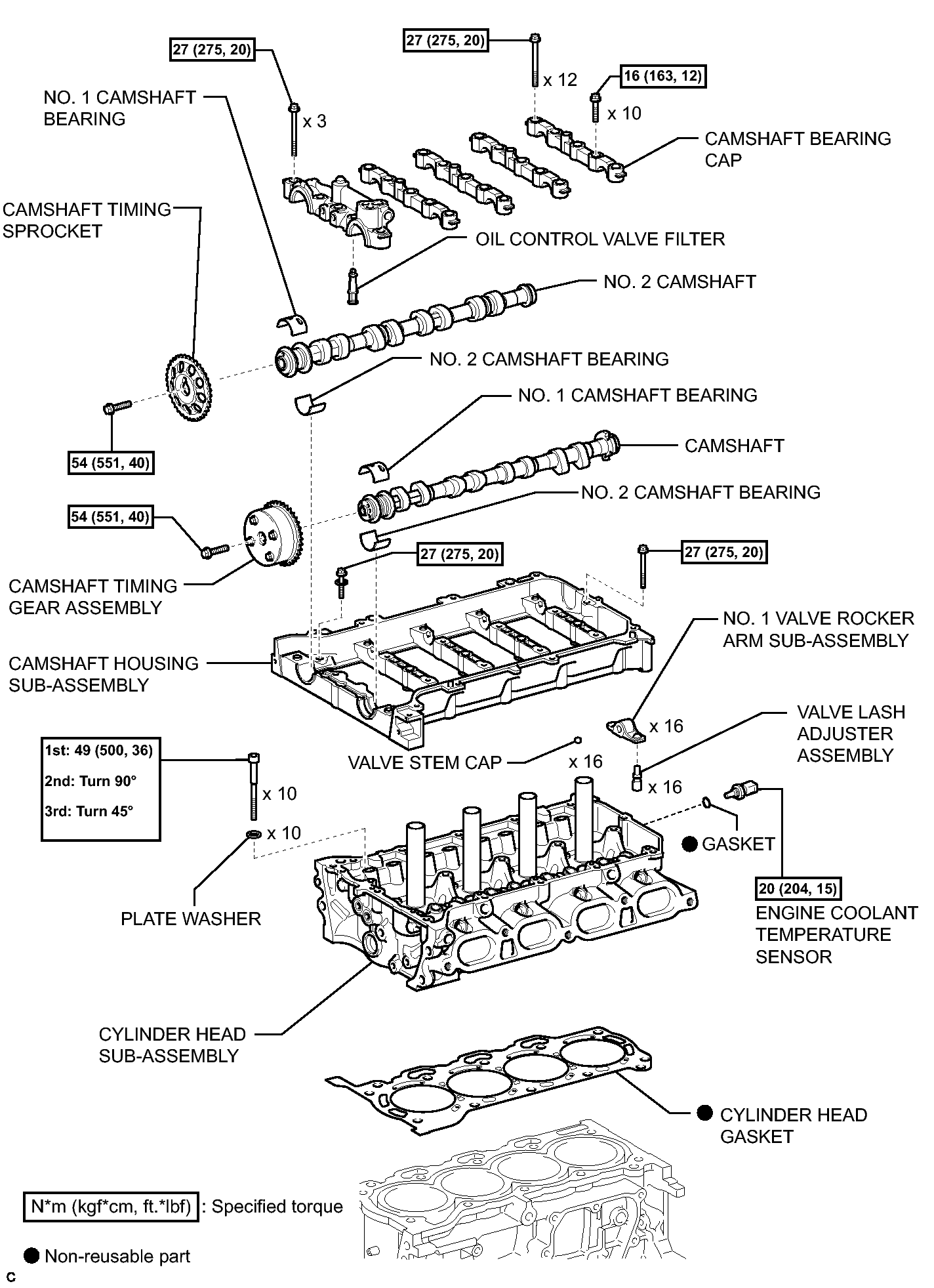

Fig 7: Engine Unit Exploded View With Torque Specifications (7 Of 8)
GTY224827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

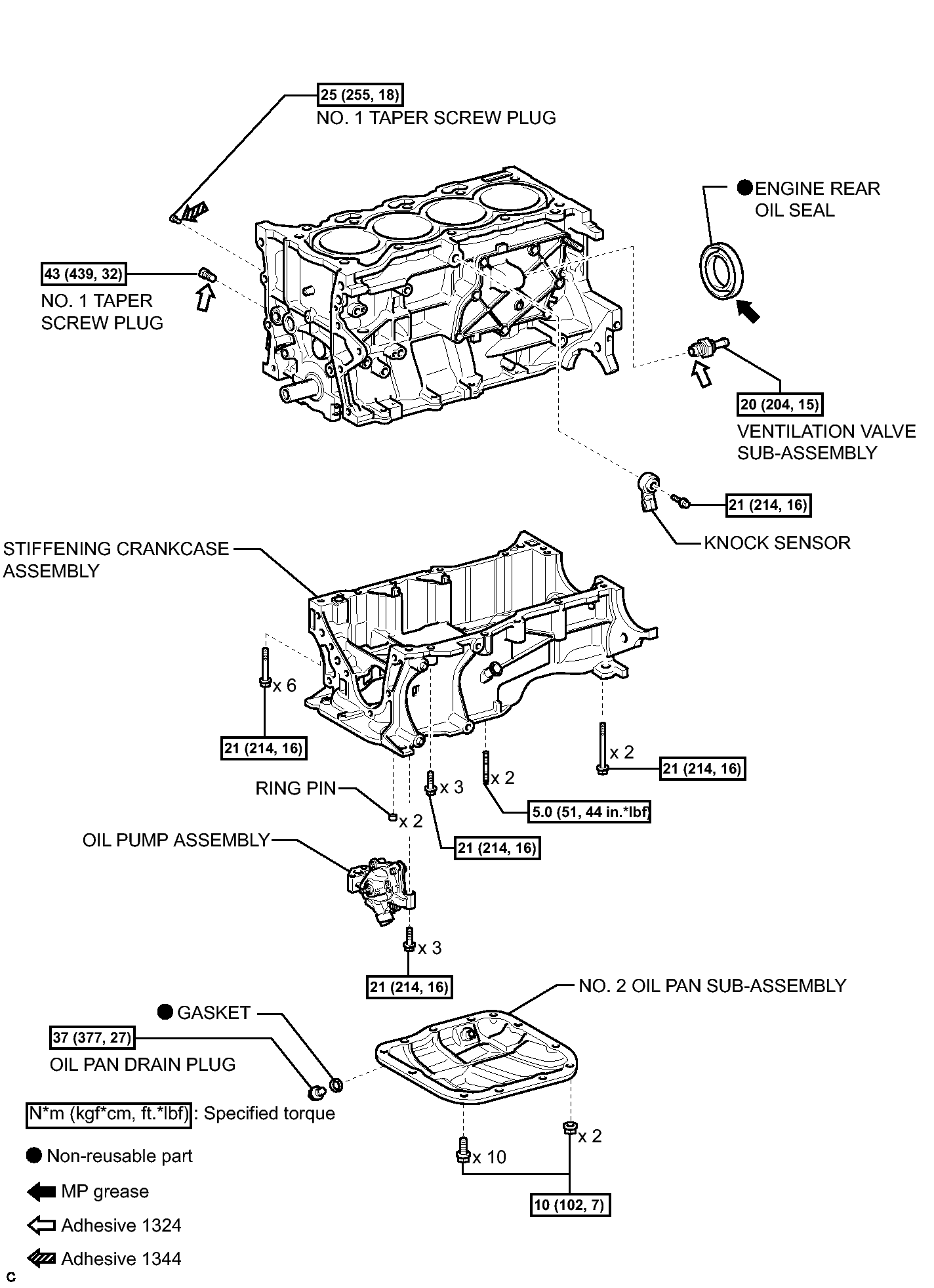

Fig 8: Engine Unit Exploded View With Torque Specifications (8 Of 8)
GTY293236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
