Parts Location: Illustration

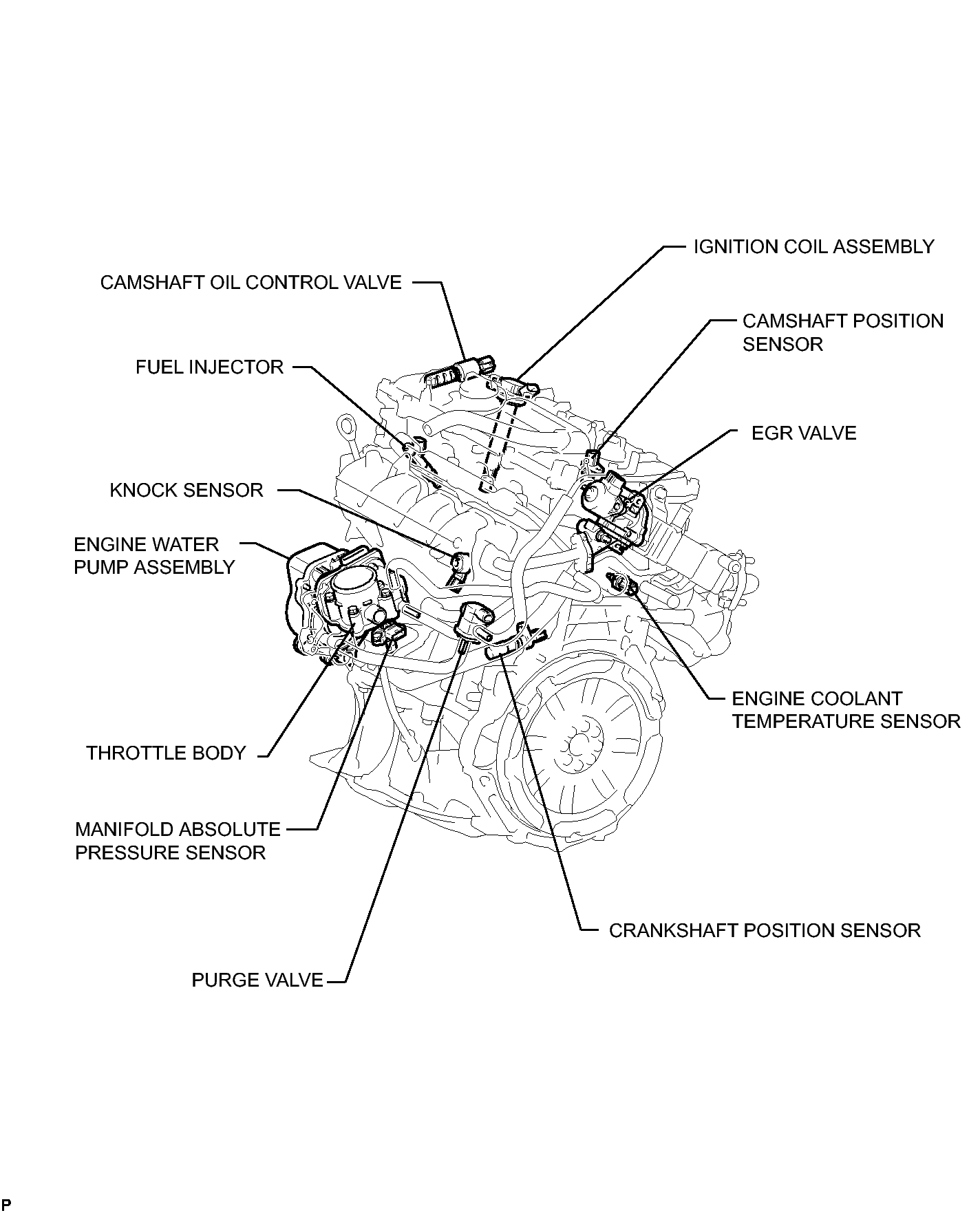

Fig 1: Identifying SFI System Component Location (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

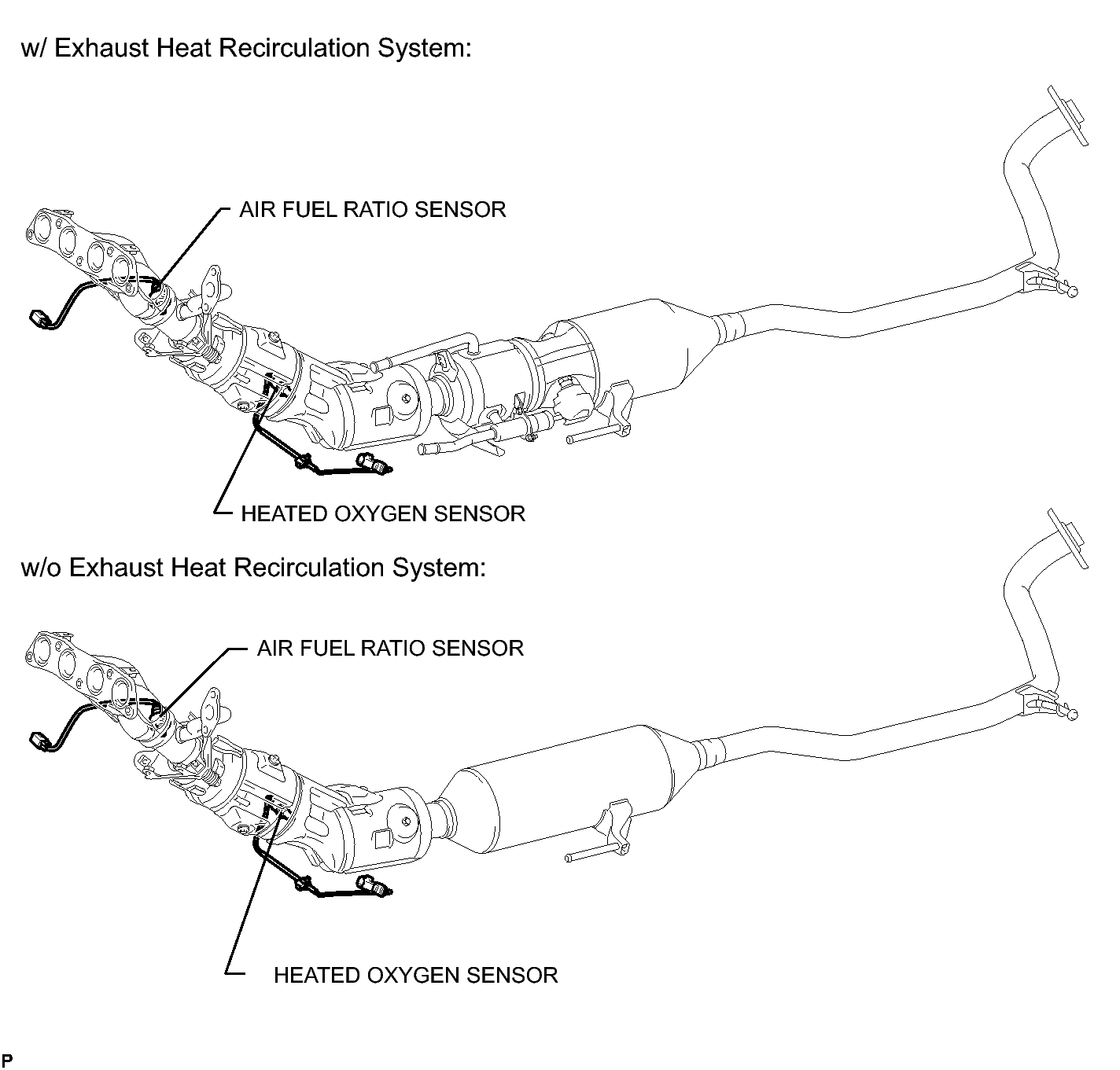

Fig 2: Identifying SFI System Component Location (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

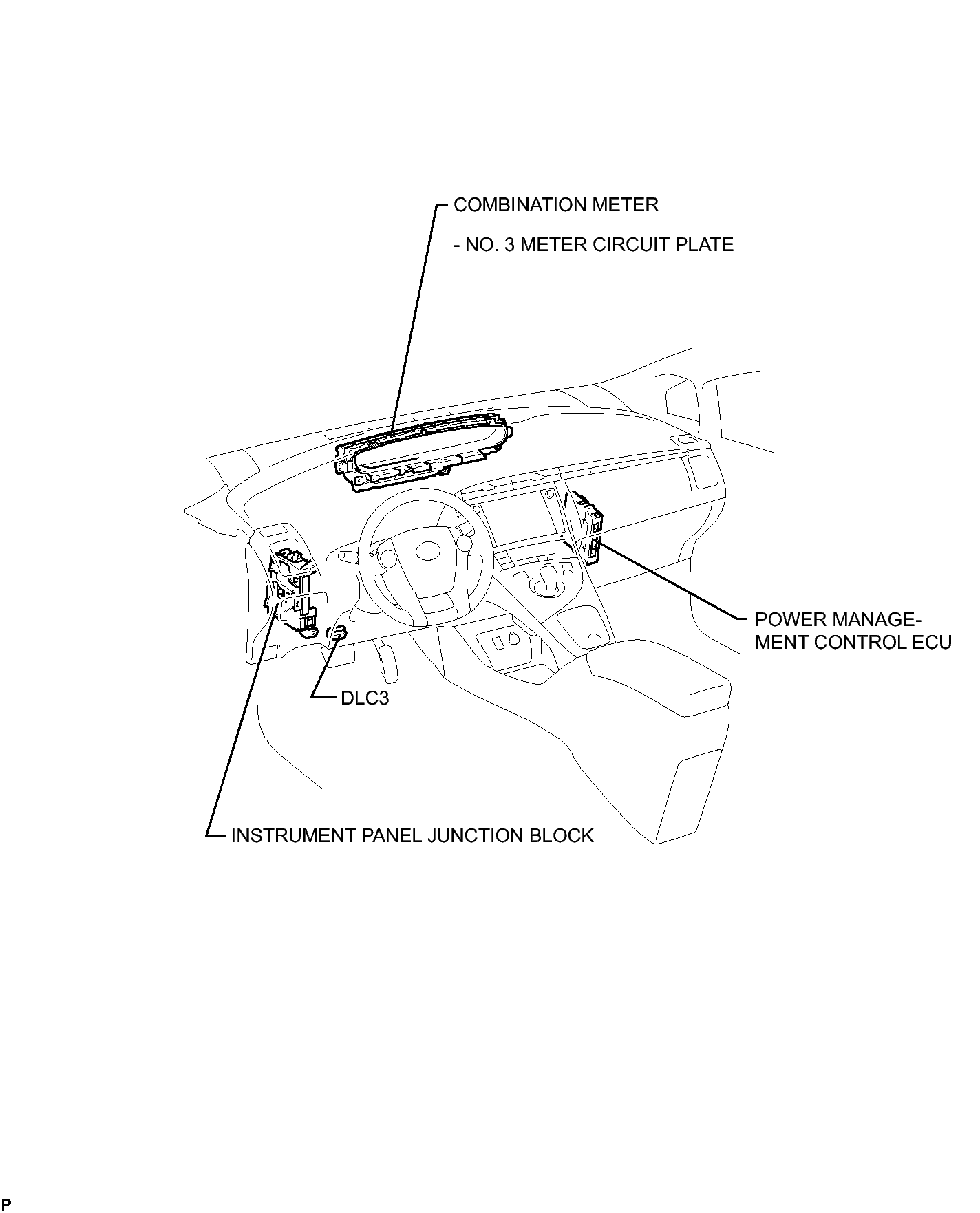

Fig 3: Identifying SFI System Component Location (3 Of 4)

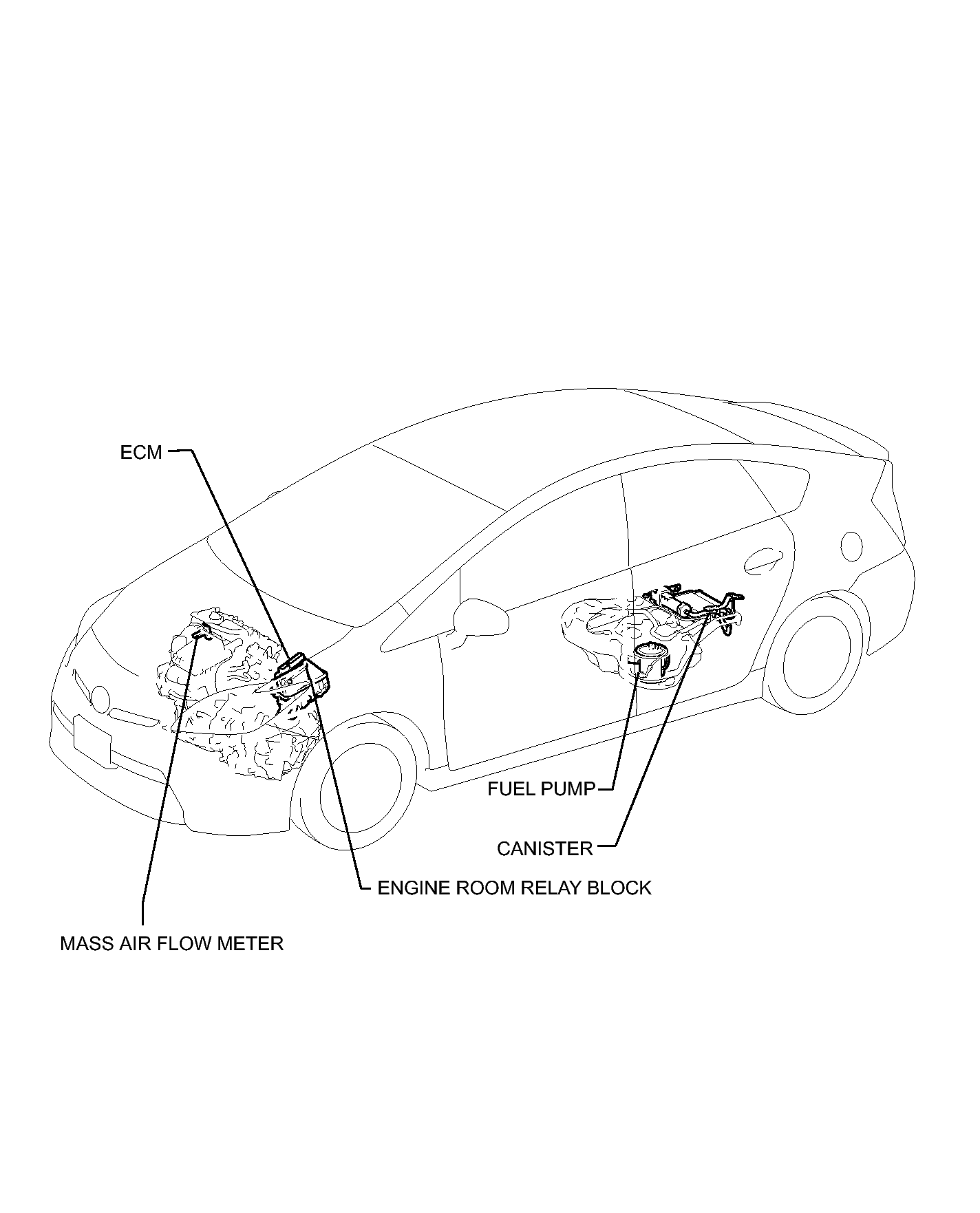

Fig 4: Identifying SFI System Component Location (4 Of 4)
