Engine Hood Courtesy Switch: Inspection: Inspection
WARNING: This page is about a different variant/trim than selected.
- INSPECT ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance

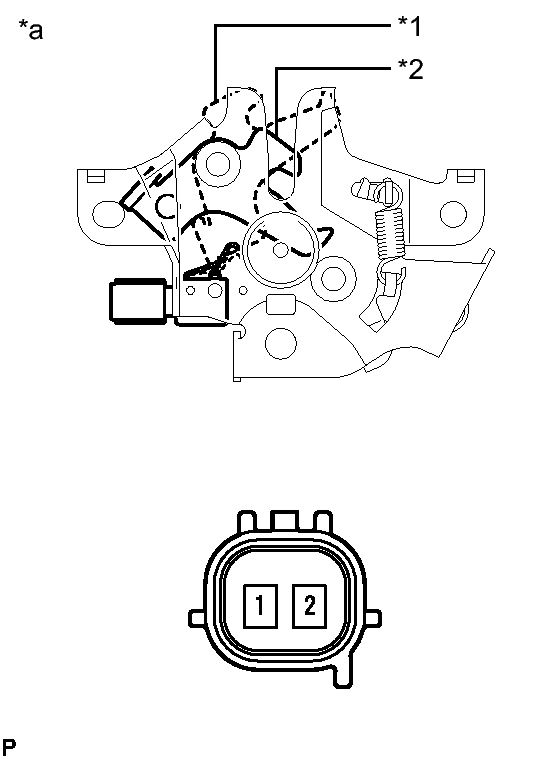

Tester Connection Condition Specified Condition 1 - 2 Locked Below 1 Ω 1 - 2 Unlocked 10 kΩ or higher TEXT IN ILLUSTRATION*1 Unlock *2 Lock *a Component without harness connected
(Hood Lock Assembly (Engine Hood Courtesy Switch))If the result is not as specified, replace the engine hood courtesy switch (hood lock assembly).
- Measure the resistance according to the value(s) in the table below.
