Front Passenger Side Power Window Switch: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

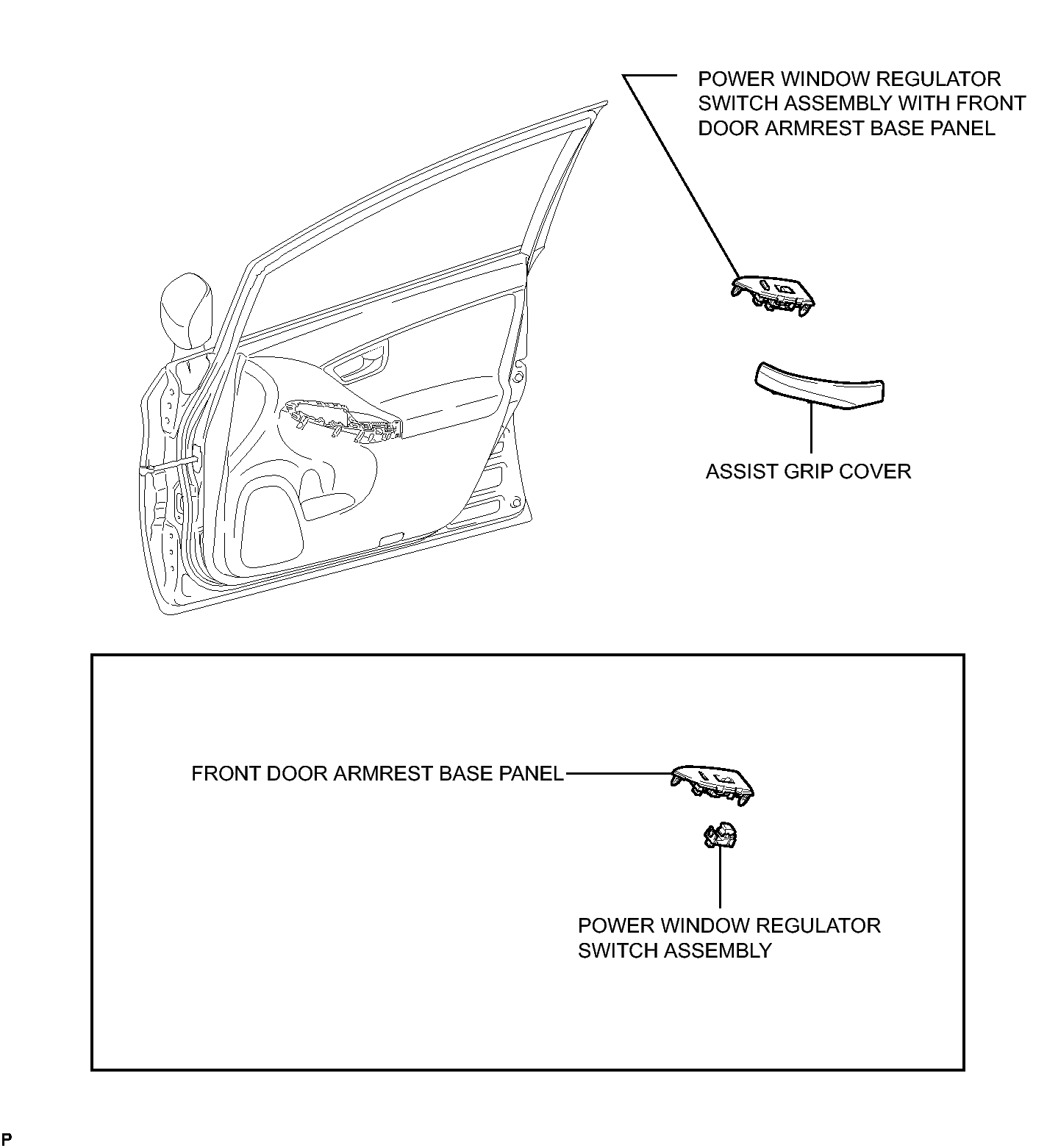

Fig 1: Identifying Front Passenger Side Power Window Switch Replacement Components
GTY229581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
