System Diagram

WARNING: This page is about a different variant/trim than selected.
  1. DOOR BUS LINES

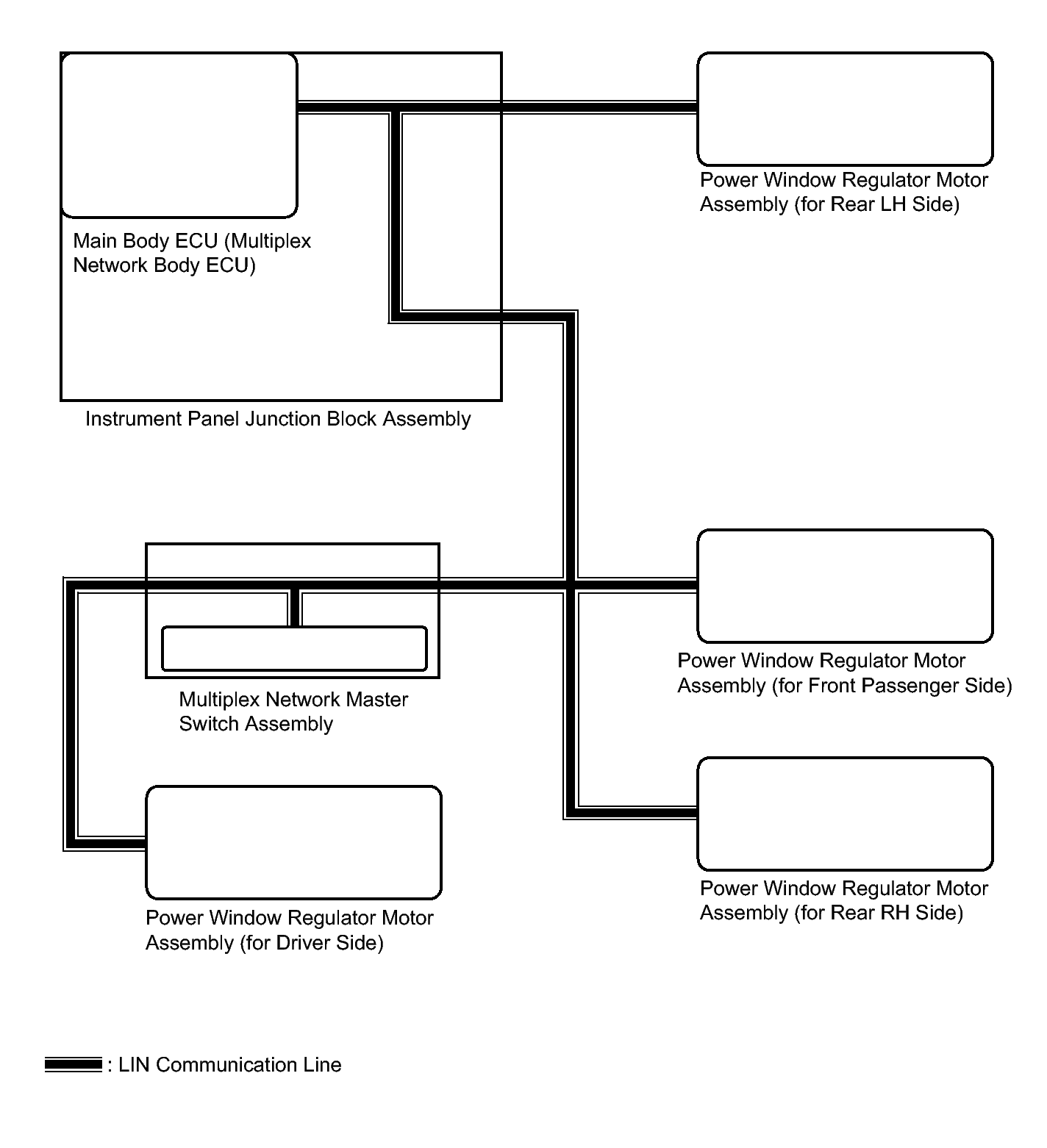

    Fig 1: Identifying LIN Communication (Door Bus Lines) System Diagram
    GTY230703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CERTIFICATION BUS LINES

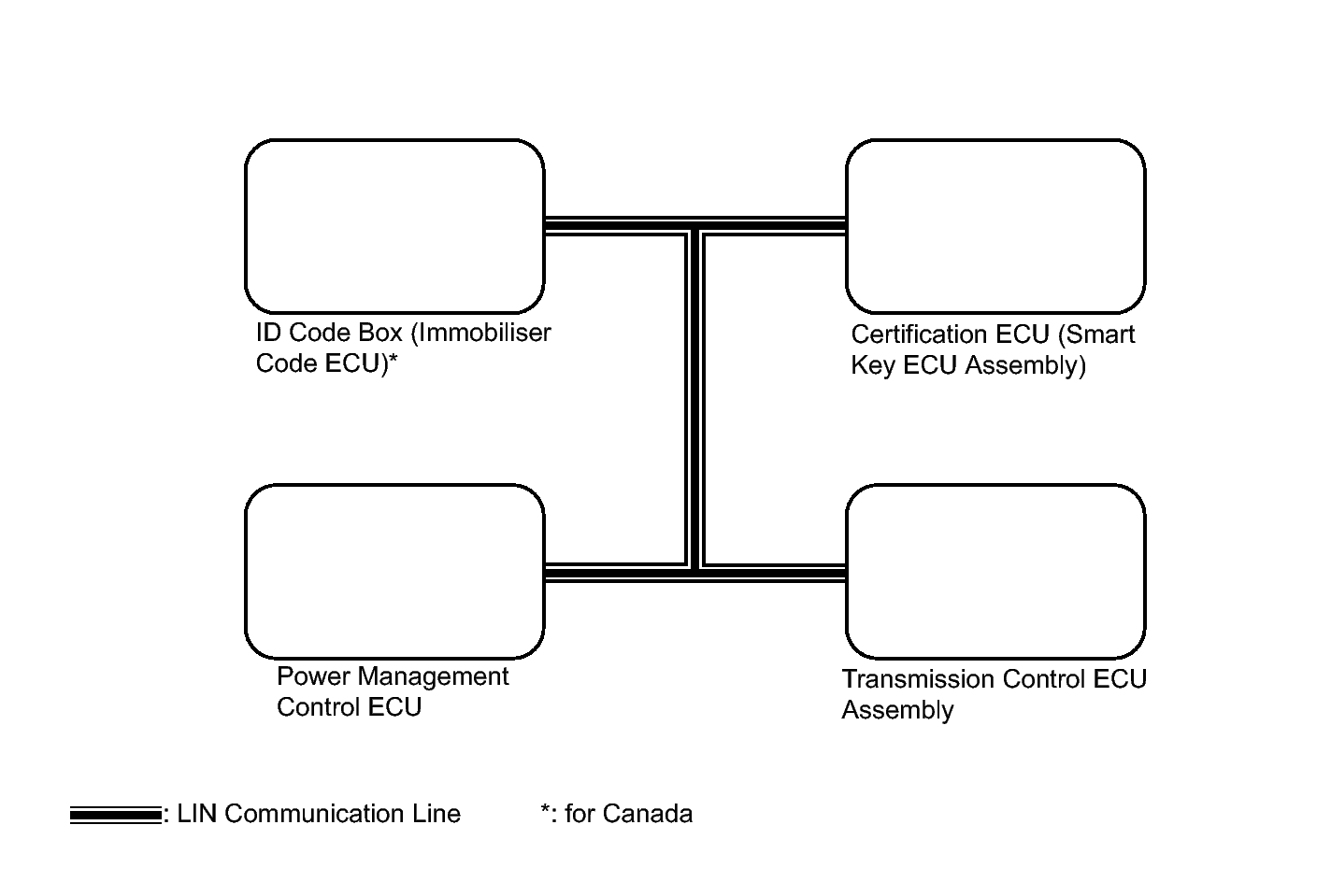

    Fig 2: Identifying LIN Communication (Certification Bus Lines) System Diagram
    GTY337084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. AIR CONDITIONING BUS LINES
    Fig 3: Identifying LIN Communication (Air Conditioning Bus Lines) System Diagram
    GTY235086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
