Millimeter Wave Radar Sensor: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE RADIATOR SUPPORT OPENING COVER  . Refer to REMOVAL - Step 1
  2. REMOVE FRONT BUMPER ASSEMBLY  . Refer to REMOVAL - Step 2
  3. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    1. Disconnect the connector.

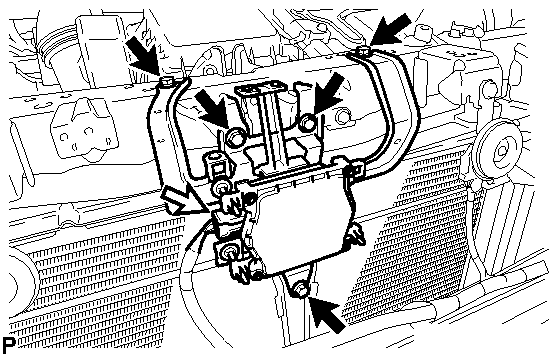

      Fig 1: Locating Millimeter Wave Radar Sensor Assembly, Connector & Bolts
      GTY218661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 5 bolts and millimeter wave radar sensor assembly.
