- INSPECT POWER SWITCH

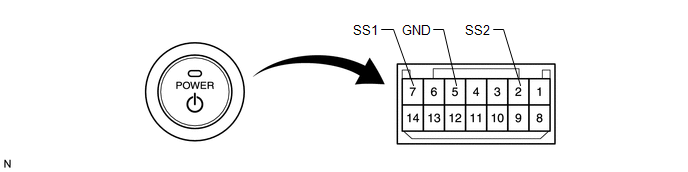

- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance
Tester Connection Switch Condition Specified Condition 7 (SS1) - 5 (GND) Pushed Below 1 Ω 2 (SS2) - 5 (GND) Pushed Below 1 Ω 7 (SS1) - 5 (GND) Not pushed 10 kΩ or higher 2 (SS2) - 5 (GND) Not pushed 10 kΩ or higher If the result is not as specified, replace the power switch.

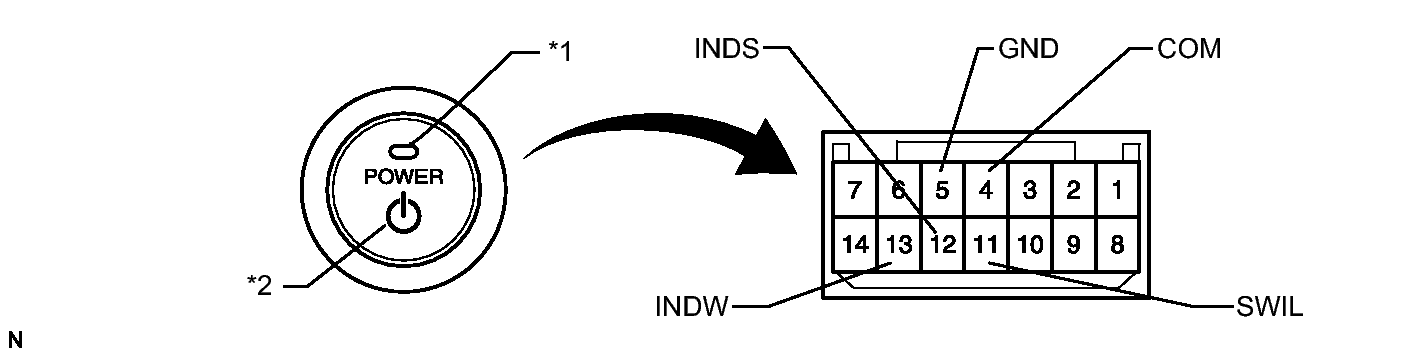

- Apply auxiliary battery voltage between the terminals of the switch, and check the illumination condition of the power switch.TEXT IN ILLUSTRATION
*1 Indicator Light *2 Power Switch Illumination Standard Resistance
Measurement Condition Specified Condition Auxiliary battery positive (+) →Terminal 11 (SWIL)
Battery negative (-) →Terminal 4 (COM) or 5 (GND)Illuminates
(Power Switch Illumination)Auxiliary battery positive (+) →Terminal 12 (INDS)
Auxiliary battery negative (-) →Terminal 4 (COM) or 5 (GND)Illuminates
(Indicator Light)Auxiliary battery positive (+) →Terminal 13 (INDW)
Auxiliary battery negative (-) →Terminal 4 (COM) or 5 (GND)Illuminates
(Indicator Light)If the result is not as specified, replace the power switch.
- Measure the resistance according to the value(s) in the table below.
