DTC B2036: Power Supply Relay Malfunction Open: Procedure

1. Disconnect the cable from the negative (-) battery terminal.

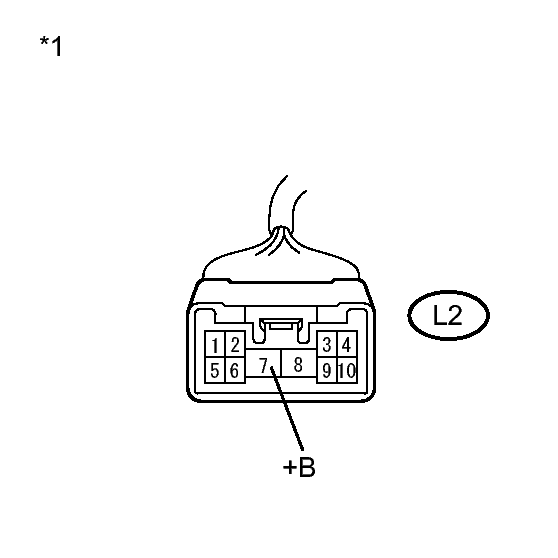

   Fig 1: Identifying Seat Belt Control ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   WARNING:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

2. Disconnect the seat belt control ECU connector.
3. Connect the cable to the negative (-) battery terminal.
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   L2-7 (+B) - Body ground	Power switch off	11 to 14 V

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Seat Belt Control ECU)

5. Disconnect the cable from the negative (-) battery terminal.
6. Reconnect seat belt control ECU connector.
7. Connect the cable to the negative (-) battery terminal.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (+B CIRCUIT)

OK → See step   2
