Electronic A/T Shift Lever System (Except Plug-In) (Diagnostics - Introduction)
>>
Electronic Shift Lever System
>>
System Diagram
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

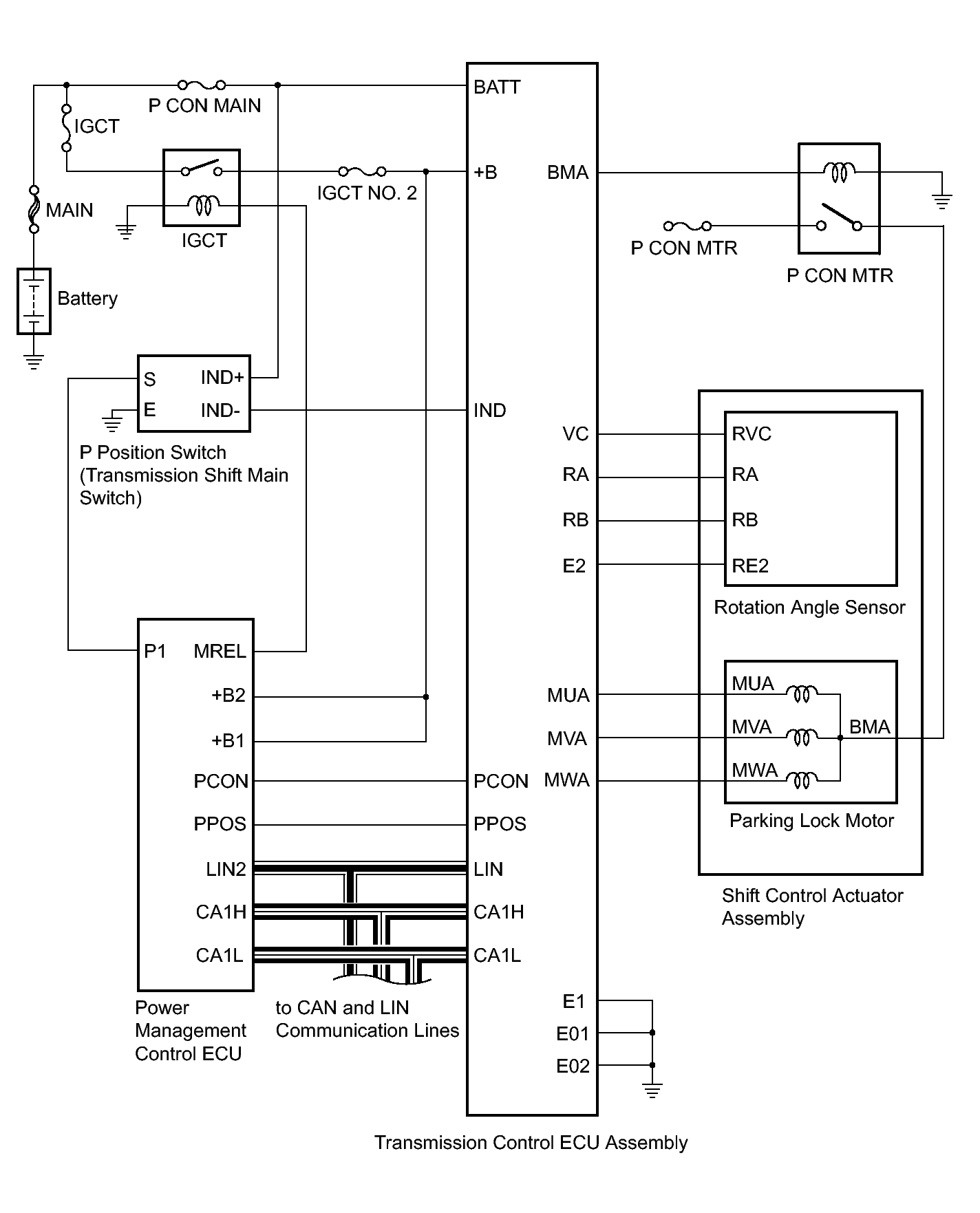

Fig 1: Identifying Transmission Control Assembly ECU Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
