Headlight Beam Level Control: Notes

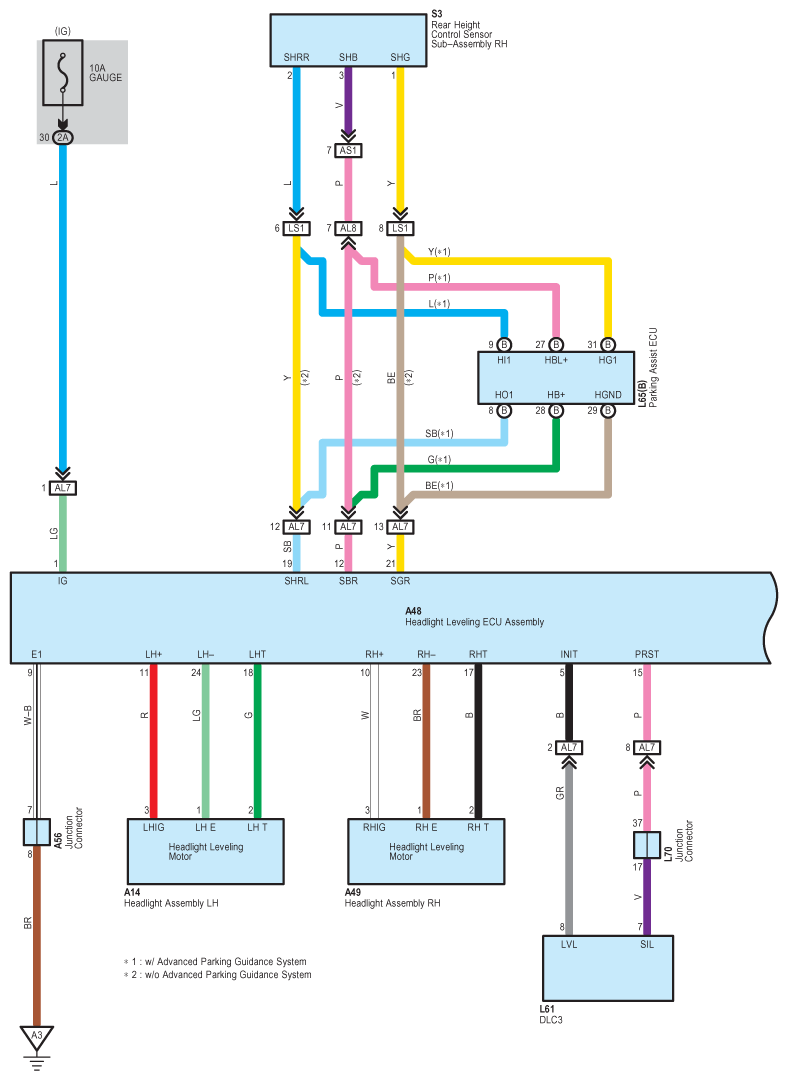

Fig 1: Headlight Beam Level Control (1 Of 5)

G08862877

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

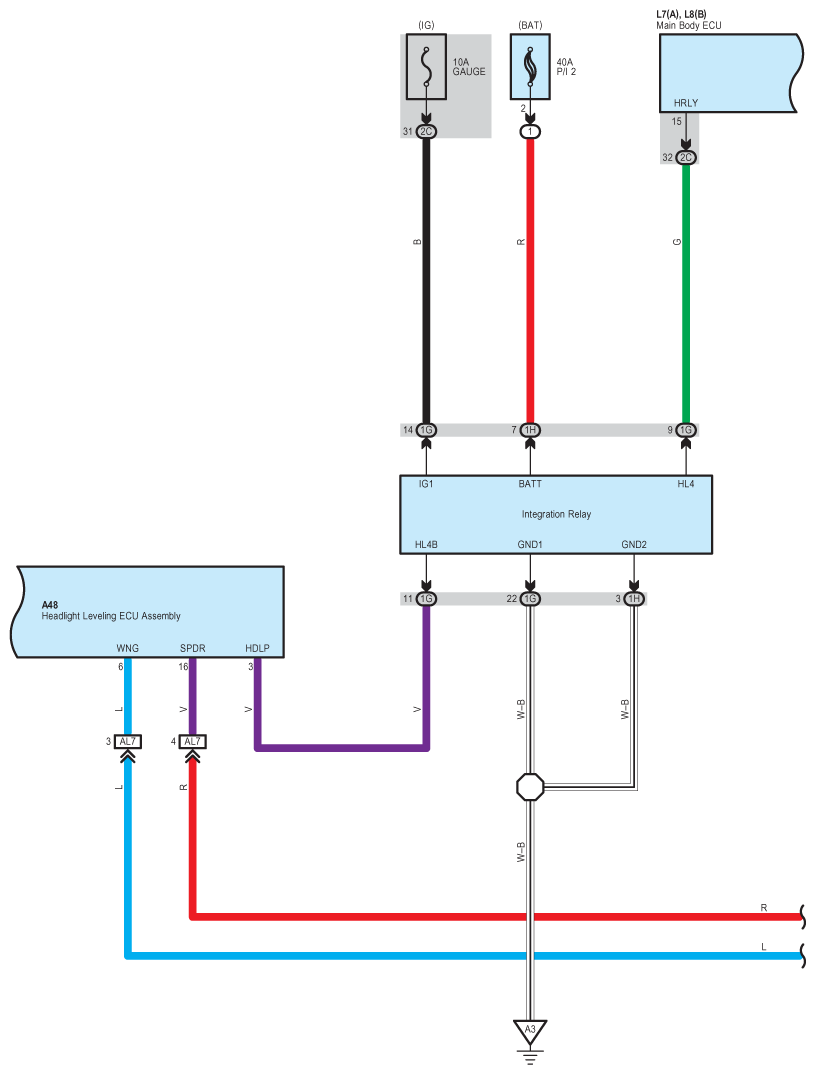

Fig 2: Headlight Beam Level Control (2 Of 5)

G08862878

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

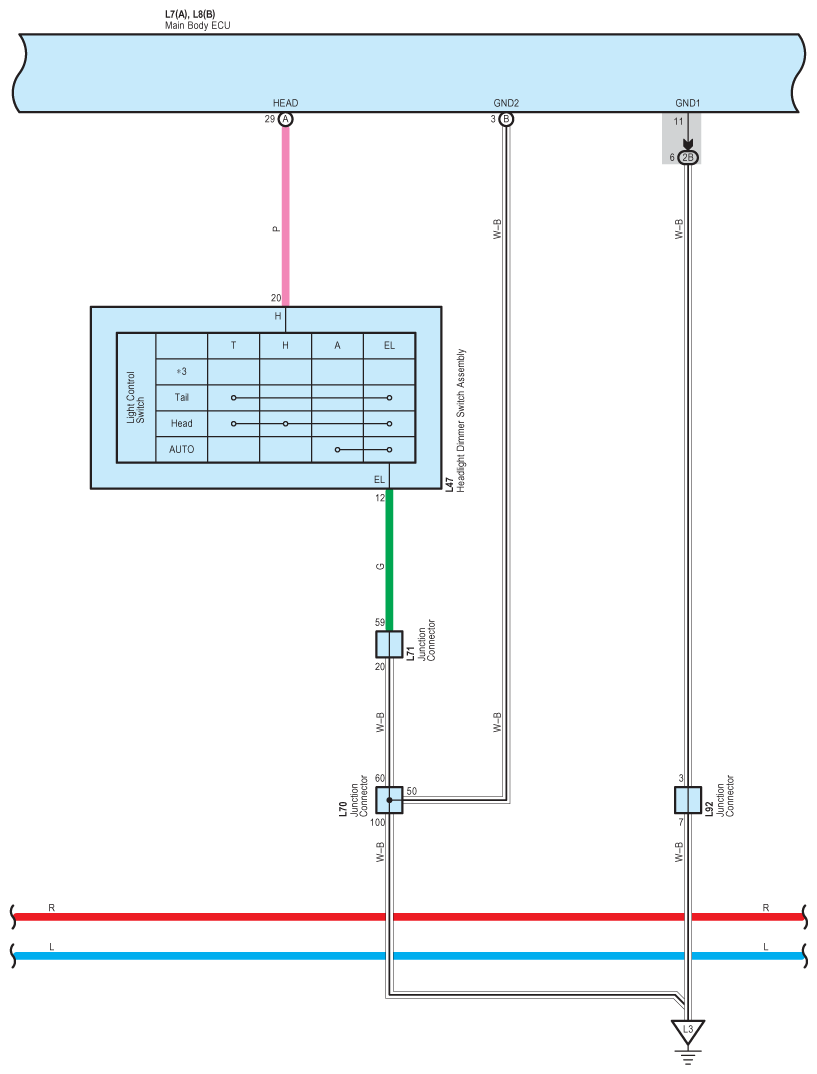

Fig 3: Headlight Beam Level Control (3 Of 5)

G08862879

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

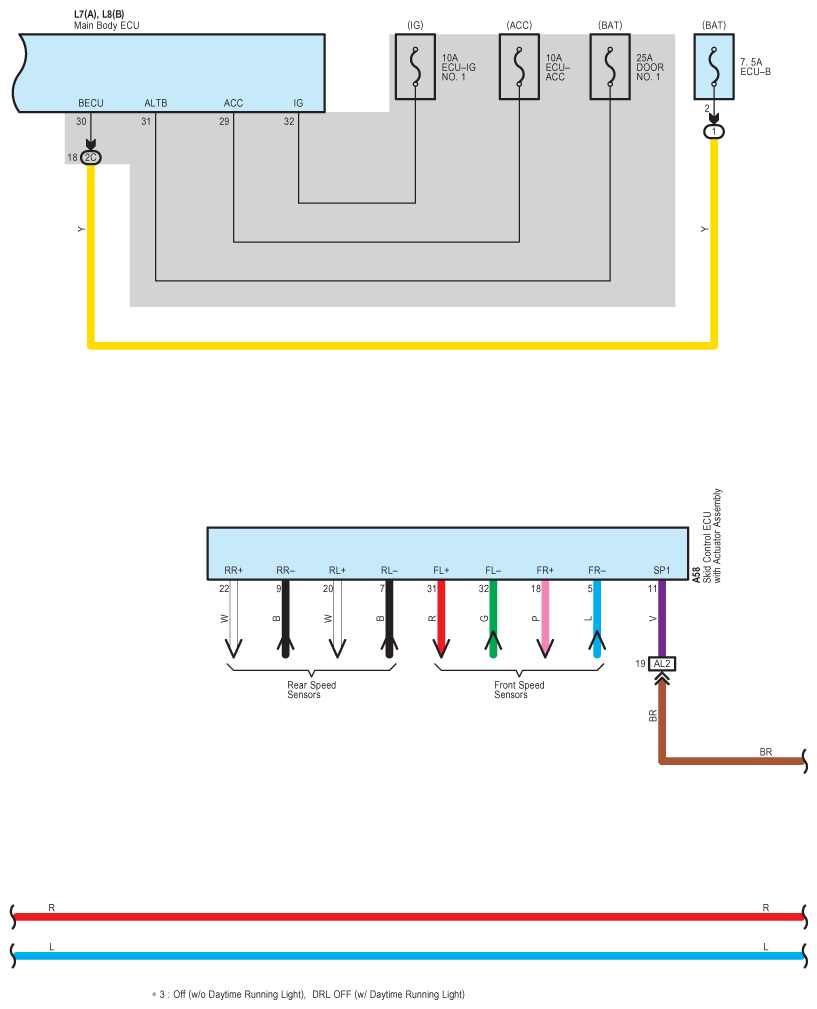

Fig 4: Headlight Beam Level Control (4 Of 5)

G08862880

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

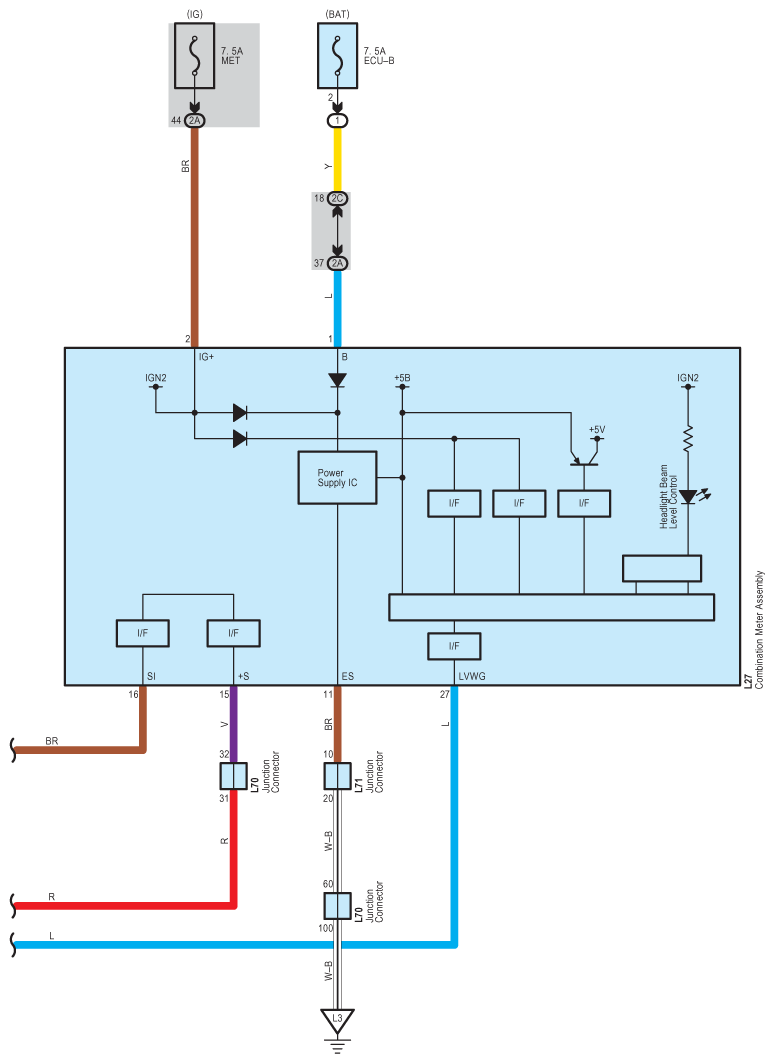

Fig 5: Headlight Beam Level Control (5 Of 5)

G08862881

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
