Pre-Collision Brake Cancel Switch: Components: Illustration

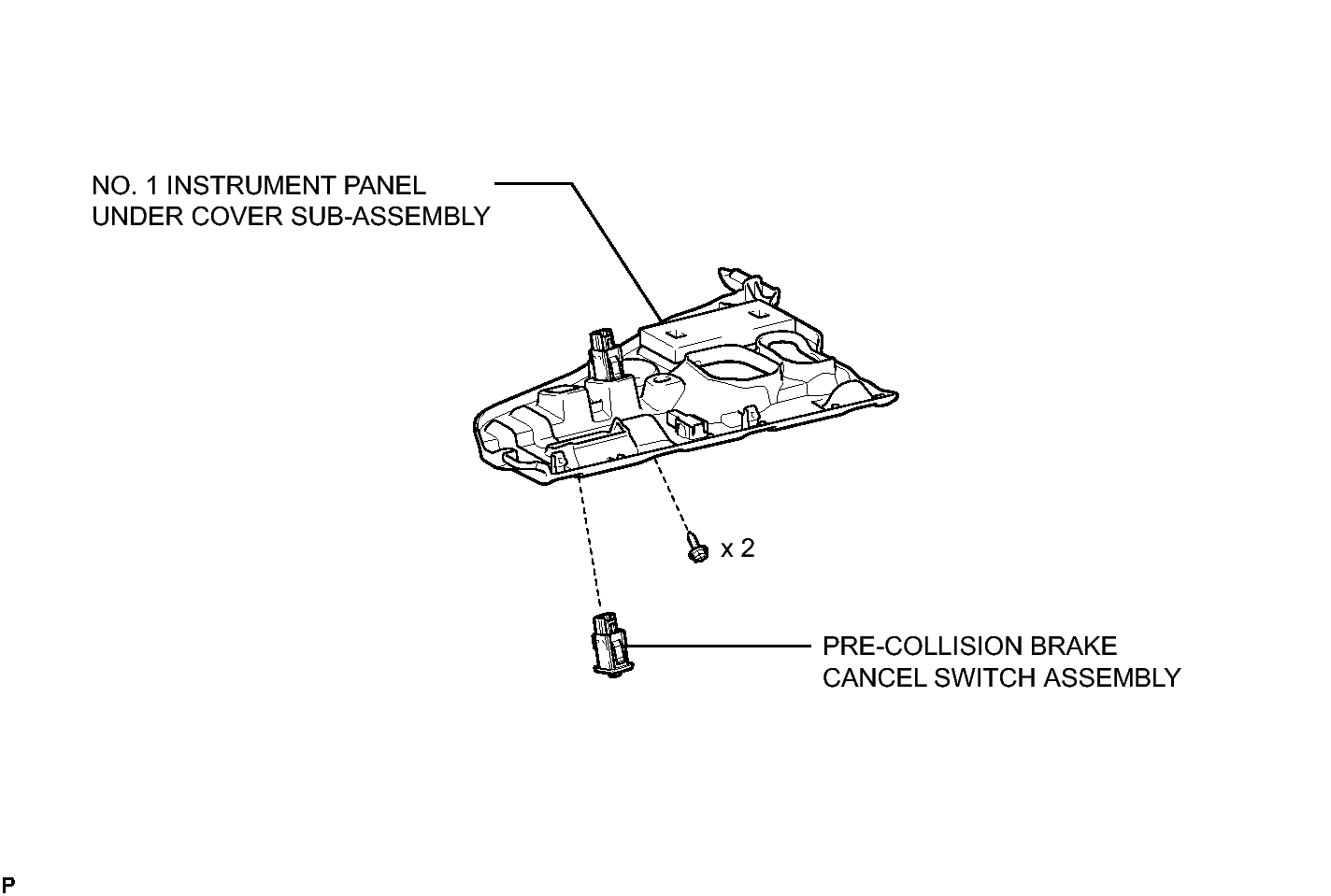

Fig 1: Pre-Collision Brake Cancel Switch Replacement Components
GTY325617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
