Center Airbag Sensor Assembly: Installation: Installation

  1. INSTALL AIRBAG ECU ASSEMBLY
    1. Check that the power switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Using SST, install the airbag ECU assembly with the 3 bolts.

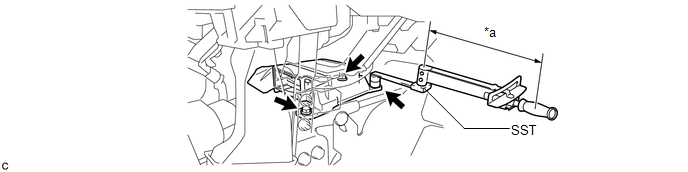

      Fig 1: Installing Airbag ECU Assembly
      GTY334835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09961-00950
      TEXT IN ILLUSTRATION

      *a Fulcrum Length - -

      without SST

      Torque: 18 N*m (178 kgf*cm, 13 ft.*lbf)

      with SST

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

      NOTE:
      • Use a torque wrench with a fulcrum length of 250 mm (9.84 in.).
      • This torque value is effective when SST is parallel to a torque wrench.
      • If the airbag ECU assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
      • When installing the airbag ECU assembly, be careful that the SRS wiring does not interfere with or is not pinched between other parts.
      • When the power switch is first turned on (IG) after the airbag ECU assembly has been replaced, make sure that no one is in the vehicle.
    4. Connect the connectors to the airbag ECU assembly as shown in the illustration.

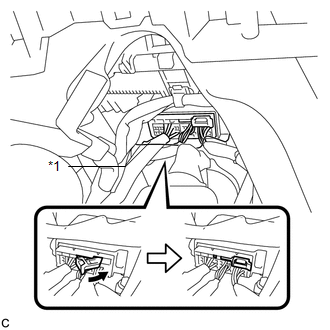

      Fig 2: Identifying Connectors & Airbag ECU Assembly
      GTY343645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Waterproof Sheet
      NOTE:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

    5. Check that the waterproof sheet is properly set.
    6. Check that there is no looseness in the installation parts of the airbag ECU assembly.
  2. INSTALL CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION

  3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  4. INSTALL DECK FLOOR BOX RH  . Refer to INSTALLATION - Step 55
  5. INSTALL REAR DECK FLOOR BOX  . Refer to INSTALLATION - Step 56
  6. INSTALL NO. 1 DECK BOARD  . Refer to INSTALLATION - Step 57
  7. INSTALL NO. 2 DECK BOARD  . Refer to INSTALLATION - Step 58
  8. INSTALL DECK BOARD ASSEMBLY  . Refer to INSTALLATION - Step 59
  9. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR

  10. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM
