Seat Position Sensor: Installation: Installation

1. Install the seat position airbag sensor to the seat slide position sensor protector with the pin as shown in the illustration.
   Fig 1: Installing Seat Position Airbag Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a 1.3 mm (0.0512 in.) feeler gauge, temporarily install the seat position airbag sensor.

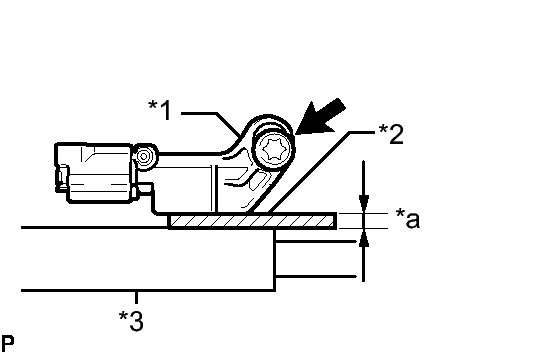

   Fig 2: Identifying "TORX" Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Seat Position Airbag Sensor
   *2	Feeler Gauge
   *3	Seat Rail
   *a	1.3 mm (0.0512 in.)

   NOTE:

   • If the seat position airbag sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the seat position airbag sensor with a new one.
   • When installing the seat position airbag sensor, be careful that the SRS wiring does not interfere with or is pinched between other parts.

   HINT:

   Be sure that the clearance between the seat position airbag sensor and seat rail is between 0.6 mm (0.0236 in.) and 2.0 mm (0.0787 in.).

3. Using a T30 "TORX" socket wrench, tighten the "TORX" screw to install the seat position airbag sensor.
   Fig 3: Identifying Seat Position Sensor Connector And Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

4. Make sure that the clearance between the seat position airbag sensor and seat rail is between 0.6 mm (0.0236 in.) and 2.0 mm (0.0787 in.).
5. Install the wire harness to the seat slide position sensor protector.
6. Connect the connector.
7. Check that there is no looseness in the installation parts of the seat position airbag sensor.

Refer to INSTALLATION

Refer to DTC CHECK / CLEAR
