Installation

2GR-FE ENGINE CONTROL SYSTEM: VVT SENSOR: INSTALLATION

1. INSTALL VVT SENSOR

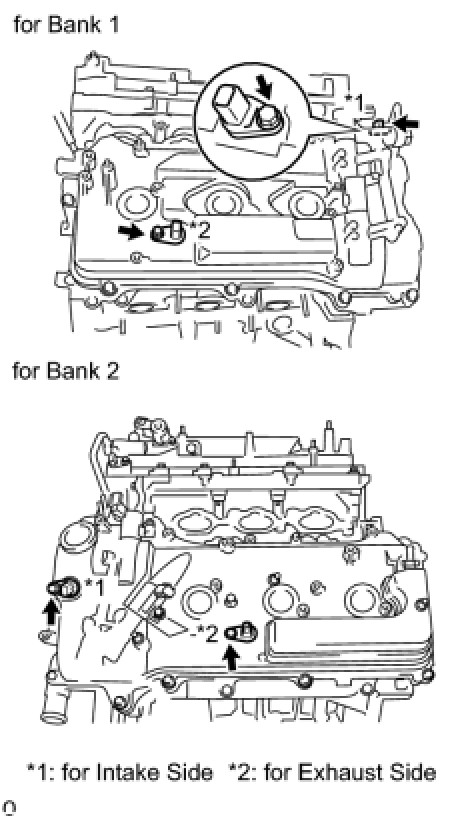

(a) Install the 4 sensors with the 4 bolts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Connect the 4 sensor connectors.

2. INSTALL INTAKE AIR SURGE TANK ASSEMBLY

(a) Install the intake air surge tank assembly Installation.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
