Installation

2GR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSTALLATION

1. INSTALL CRANKSHAFT POSITION SENSOR





(a) Apply a coat of engine oil to an O-ring of the sensor.

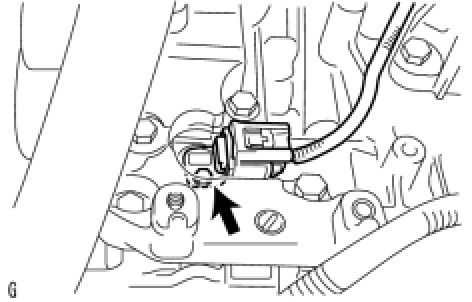

(b) Install the sensor with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(c) Connect the sensor connector.

2. CONNECT COMPRESSOR WITH PULLEY ASSEMBLY

(a) Connect the compressor with pulley Installation.
