Installation

2GR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

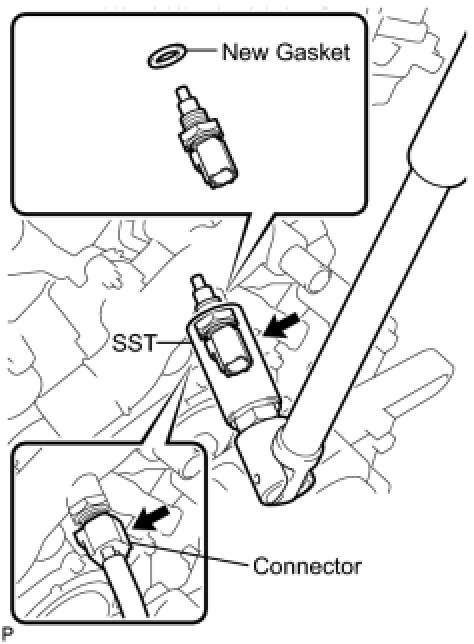

(a) Install a new gasket onto the sensor.





(b) Using SST, install the sensor.

SST : 09817-33190

Torque : 19.6 Nm (200 kgf-cm, 14 ft-lbf)

(c) Connect the sensor connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

3. ADD ENGINE COOLANT Service and Repair

4. CHECK FOR COOLANT LEAKS Testing and Inspection
