Engine Temperature Sensor: Testing and Inspection

2GR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSPECTION

1. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

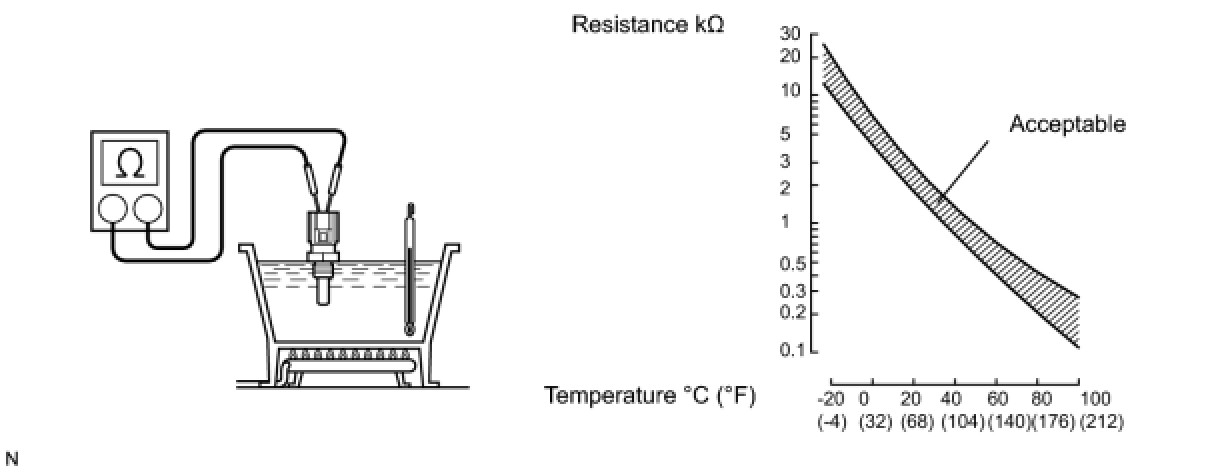

(a) Measure the resistance of the sensor.





Standard resistance:





NOTICE:
If checking the sensor in water, be careful not to allow water to contact the terminals. After checking, wipe the water off the sensor.

If the result is not as specified, replace the sensor.
