Knock Sensor: Testing and Inspection

2GR-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR: INSPECTION

1. INSPECT KNOCK SENSOR

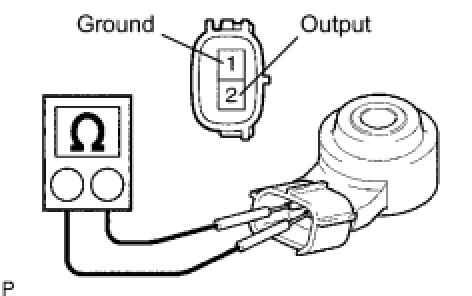

(a) Measure the resistance of the sensor.





Standard resistance:





If the result is not as specified, replace the knock sensor.
