Toyota
>>
2012
>>
RAV4 2WD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Locations
>>
Fuel System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuel System

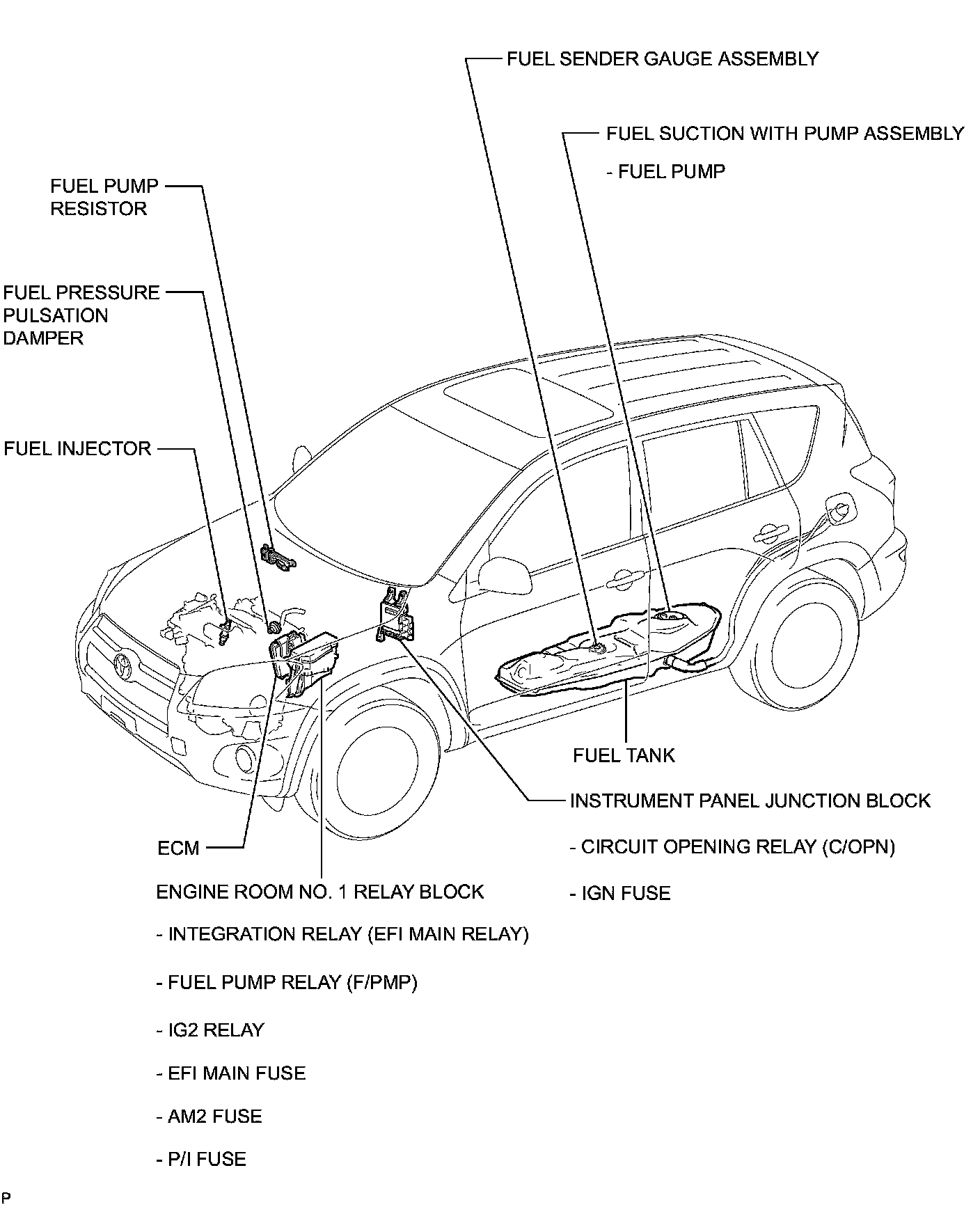

2GR-FE FUEL: FUEL SYSTEM: PARTS LOCATION
