Terminals Of Ecu

  1. CHECK MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)

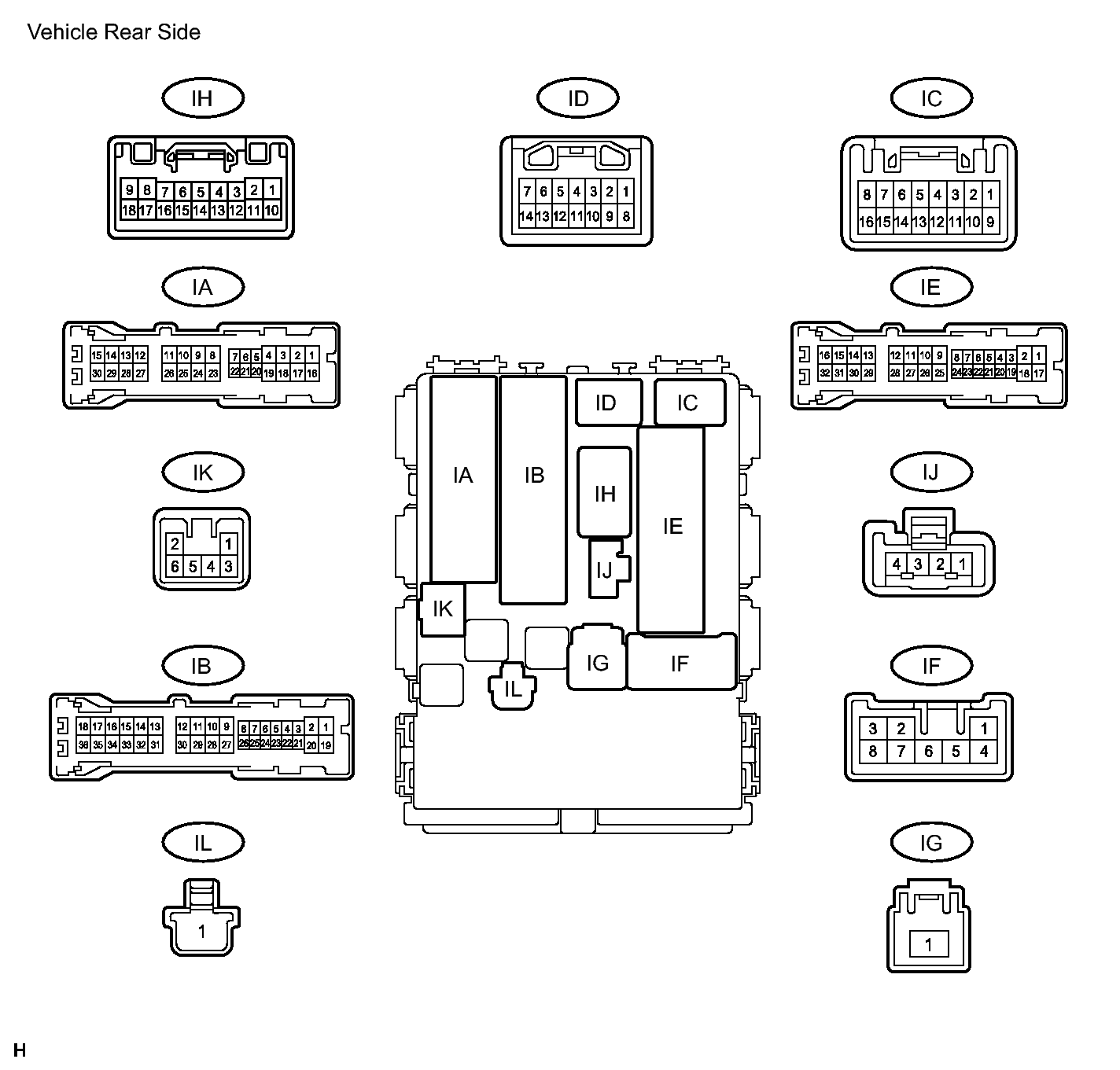

    Fig 1: Instrument Panel Junction Block (Main Body ECU) Connector Terminal Identification (1 Of 2)
    GTY246005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

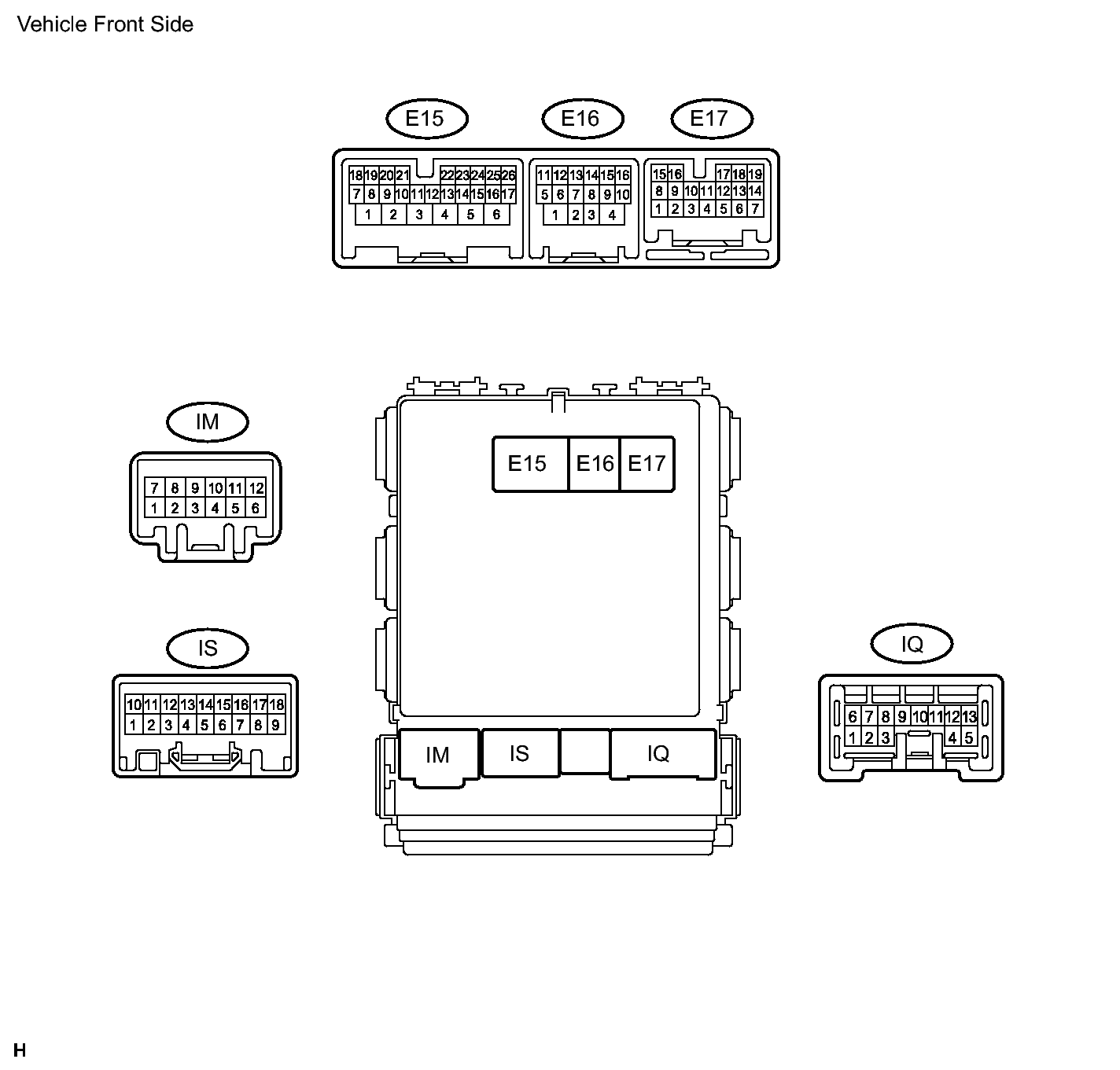

    Fig 2: Instrument Panel Junction Block (Main Body ECU) Connector Terminal Identification (2 Of 2)
    GTY239050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the ID, IE, E15 and E16 junction block connectors.
    2. Measure the voltage and resistance according to the value(s) in the table below.
      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      E16-1 (AM1) - Body ground W - Body ground +B power supply Always 11 to 14 V
      E15-6 (AM2) - Body ground W - Body ground +B power supply Always 11 to 14 V
      E16-10 (SSW1) - Body ground W - Body ground Engine switch signal Engine switch pushed Below 1 Ω
      E16-10 (SSW1) - Body ground W - Body ground Engine switch signal Engine switch not pushed 10 kΩ or higher
      E16-9 (SSW2) - Body ground B - Body ground Engine switch signal Engine switch pushed Below 1 Ω
      E16-9 (SSW2) - Body ground B - Body ground Engine switch signal Engine switch not pushed 10 kΩ or higher
      IE-17 (GND1) - Body ground W-B - Body ground Ground Always Below 1 Ω
      E16-4 (GND2) - Body ground W-B - Body ground Ground Always Below 1 Ω
      ID-9 (LIN1) - Body ground V - Body ground LIN line Always 10 kΩ or higher

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the ID, IE, E15 and E16 junction block connectors.
    4. Measure the voltage according to the value(s) in the table below.
      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      E15-4 (ACCD) - E16-4 (GND2) R - W-B ACC signal Engine switch on (ACC) 11 to 14 V
      E15-4 (ACCD) - E16-4 (GND2) R - W-B ACC signal Engine switch off Below 1 V
      E16-5 (IG2D) - E16-4 (GND2) W - W-B IG2 signal Engine switch on (IG) 11 to 14 V
      E16-5 (IG2D) - E16-4 (GND2) W - W-B IG2 signal Engine switch on (ACC) Below 1 V
      E15-7 (SLR+) - E16-4 (GND2) Y - W-B Steering lock motor signal Steering lock motor operating Below 1 V
      E15-7 (SLR+) - E16-4 (GND2) Y - W-B Steering lock motor signal Steering lock motor not operating 11 to 14 V
      E15-18 (SLP) - E16-4 (GND2) G - W-B Steering lock actuator position signal Steering lock locked 11 to 14 V
      E15-18 (SLP) - E16-4 (GND2) G - W-B Steering lock actuator position signal Steering lock released Below 1 V
      IC-8 (SPD) - E16-4 (GND2) V - W-B Speed signal from combination meter Engine switch on (IG), Drive wheel rotating slowly Pulse generation
      (see waveform 1)
      E17-2 (TACH) - E16-4 (GND2) GR - W-B Tachometer signal Engine running Pulse generation
      (see waveform 2)
      E17-4 (STSW) - E16-4 (GND2) R - W-B Starter activation request signal Brake pedal depressed with shift lever in P or N, engine switch pushed once 11 to 14 V*
      E17-3 (STR) - E16-4 (GND2) W - W-B Park/neutral position switch Shift lever in P or N Below 1 V
      E17-14 (STR2) - E16-4 (GND2) W - W-B Starter signal Brake pedal depressed with shift lever in P or N, engine switch pushed once 11 to 14 V*
      E17-1 (INDS) - E16-4 (GND2) R - W-B Vehicle condition signal Brake pedal depressed with shift lever in P or N, engine switch off, on (ACC) or on (IG) 11 to 14 V
      E17-8 (INDW) - E16-4 (GND2) Y - W-B Vehicle condition signal Brake pedal released with shift lever in P or N, engine switch off, on (ACC) or on (IG) 11 to 14 V
      E16-8 (SWIL) - E16-4 (GND2) G - W-B Illumination signal Light control switch TAIL or HEAD 11 to 14 V
      E15-14 (STP) - E16-4 (GND2) L - W-B Stop light switch signal Brake pedal depressed 11 to 14 V

      HINT:

      *: Voltage is output for 0.3 seconds before the engine is started.

      If the result is not as specified, the ECU may have a malfunction.

    5. Using an oscilloscope, check waveform 1.

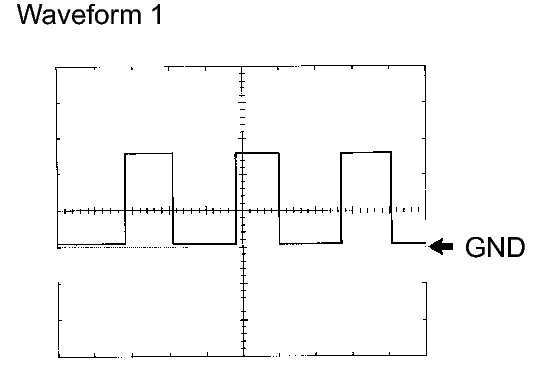

      Fig 3: Identifying Waveform 1
      GTY227446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WAVEFORM 1 (REFERENCE)

      Item Content
      Terminal No. (Symbol) IC-8 (SPD) - E16-4 (GND2)
      Tool Setting 5 V/DIV., 10 msec./DIV.
      Condition Driving at approx. 20 km/h (12 mph)

      HINT:

      As the vehicle speed increases, the wavelength shortens.

    6. Using an oscilloscope, check waveform 2.

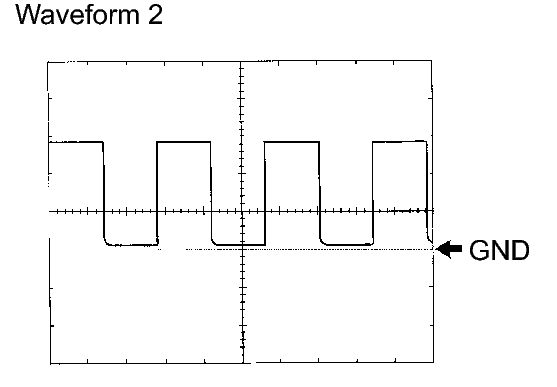

      Fig 4: Identifying Waveform 2
      GTY224806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WAVEFORM 2 (REFERENCE)

      Item Content
      Terminal No. (Symbol) E17-2 (TACH) - E16-4 (GND2)
      Tool Setting 5 V/DIV., 10 msec./DIV.
      Condition Engine idling

      HINT:

      As the engine speed increases, the wavelength shortens.

  2. CHECK CERTIFICATION ECU

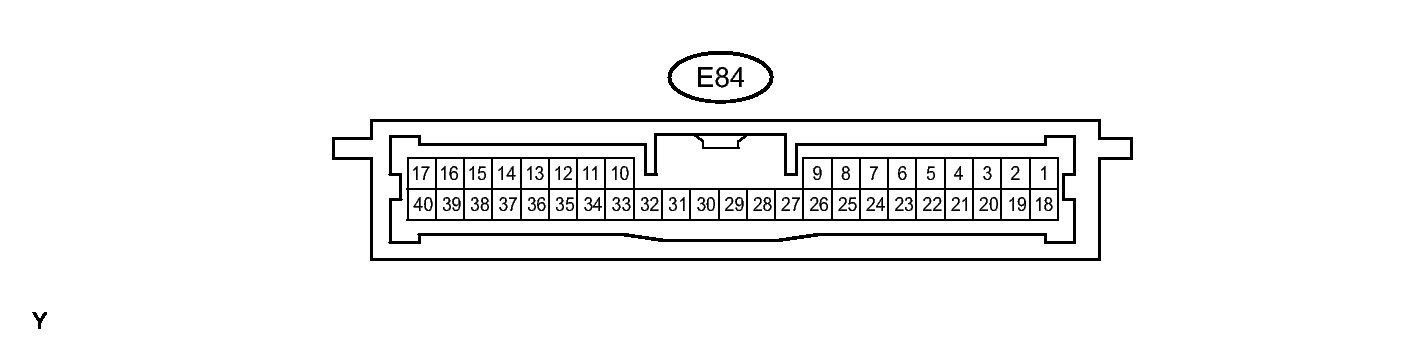

    Fig 5: E84 Certification ECU Connector Terminal Identification
    GTY218733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E84 ECU connector.
    2. Measure the voltage and resistance according to the value(s) in the table below.
      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      E84-1 (+B1) - Body ground R - Body ground +B power supply Always 11 to 14 V
      E84-18 (IG) - Body ground B - Body ground Ignition power supply Engine switch on (IG) 11 to 14 V
      E84-18 (IG) - Body ground B - Body ground Ignition power supply Engine switch off Below 1 V
      E84-10 (LIN) - Body ground V - Body ground LIN line Always 10 kΩ or higher
      E84-17 (E) - Body ground W-B - Body ground Ground Always Below 1 Ω

      If the result is not as specified, there may be a malfunction on the wire harness side.

  3. CHECK ECM

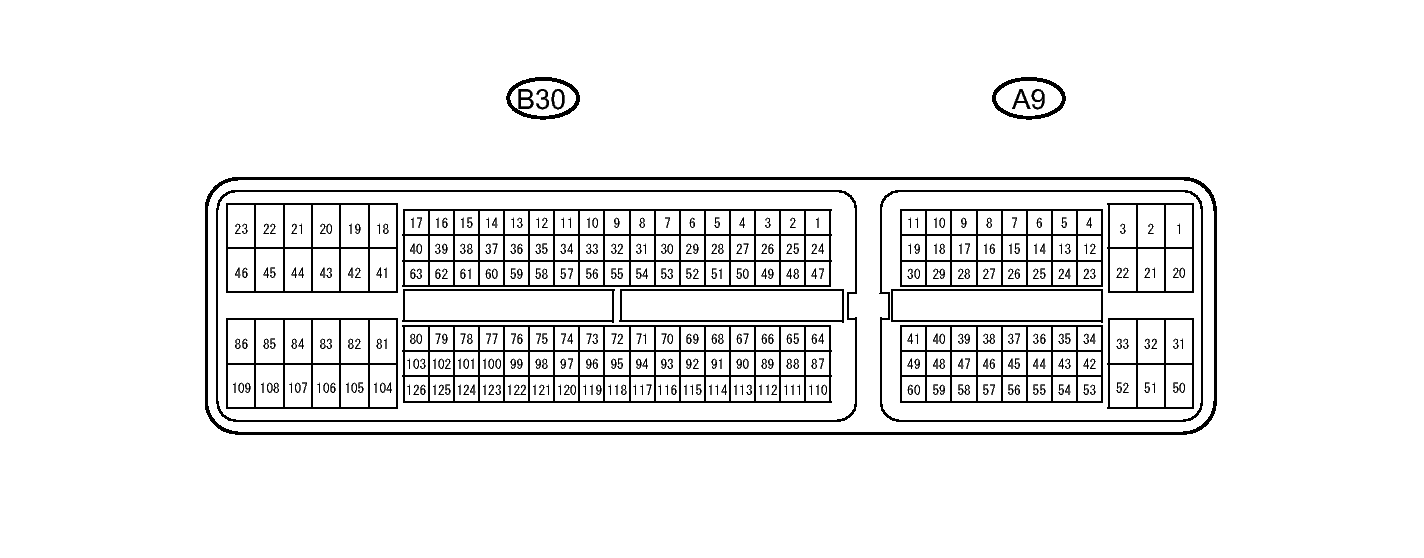

    Fig 6: A9 And B30 ECM Connector Terminal Identification
    GTY234880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A9 and B30 ECM connectors.
    2. Measure the voltage and resistance according to the value(s) in the table below.
      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A9-20 (BATT) - B30-104 (E1) W - BR Battery (for measuring battery voltage and for ECM memory) Always 11 to 14 V
      A9-2 (+B) - B30-104 (E1) B - BR Power source of ECM Engine switch on (IG) 11 to 14 V
      A9-1 (+B2) - B30-104 (E1) B - BR Power source of ECM Engine switch on (IG) 11 to 14 V
      A9-28 (IGSW) - B30-104 (E1) B - BR Engine switch signal Engine switch on (IG) 11 to 14 V
      B30-104 (E1) - Body ground BR - Body ground Ground Always Below 1 Ω
      B30-81 (E02) - Body ground W-B - Body ground Ground Always Below 1 Ω
      B30-46 (E04) - Body ground W-B - Body ground Ground Always Below 1 Ω
      B30-109 (E01) - Body ground W-B - Body ground Ground Always Below 1 Ω

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the A9 and B30 ECM connectors.
    4. Measure the voltage according to the value(s) in the table below.
      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A9-48 (STA) - B30-104 (E1) LG - BR Starter relay operation signal Cranking 5.5 V or more
      B30-2 (ACCR) - B30-104 (E1) LG - BR ACC relay cut signal (output) Engine switch on (IG) → Cranking 11 to 14 V → Below 1 V
      A9-26 (TACH) - B30-104 (E1) GR - BR Engine speed signal (output) Idling Pulse generation
      (see waveform 1)
      B30-17 (STAR) - B30-104 (E1) W - BR Starter relay drive signal Cranking 11 to 14 V

      If the result is not as specified, the ECM may have a malfunction.

    5. Using an oscilloscope, check waveform 1.
      1. Waveform 1 (Reference)
        Fig 7: Identifying Waveform 1
        GTY102580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Item Content
        Terminal No. (Symbol) A9-26 (TACH) - B30-104 (E1)
        Tool Setting 5 V/DIV., 10 msec./DIV.
        Condition Engine idling

        HINT:

        As the engine speed increases, the wavelength shortens.

  4. CHECK STEERING LOCK ECU

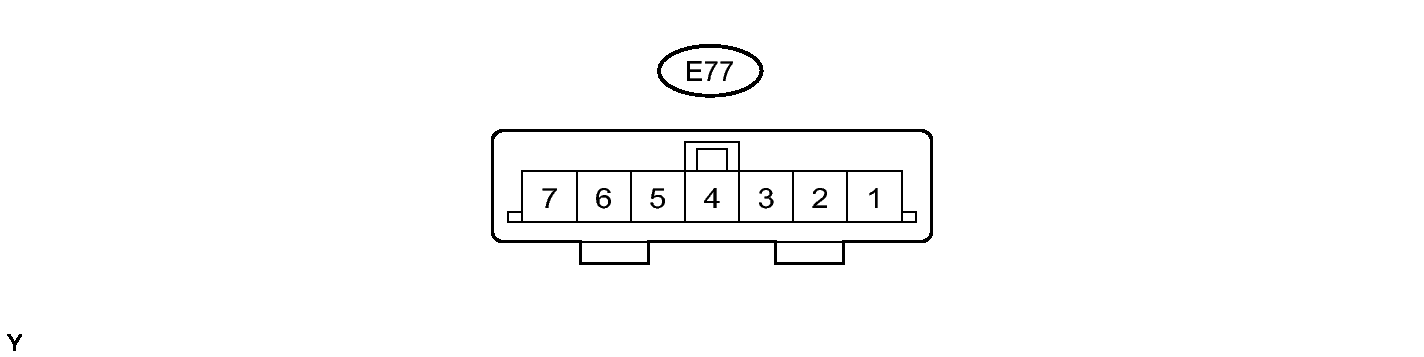

    Fig 8: Steering Lock ECU Connector Terminal Identification
    GTY226629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E77 ECU connector.
    2. Measure the voltage and resistance according to the value(s) in the table below.
      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      E77-7 (B) - Body ground L - Body ground +B power supply Always 11 to 14 V
      E77-6 (IG2) - Body ground B - Body ground Ignition power supply Engine switch on (IG) 11 to 14 V
      E77-6 (IG2) - Body ground B - Body ground Ignition power supply Engine switch off Below 1 V
      E77-1 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω
      E77-2 (SGND) - Body ground BR - Body ground Ground Always Below 1 Ω
      • If the result is not as specified, there may be a malfunction on the wire harness side.
    3. Reconnect the E77 ECU connector.
    4. Measure the voltage according to the value(s) in the table below.
      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      E77-4 (SLP1) - E77-1 (GND) G - W-B Steering lock actuator position signal Steering lock locked 11 to 14 V
      E77-4 (SLP1) - E77-1 (GND) G - W-B Steering lock actuator position signal Steering lock released Below 1 V
      • If the result is not as specified, the ECU may have a malfunction.
