Front Passenger Airbag Assembly: Installation: Installation

WARNING:

Be sure to read the precautionary notices concerning the SRS airbag system before servicing it.Refer to PRECAUTION .

INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
1. Attach the rear side hook of the front passenger airbag to the rear side airbag door.
2. Bend the front side hook so that it attaches to the front side airbag door.
3. Install the instrument panel upper.Refer to INSTALLATION - Step 1 .
4. Install the 2 bolts to the reinforcement.
  Torque: 20 N*m (203 kgf*cm, 14 ft.*lbf)
5. Connect the connector to the airbag.

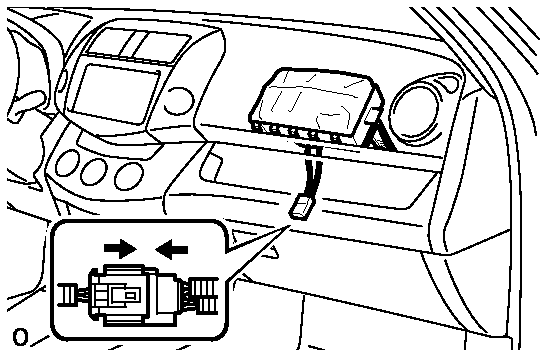

  Fig 1: Connecting Connector To Airbag
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  When handling the airbag connector, do not damage the airbag wire harness.
6. Attach the wire harness clamp to the bracket.
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY .Refer to INSTALLATION - Step 1
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK SRS WARNING LIGHT
1. Check the SRS warning light.Refer to PROBLEM SYMPTOMS TABLE .
