ID Code Box Power Source Circuit: Procedure

  1. INSPECT FUSE (ECU-B)
    1. Remove the ECU-B2 fuse from the engine room No. 2 relay block.
    2. Measure the resistance of the fuse.

      Standard Resistance

      Below 1 Ω

    NG → REPLACE FUSE

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (ID CODE BOX - BATTERY AND BODY GROUND)

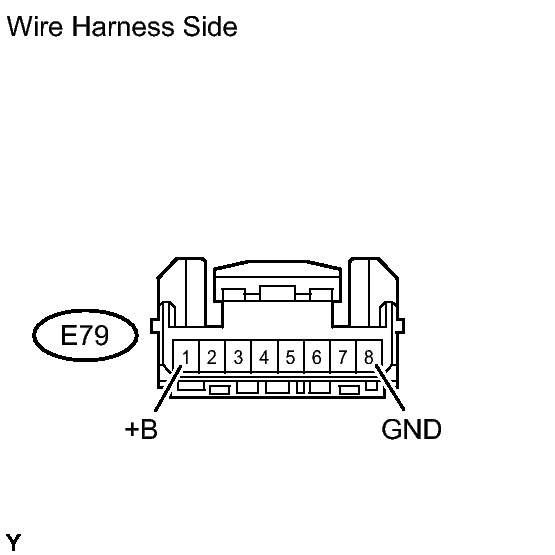

    Fig 1: Identifying E79 ID Box Connector Terminals
    GTY239002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E79 box connector.
    2. Measure the resistance and voltage of the wire harness side connector.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E79-8 (GND) - Body ground Always Below 1 Ω

      Standard Voltage

      Tester Connection Condition Specified Condition
      E79-1 (+B) - Body ground Always 11 to 14 V

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
