Driver Side Door Entry Lock Function does not Operate: Wiring Diagram

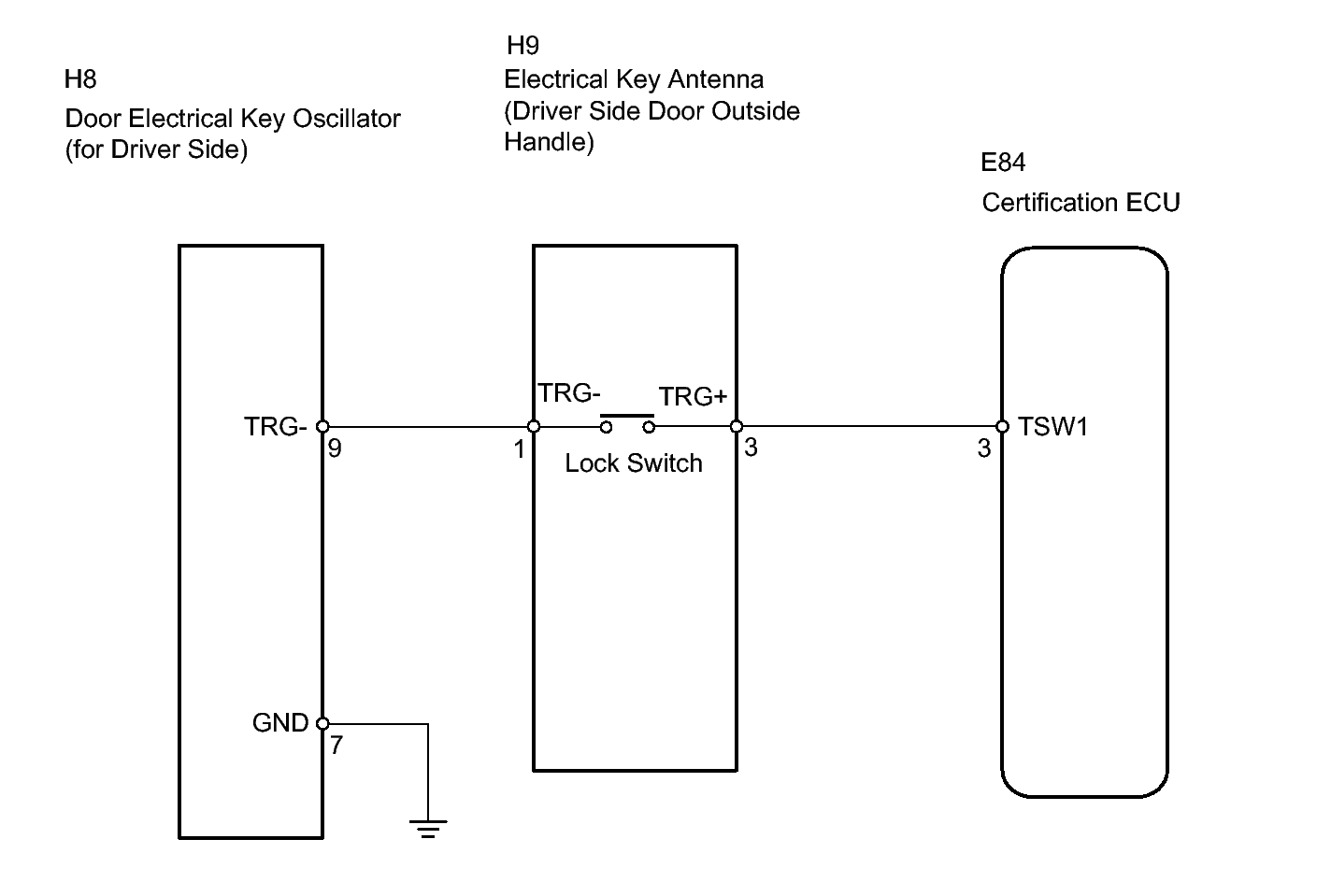

Fig 1: Driver Side Door Entry Lock Circuit Wiring Diagram
GTY333061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
