Front Passenger Side Door Entry Lock Function does not Operate
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front Passenger Side Door Entry Lock Function does not Operate: Wiring Diagram

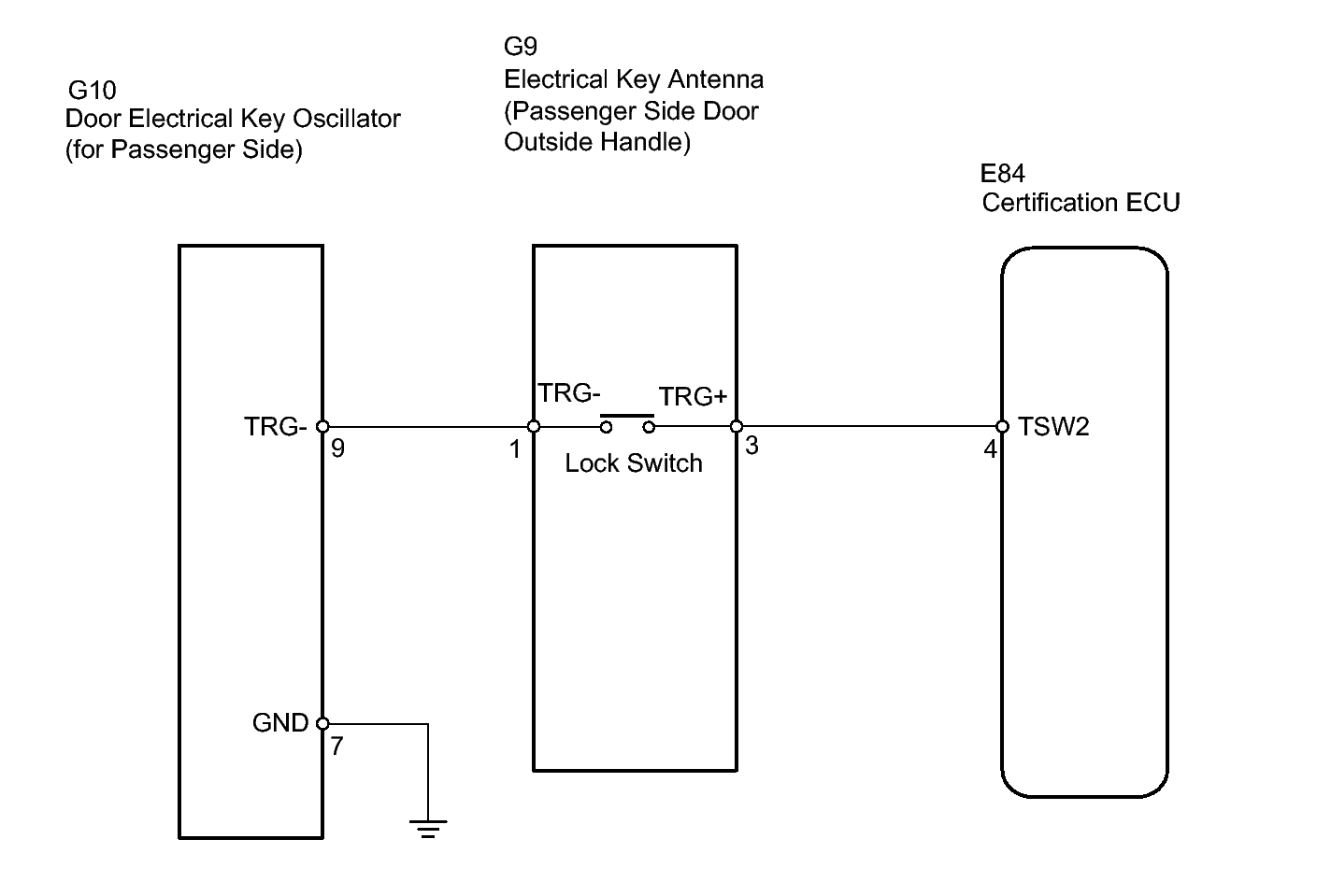

Fig 1: Front Passenger Side Door Entry Lock Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
