Only Wireless Control Function is Inoperative: Wiring Diagram

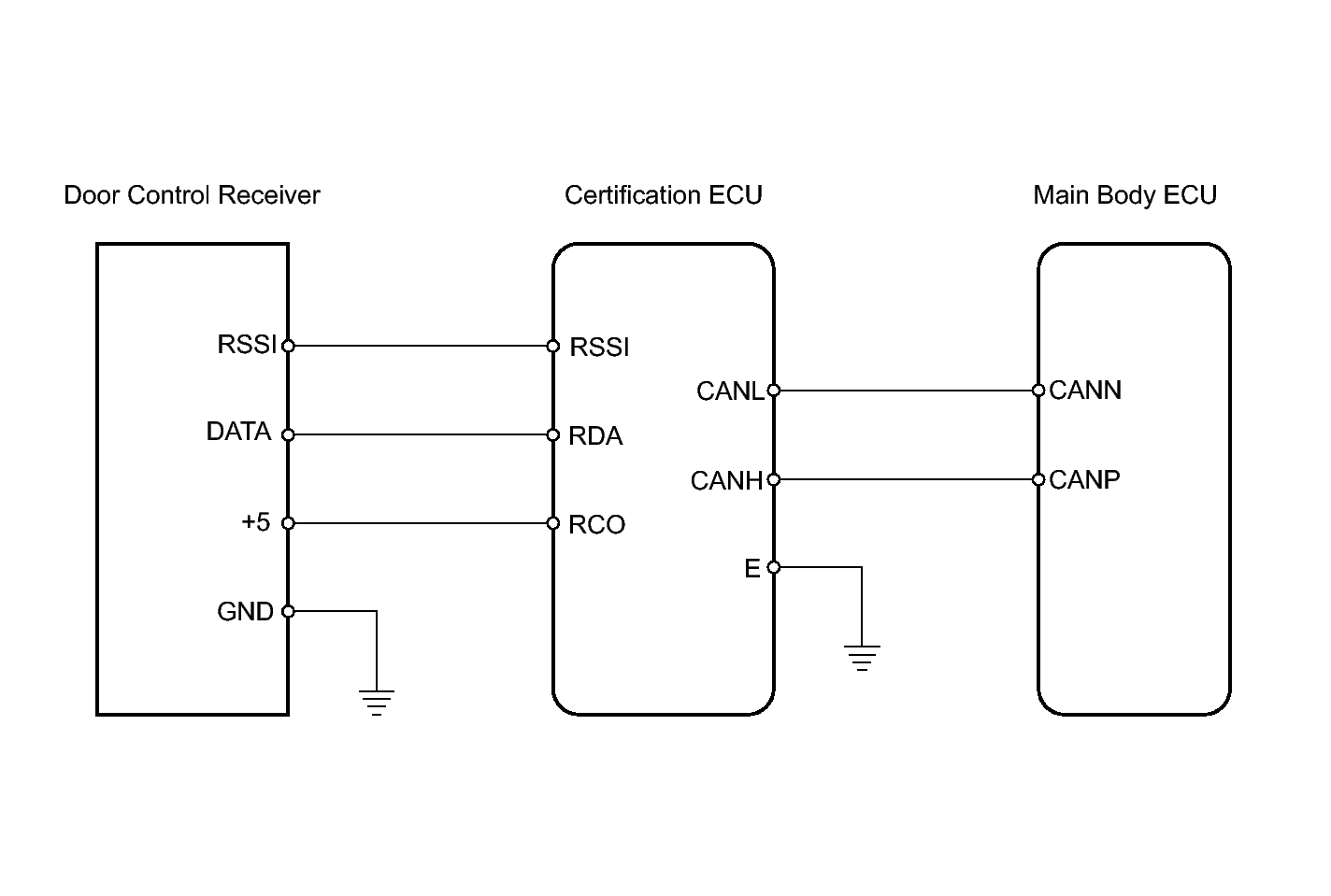

Fig 1: Door Control Receiver - Certification & Main Body ECU Wiring Diagram
GTY221034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
