Steering Angle Sensor Communication Stop Mode: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) battery terminal before measuring the resistance of the main wire and the branch wire.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    NEXT: Go to next step

  2. CHECK FOR OPEN IN CAN BUS WIRE (STEERING ANGLE SENSOR BRANCH WIRE)
    1. Disconnect the E11 steering angle sensor connector.

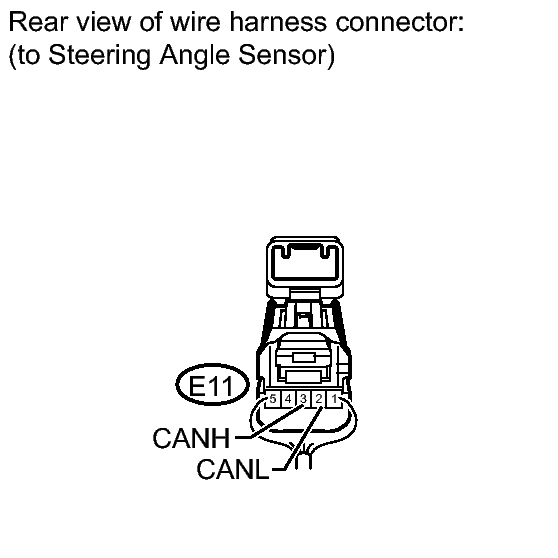

      Fig 1: Checking Open In CAN Bus Wire (Steering Angle Sensor Branch Wire)
      GTY245420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E11-3 (CANH) - E11-2 (CANL) Ignition switch off 54 to 69 Ω

    NG → REPAIR OR REPLACE STEERING ANGLE SENSOR BRANCH WIRE OR CONNECTOR (CANH, CANL)

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (STEERING ANGLE SENSOR - BATTERY AND BODY GROUND)
    1. Connect the cable to the negative (-) battery terminal.
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    2. Disconnect the E11 steering angle sensor connector.

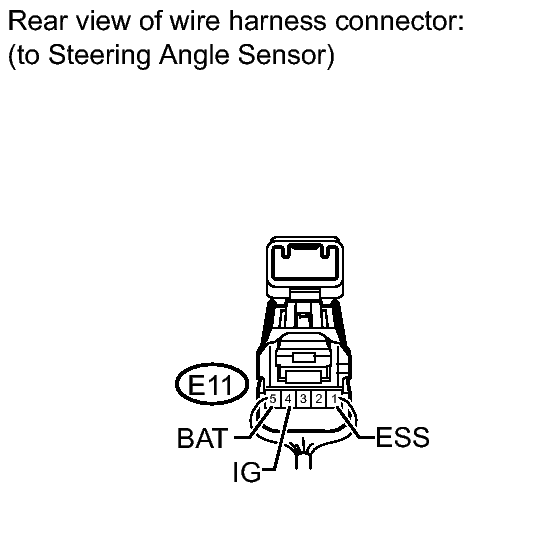

      Fig 2: Checking Harness & Connector (Steering Angle Sensor - Battery And Body Ground)
      GTY222812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E11-1 (ESS) - Body ground Always Below 1 Ω
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      E11-5 (BAT) - Body ground Always 11 to 14 V
      E11-4 (IG) - Body ground Ignition switch ON 11 to 14 V

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   4

  4. REPLACE STEERING ANGLE SENSOR. Refer to  REMOVAL
