Radio Receiver Power Source Circuit: Procedure

CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - BATTERY AND BODY GROUND)

Disconnect the E47 radio receiver assembly connector.

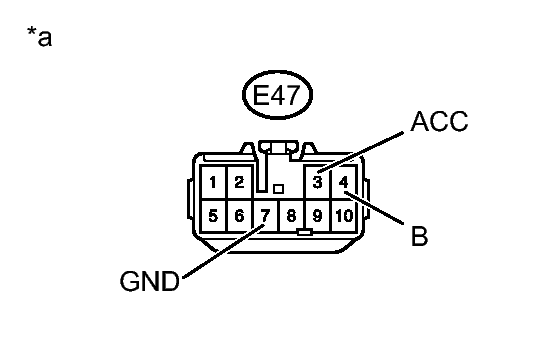

Fig 1: Checking Harness & Connector (Radio Receiver Assembly - Battery & Body Ground)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
E47-7 (GND) - Body ground	Always	Below 1 Ω

Measure the voltage according to the value(s) in the table below.

Standard Voltage

Tester Connection	Condition	Specified Condition
E47-4 (B) - Body ground	Always	11 to 14 V
E47-3 (ACC) - Body ground	Ignition switch ACC	11 to 14 V

TEXT IN ILLUSTRATION

*a	Front view of wire harness connector (to Radio Receiver Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step 2

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
