Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Procedure

1. Disconnect the G3 switch connector.

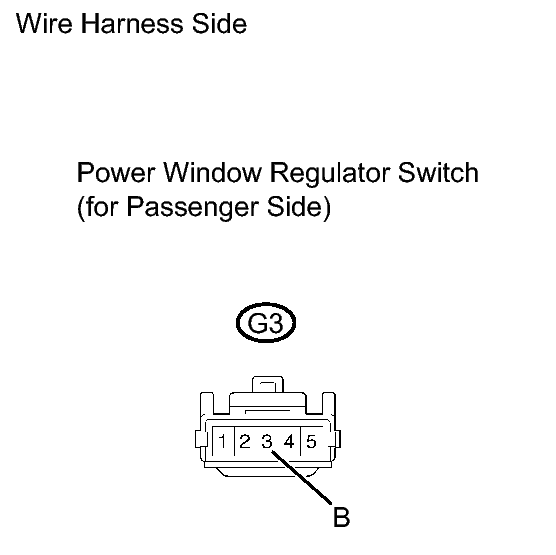

   Fig 1: Identifying G3 Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch ON.
3. Measure the voltage of the wire harness side connector.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   G3-3 (B) - Body ground	Ignition switch ON	10 to 14 V

NG → INSPECT FUSE AND REPLACE IT IF NECESSARY, OR INSPECT AND REPAIR WIRE HARNESS AND CONNECTOR

OK: Go to next step

1. Remove the power window regulator switch.

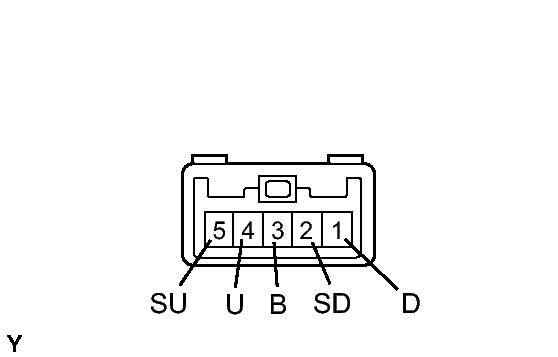

   Fig 2: Identifying Power Window Regulator Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance of the switch when the switch is operated.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   1 (D) - 2 (SD) 3 (B) - 4 (U)	UP	Below 1 Ω
   4 (U) - 5 (SU) 1 (D) - 2 (SD)	OFF	Below 1 Ω
   1 (D) - 3 (B) 4 (U) - 5 (SU)	DOWN	Below 1 Ω

NG → REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Front Passenger Side)

OK: Go to next step

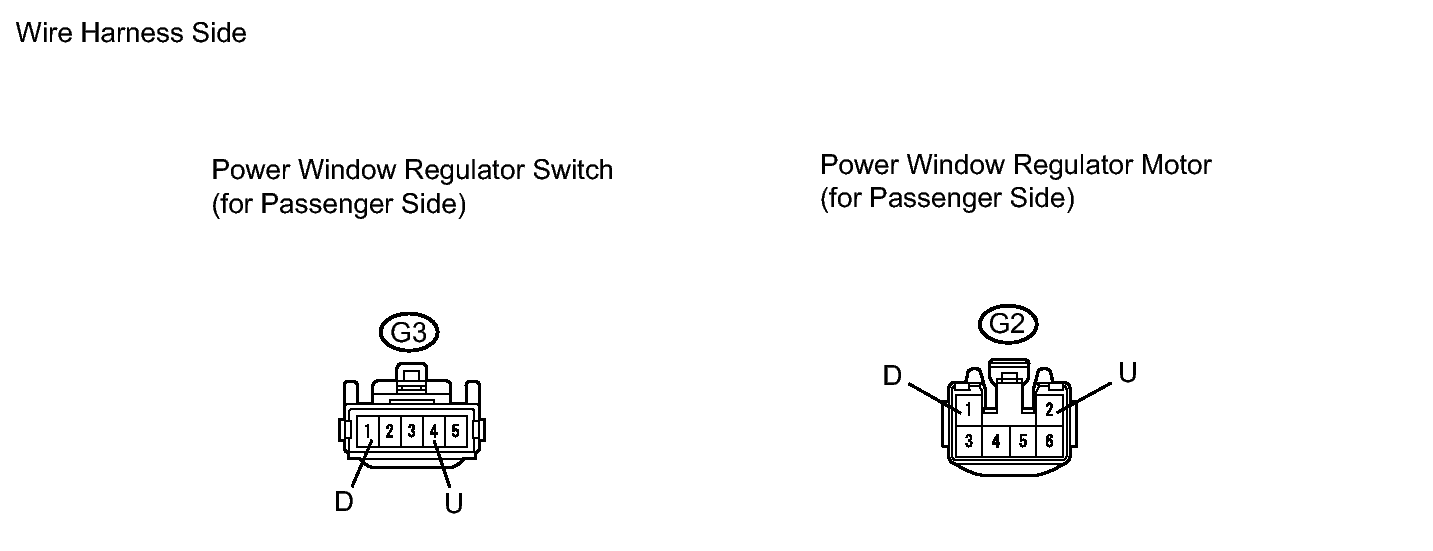

Fig 3: Identifying Wire Harness (Regulator Switch - Regulator Motor) Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the G3 switch connector.
2. Disconnect the G2 motor connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   Tester Connection	Specified Condition
   G3-4 (U) - G2-2 (U)	Below 1 Ω
   G3-1 (D) - G2-1 (D)	Below 1 Ω
   G3-4 (U) or G2-2 (U) - Body ground	10 kΩ or higher
   G3-1 (D) or G2-1 (D) - Body ground	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

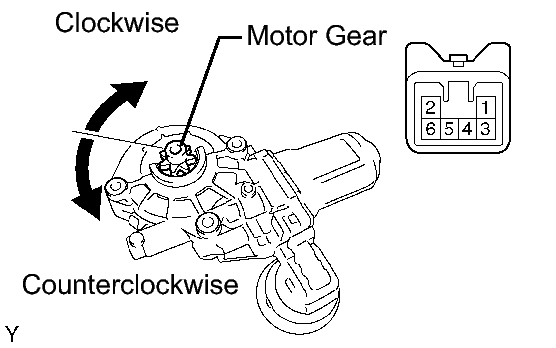

Fig 4: Inspecting Power Window Regulator Motor Assembly (For Front Passenger Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the power window regulator motor.
2. Apply the battery voltage to connector terminals 1 and 2.
   NOTE:

   Do not apply the battery voltage to any terminals except terminals 1 and 2.

3. Check that the motor gear rotates smoothly as follows.

   OK

   Measurement Condition	Specified Condition
   Battery positive (+) → 1 Battery negative (-) → 2	Motor gear rotates clockwise
   Battery positive (+) → 2 Battery negative (-) → 1	Motor gear rotates counterclockwise

NG → REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Side)

OK: Go to next step

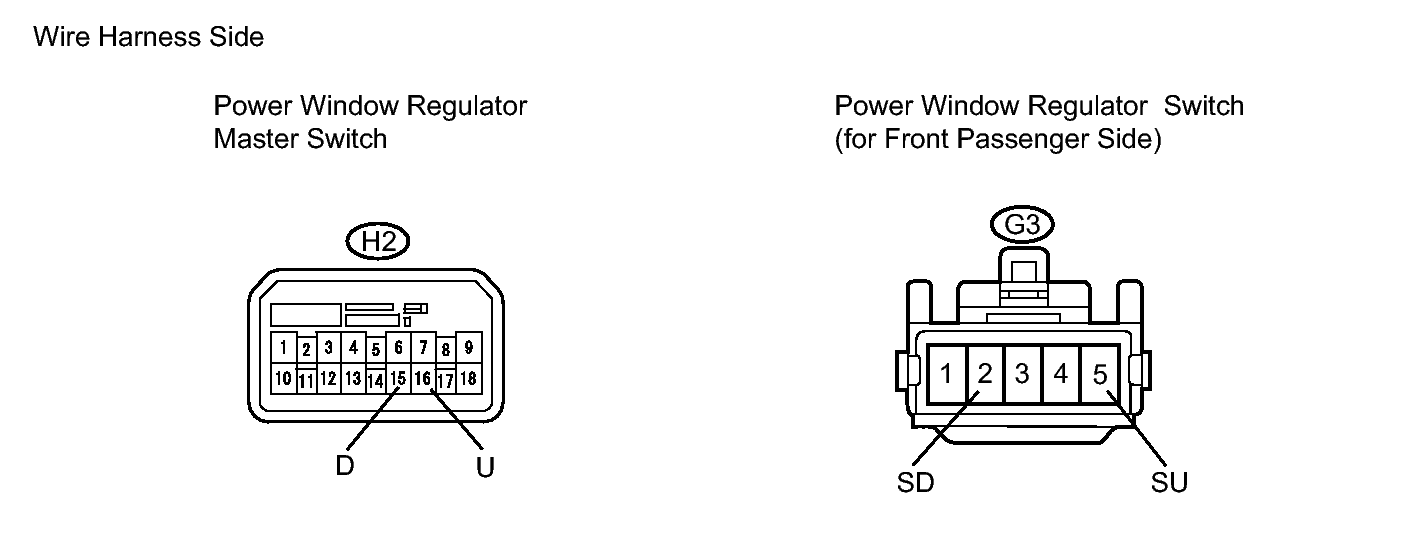

Fig 5: Identifying H2 Master Switch - G3 Regulator Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the H2 switch connector.
2. Disconnect the G3 switch connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   Tester Connection	Specified Condition
   H2-16 (U) - G3-5 (SU)	Below 1Ω
   H2-15 (D) - G3-2 (SD)	Below 1Ω
   H2-16 (U) or G3-5 (SU) - Body ground	10 kΩ or higher
   H2-15 (D) or G3-2 (SD) - Body ground	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK → REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
