Key-off Operation Function Operates even if Operating Conditions are not Satisfied: Procedure

1. Use the Data List to check the function of the power window regulator master switch.
   1. Connect Techstream to the DLC3.
   2. Turn the ignition switch ON and turn the tester on.
   3. Read the indication displayed on the tester.
      MAIN BODY



      Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
      Communication D-Door Motor	Connection status between power window regulator motor assembly (driver side) and main body ECU / OK or Stop	OK: Connection Stop: No connection	-

      OK

      OK is displayed on Techstream screen.

NG → GO TO ENGINE IMMOBILISER SYSTEM (B2785)

OK: Go to next step

1. Check the power window operation function after the ignition switch is turned off.
   RESULT



   Status	Proceed to
   When power window can still be operated even after opening driver door and passenger door within approximately 45 seconds of ignition switch being turned off	A
   When power window can still be operated even after approximately 45 seconds have elapsed after ignition switch turned off	B

B → REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Side)

A: Go to next step

1. Use the Data List to check the driver side door courtesy switch signal.
   1. Connect Techstream to the DLC3.
   2. Turn the ignition switch ON and turn the tester on.
   3. Read the indication displayed on the tester.
      MAIN BODY



      Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
      D Door Courtesy SW	Driver side door courtesy switch signal / ON or OFF	ON: Driver door open OFF: Driver door closed	-
      P Door Courtesy SW	Front passenger side door courtesy switch signal / ON or OFF	ON: Front passenger door open OFF: Front passenger door closed	-

   OK

   OK is displayed on Techstream screen.

OK → REPLACE INSTRUMENT PANEL JUNCTION BLOCK (MAIN BODY ECU)

NG: Go to next step

1. Measure the resistance of the switch.

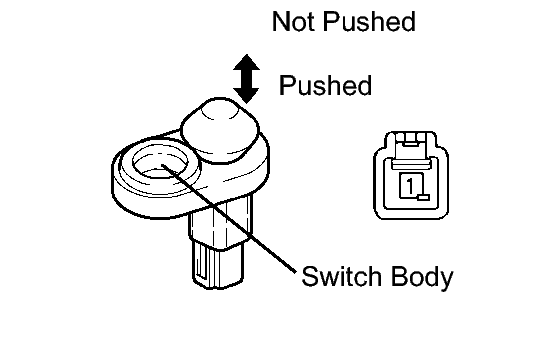

   Fig 1: Inspecting Front Door Courtesy Light Switch Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   1 - Switch body	Pushed	10 kΩ or higher
   1 - Switch body	Not pushed	Below 1 Ω

NG → REPLACE DOOR COURTESY LIGHT SWITCH ASSEMBLY

OK: Go to next step

1. Measure the voltage without removing the IA, IC junction block connector.

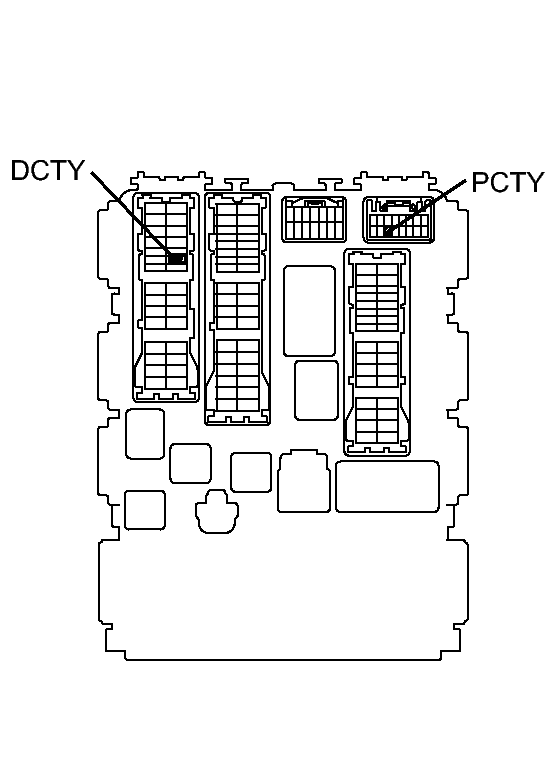

   Fig 2: Identifying Instrument Panel Junction Block Fuses

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard voltage

   for Driver side

   for Passenger side

   Tester Connection	Driver Door Condition	Specified Condition
   IA-21 (DCTY) - Body ground	Fully closed	10 to 14 V
   IA-21 (DCTY) - Body ground	Open	Below 1 V

   Tester Connection	Driver Door Condition	Specified Condition
   IC-14 (PCTY) - Body ground	Fully closed	10 to 14 V
   IC-14 (PCTY) - Body ground	Open	Below 1 V

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK → REPLACE INSTRUMENT PANEL JUNCTION BLOCK (MAIN BODY ECU)
