DTC U0073: Control Module Communication Bus OFF; DTC U0100: Lost Communication with ECM / PCM; DTC U0123: Lost Communication with Yaw Rate Sensor Module; DTC U0124: Lost Communication with Lateral Acceleration Sensor Module; DTC U0126: Lost Communication with Steering Angle Sensor Module: Wiring Diagram

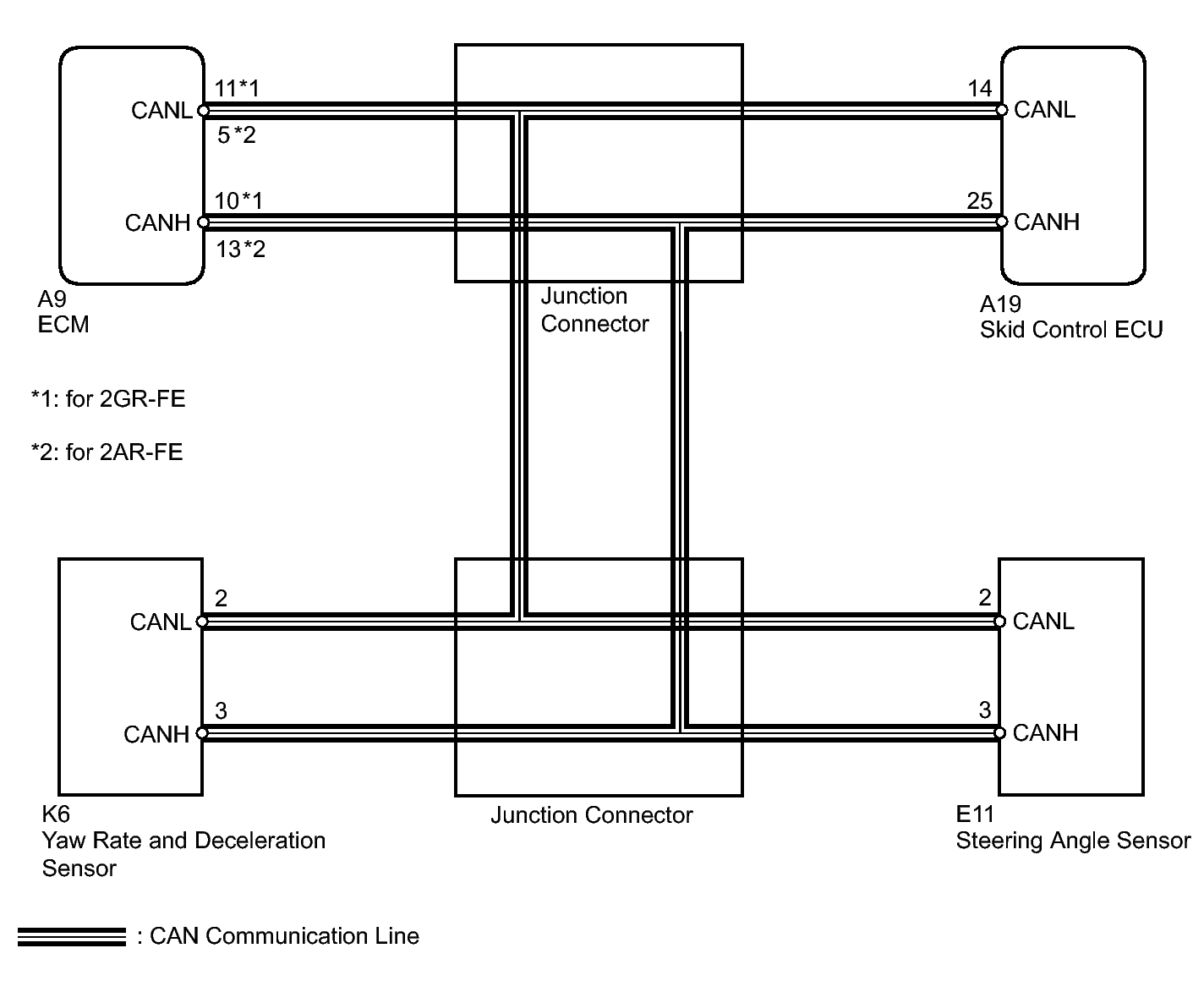

Fig 1: Steering Angle Sensor Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
