Confirmation Driving Pattern
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Clear the DTCs.
- Enter the following menus: Powertrain / Engine and ECT / Data List / Coolant Temp.
- Check that the coolant temperature is 60°C (140°F) or higher.

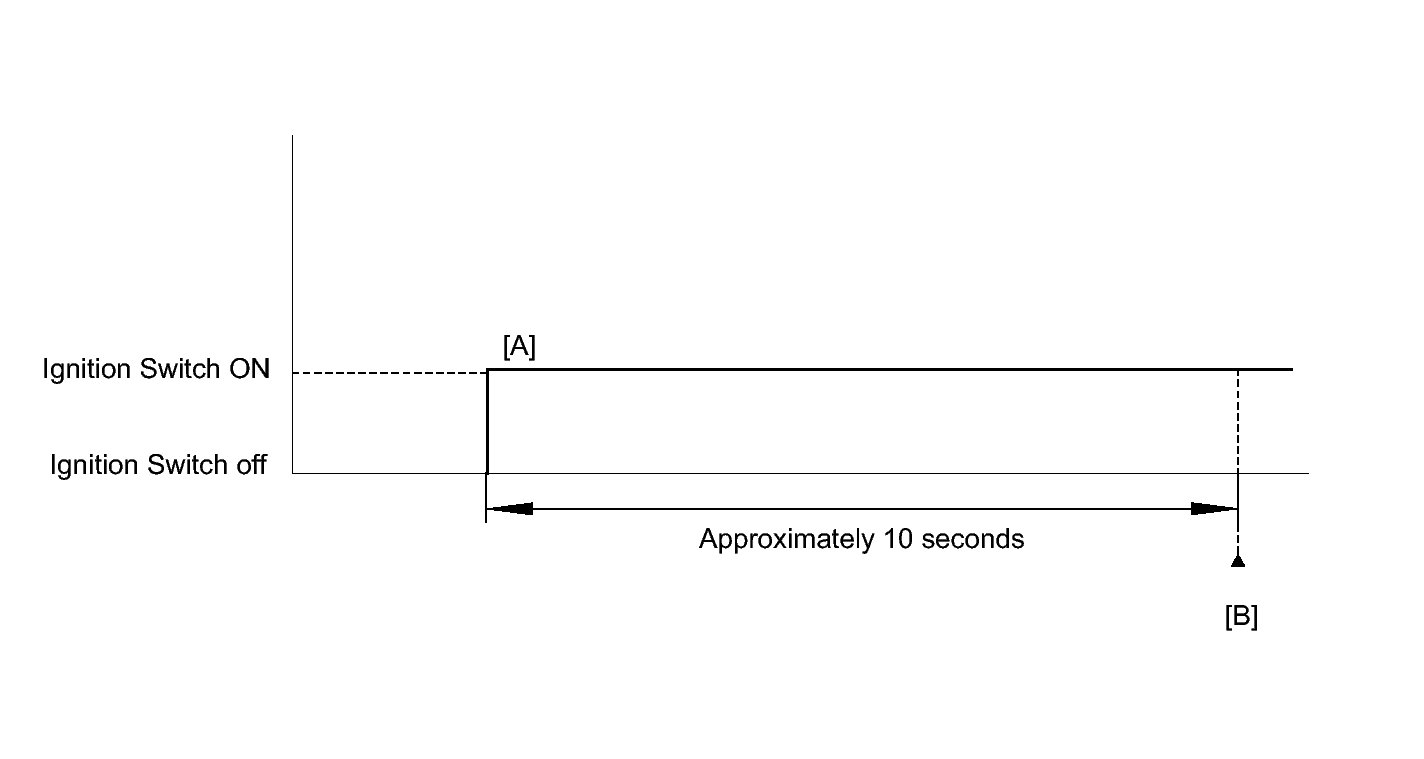

- Wait approximately 10 seconds [A].
- Enter the following menus: Powertrain / Engine and ECT / Utility / All readiness.
- Input the DTC: P2009 or P2010.
- Check the DTC judgment result [B].
Tester Display Description NORMAL - DTC judgment completed
- System normal
ABNORMAL - DTC judgment completed
- System abnormal
INCOMPLETE - DTC judgment not completed
- Perform driving pattern after confirming DTC enabling conditions
N/A - Unable to perform DTC judgment
- Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit
HINT:
If the judgment result shows ABNORMAL, the system has a malfunction.
- If the test result is N/A, enter the following menus: Powertrain / Engine and ECT / Trouble Code / Pending.
- Read Pending DTCs.
HINT:
If a pending DTC is output, the system is malfunctioning.
- If the test result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and check for permanent DTCs.Refer to DTC CHECK / CLEAR
.
HINT:
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
